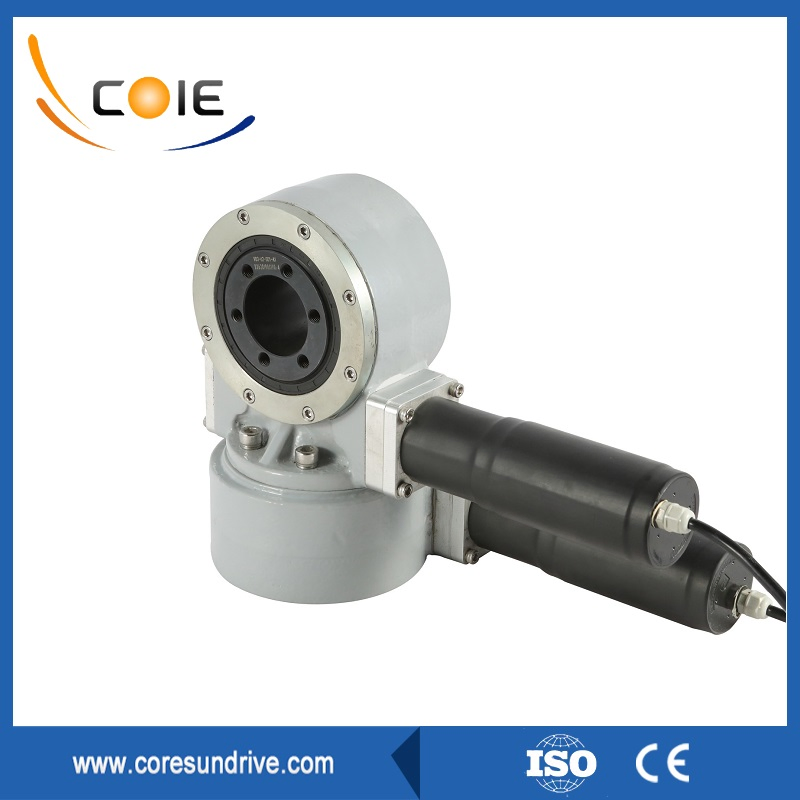

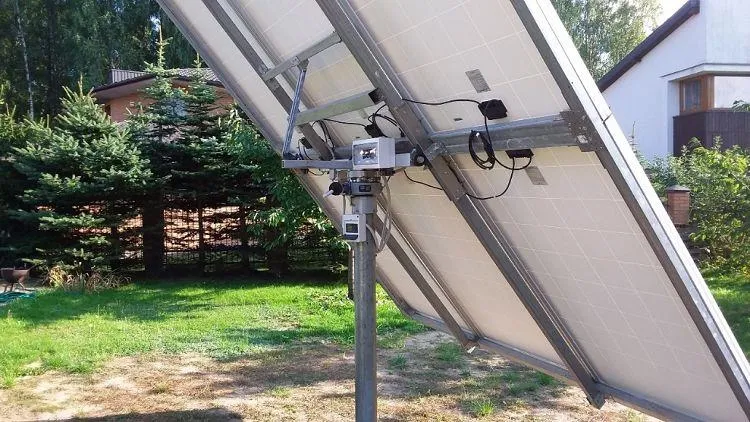

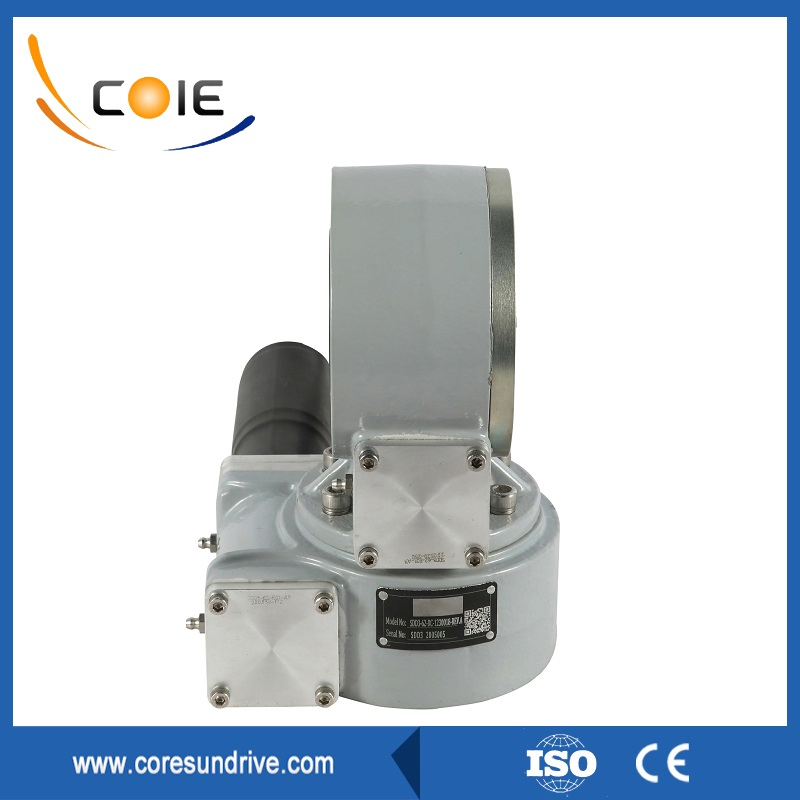

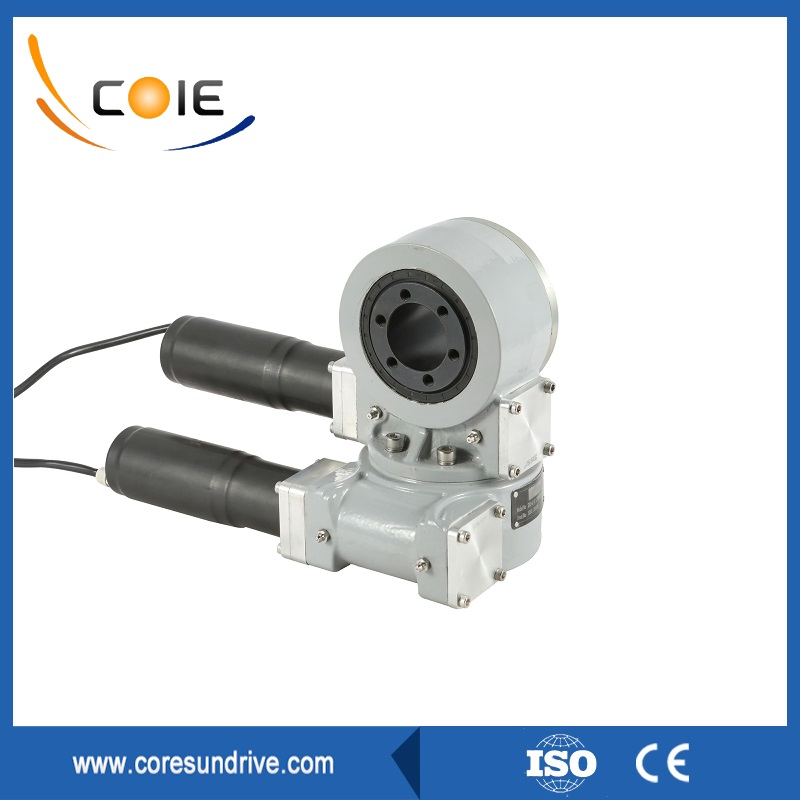

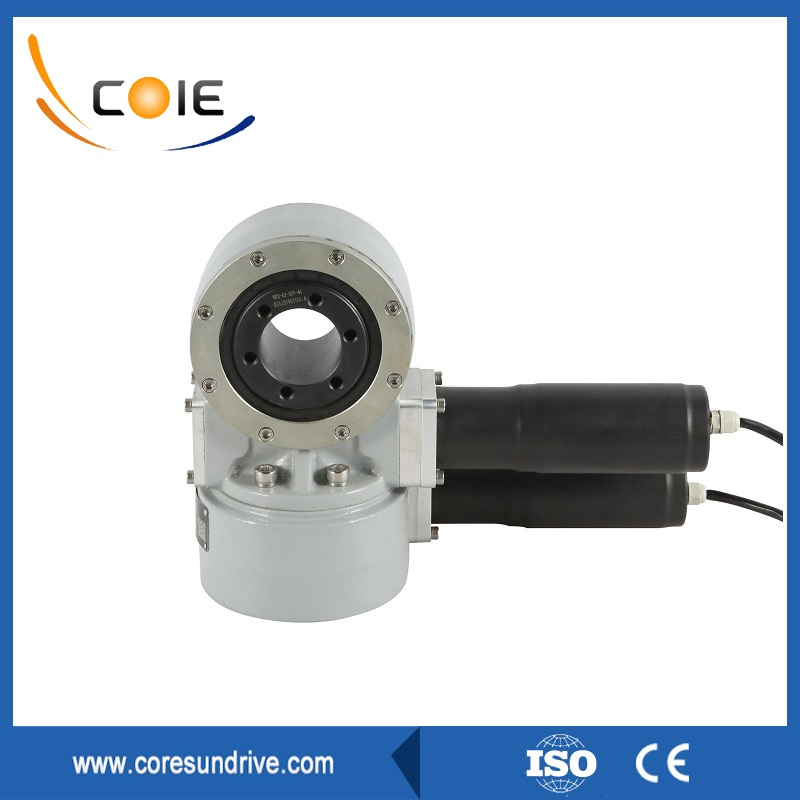

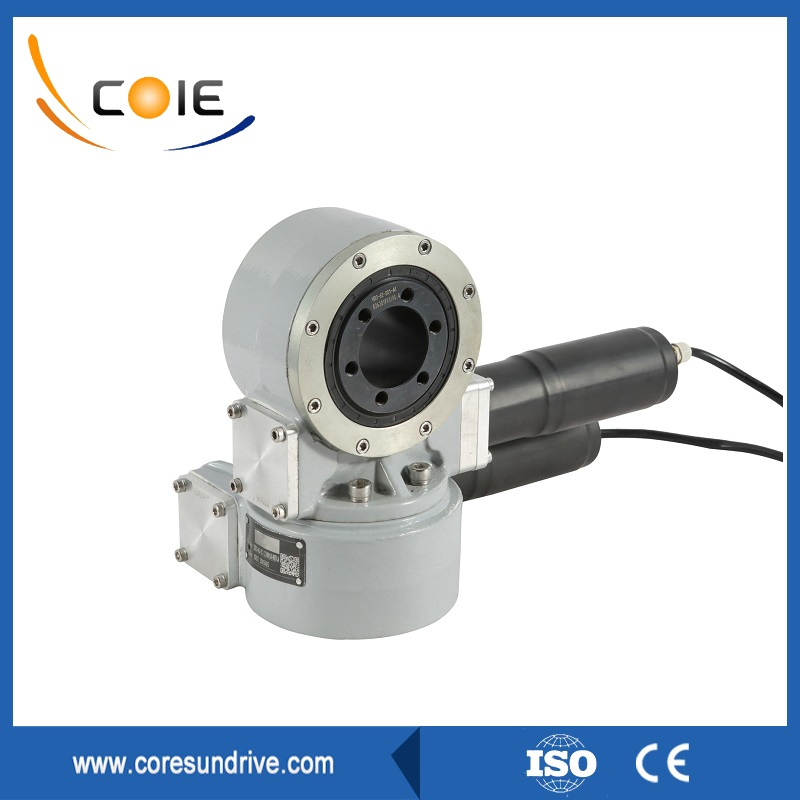

SVH3 dual axis slewing drive slewing bearing is available to 3-10 square meter solar tracker system.
Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear. The rotation of the horizontal screw turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases.
| Model | SVH3 | Type | Dual Axis |
| IP Class | IP65 | Output Torque | 446N.m |
| Tilting Moment Torque | 1100N.m | Holding Torque | 2000N.m |
| Mounting Bolts | M10 | Output Speed | 1rpm |
| Gear Ratio | 62:1 | Efficiency | 40% |
The slewing drive is a new type of slewing product, usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments.
1. Manufacturing standard according to machinery standard JB/T2300-2011.
2. Efficient Quality Management Systems (QMS) of ISO 9001:2015.
3. Advanced testing equipment including metallographic testing for raw material quality.
4. 5-year warranty with strong after-sales support.
5. CE certificate for quality guarantee.

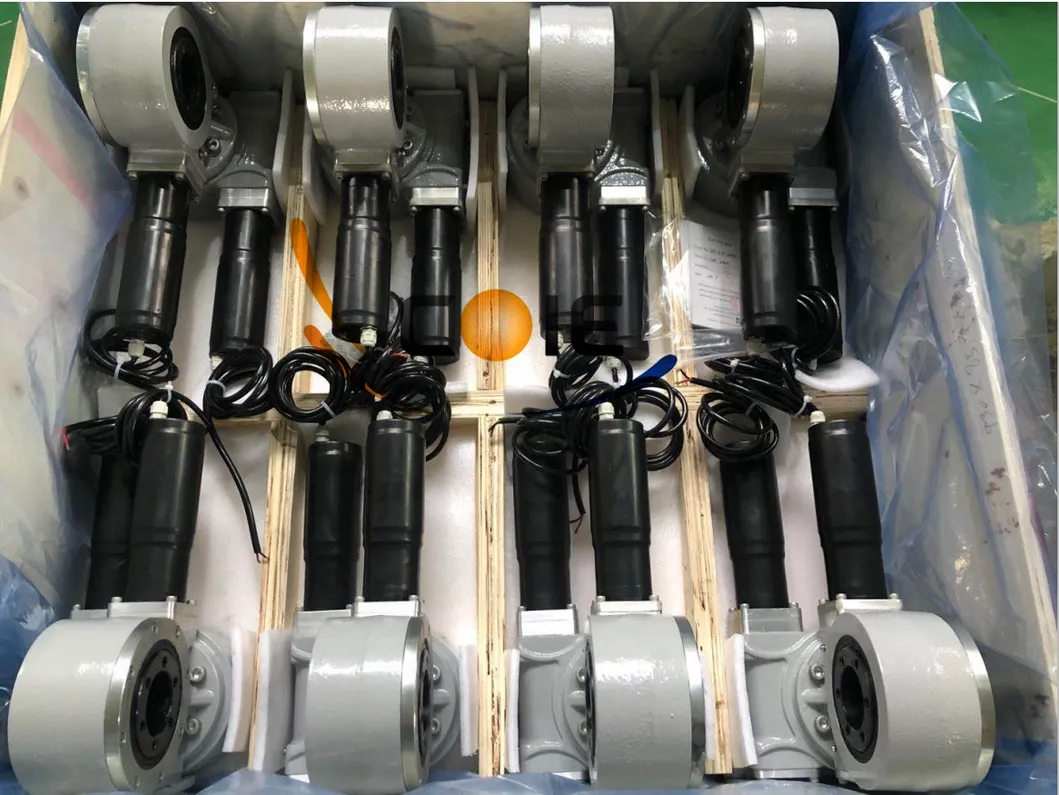

Dual Axis SVH3 Slewing Drive Production

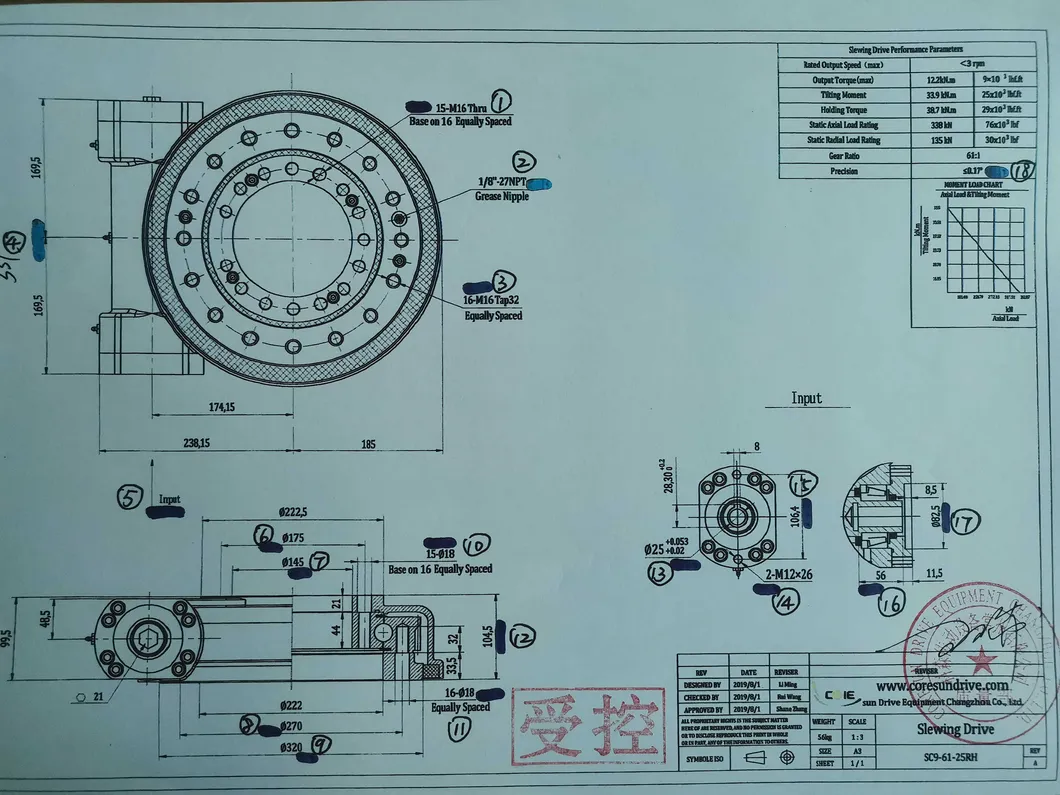

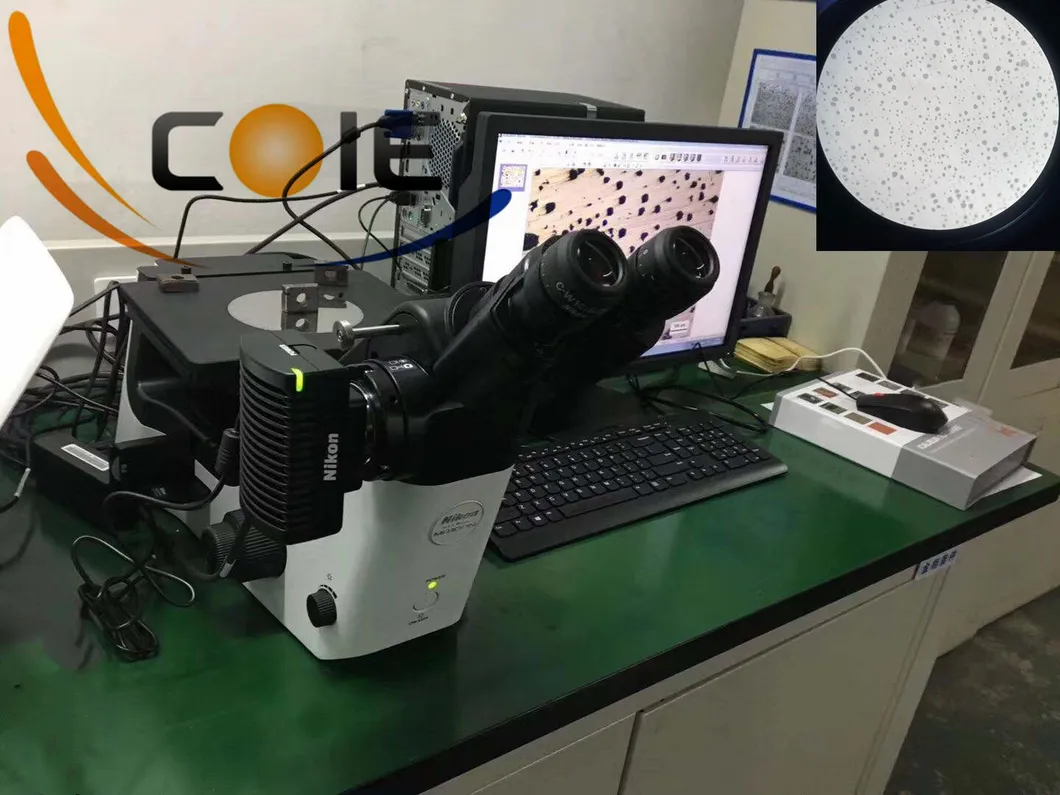

Metallographic Testing & Quality Inspection
Certification of CE, ISO
