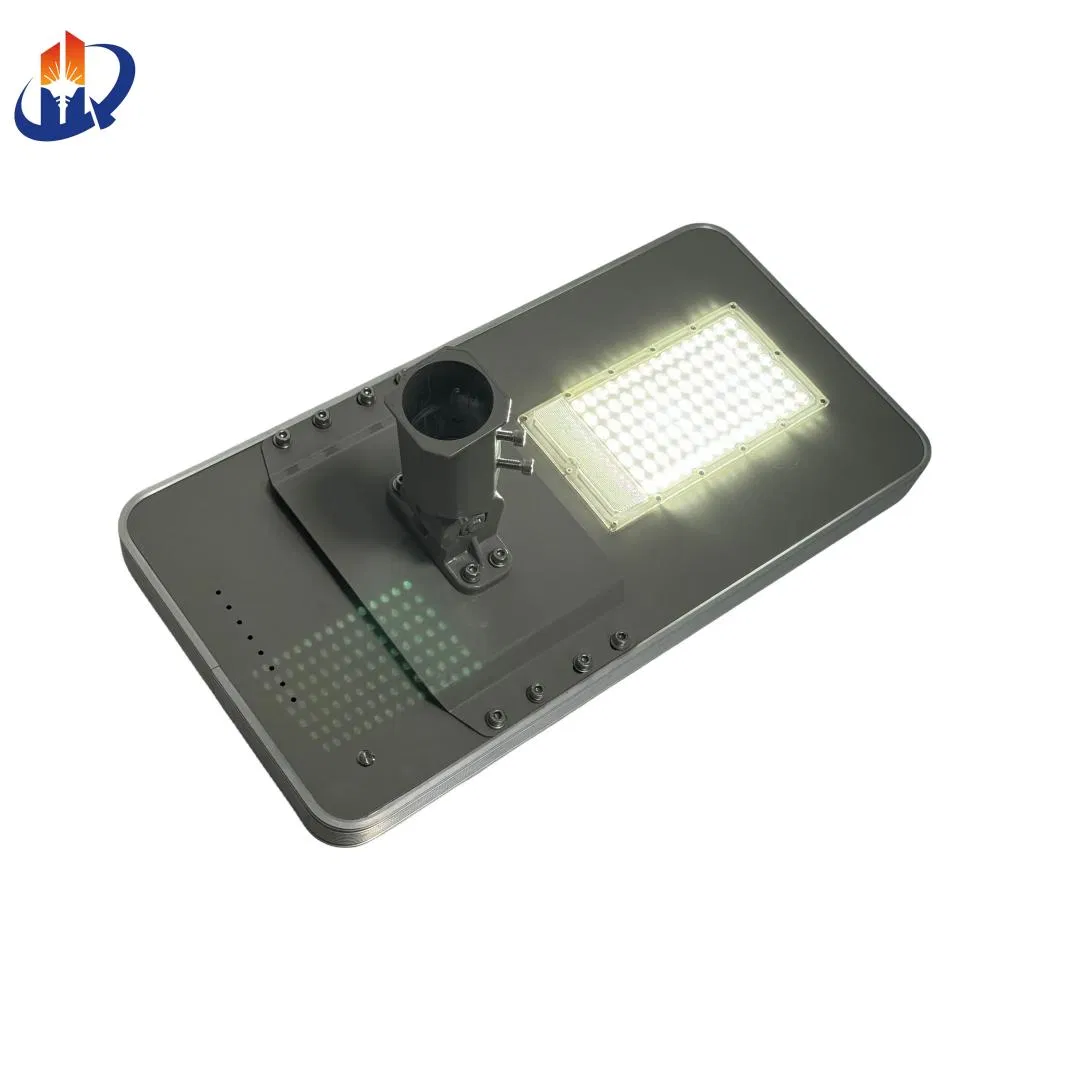

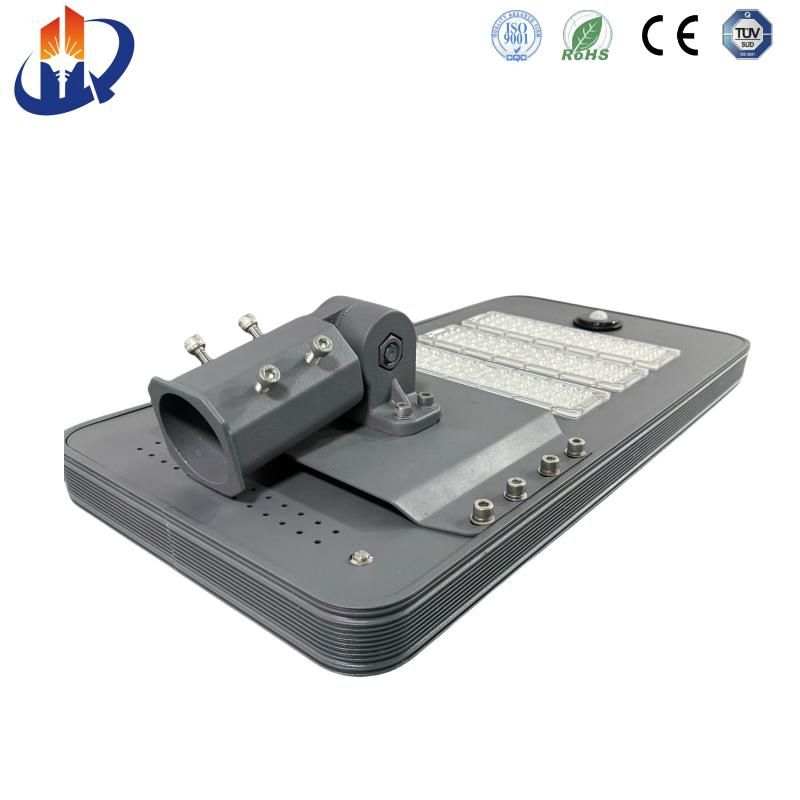

IP67 Aluminum Alloy Aluminum Alloy Solar Cell LED Light System

Customization: Available
Power Supply: Solar
Color Temperature: 2700K-6000K Customizable

Product Description

Basic Specifications

Model NO.XYD-0155
MaterialAluminum/Stainless Steel/Galvanized
Power>200W
IP RatingIP67
Input Voltage18V
Warranty5 Years
Light Efficiency150-180lm/W
Working Temp-30~+70°C
CertificationCCC, CE, RoHS, ISO9001, ISO14001
ApplicationSquare, Highway, Garden, Parking Lot

Product Description

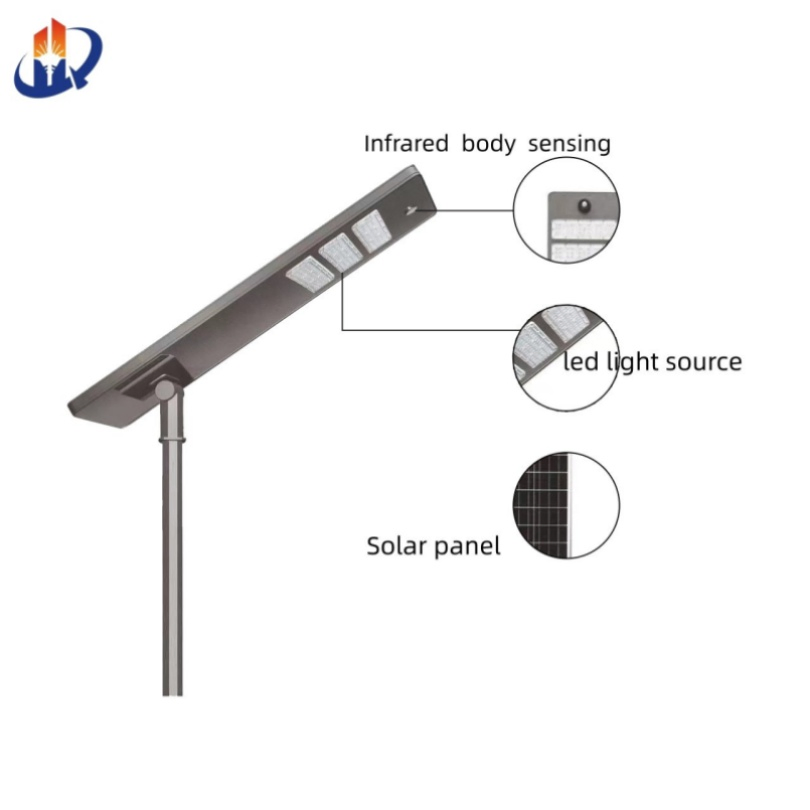

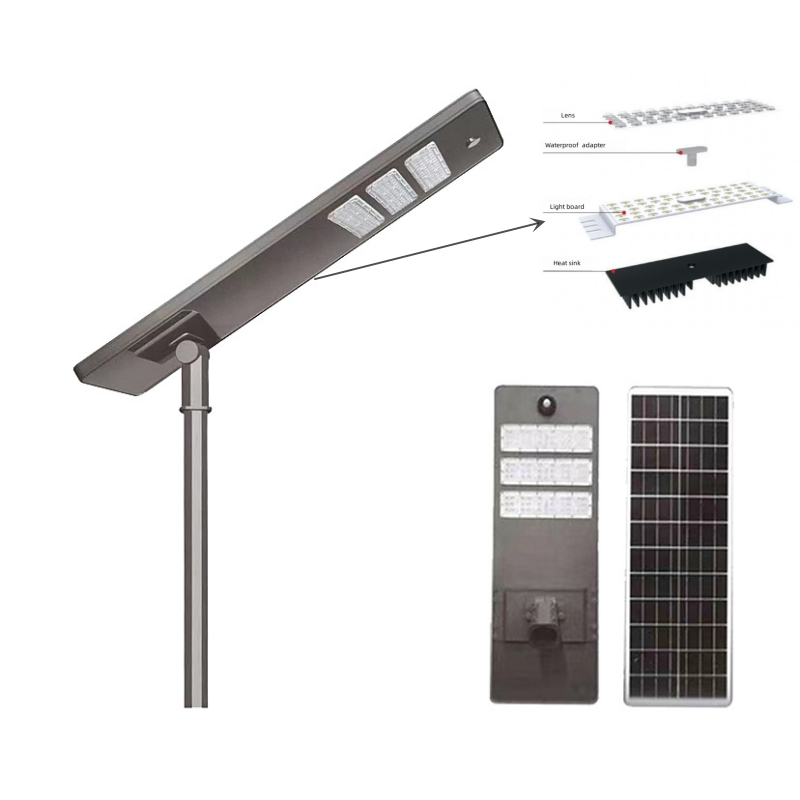

IP67 Aluminum Alloy Solar Cell LED Light System

An all-in-one integrated solar street light with aluminum alloy design. Features solar panel system, LED lighting, and energy-efficient outdoor illumination.

LED Lamp High Power LED, High Brightness, High transmittance & Density LED Lens, Die-casting Aluminum; 30-300W; 150-180lm/w; >80000hours Lifetime
Solar Panel Mono-crystalline silicon. A Quality High Efficiency 20.5%; 25 years Lifetime
Lithium Battery LifePO4 lithium battery, Built-in lamp, with charge controller, Fireproofing, Deep Cycle, Blast Protection; 5-10 years Lifetime
Work Time 8-10 hours per day, 3 days back up
Charge Time 6-7 Hours (with Enough Strong Shine)
Housing Material Aluminum Alloy

Working Principle

The integrated solar street lamp converts sunlight into electricity, storing it in a lithium battery during the day. Even on cloudy days, the solar panel collects and stores energy for night lighting. The LED lights are powered automatically at night, with a PIR sensing function for intelligent energy-saving control.

Key Features

  • Automatic power supply from solar energy
  • PIR sensing function for intelligent control
  • 100% brightness when motion is detected
  • Switches to 1/3 brightness after a delay when no motion is detected
  • Integrated design for a simple, fashionable, and practical look
  • No wiring needed for easy installation
  • Waterproof structure for safety and reliability
  • Modular design for easy maintenance and repair

Visual Display

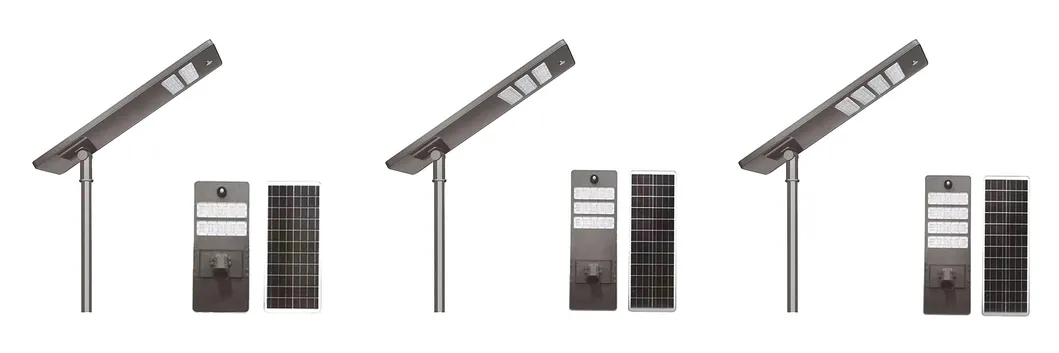

Solar Cell LED Light System

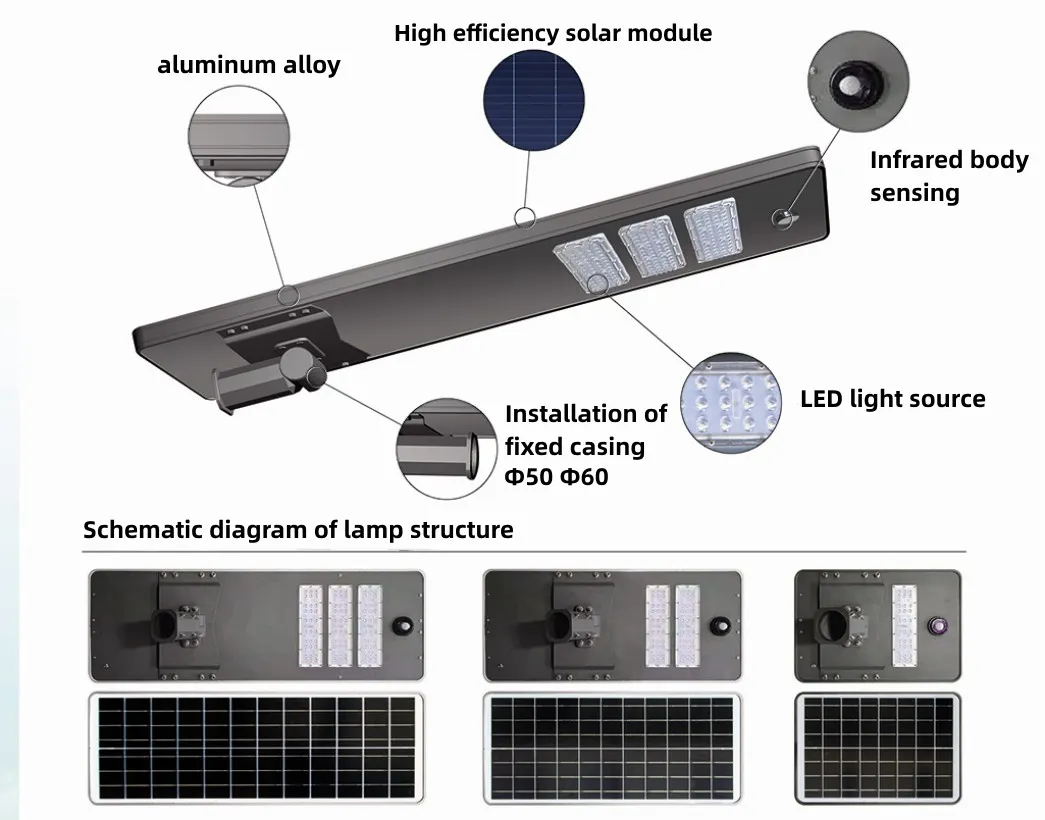

Technical Specs Display
Product Structure

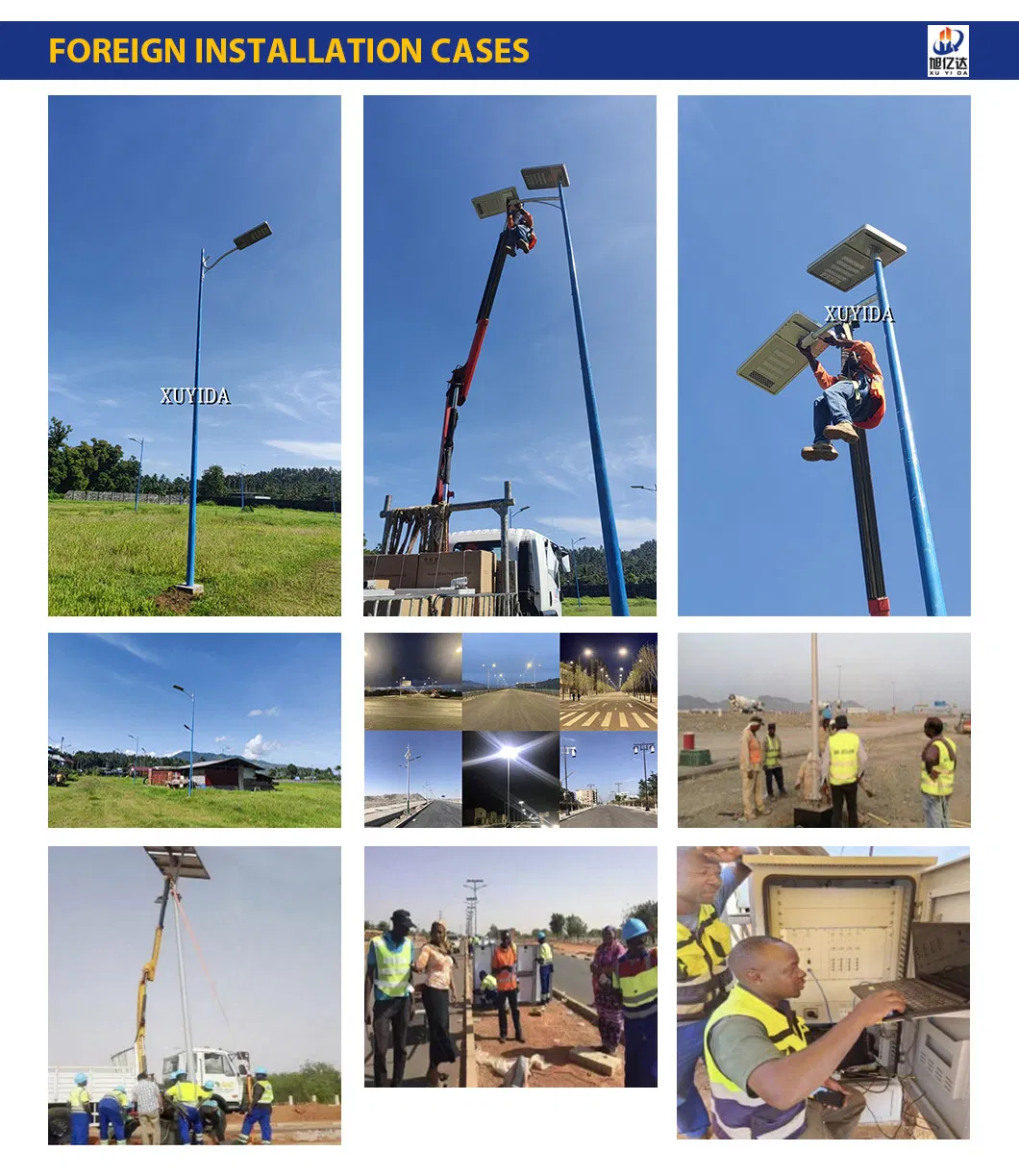

Installation View
Application Scene
Night View
Details
Series Products

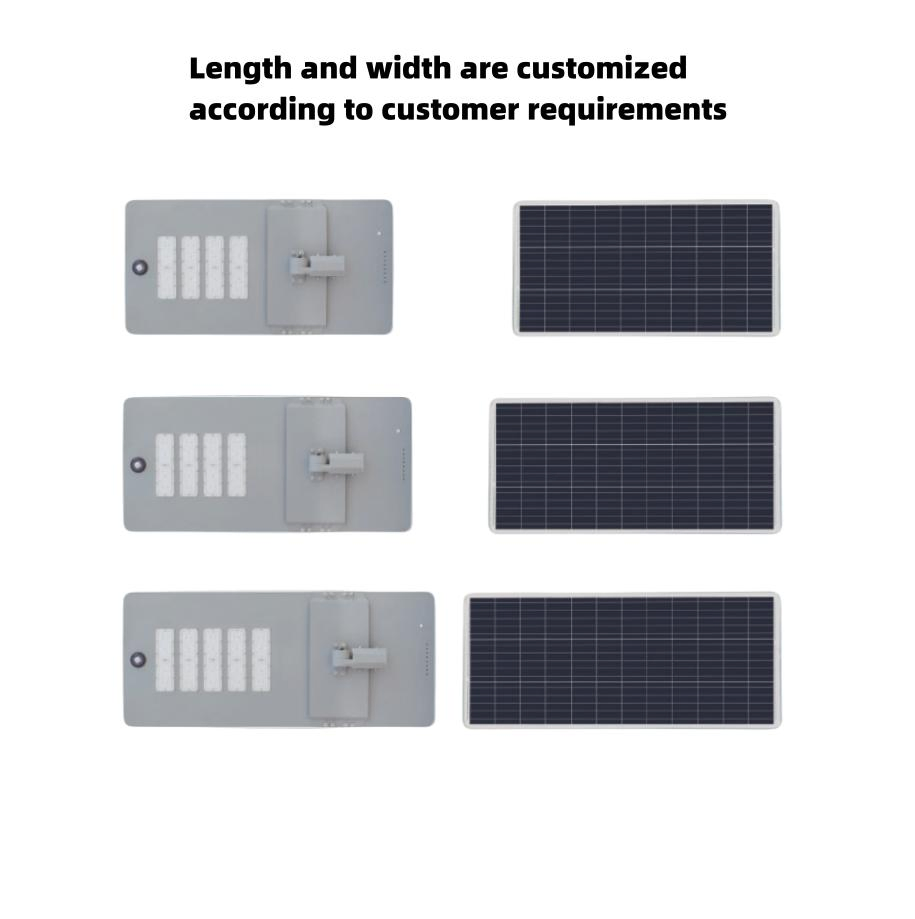

Dimensions

Certifications

Company Certification
Factory Overview

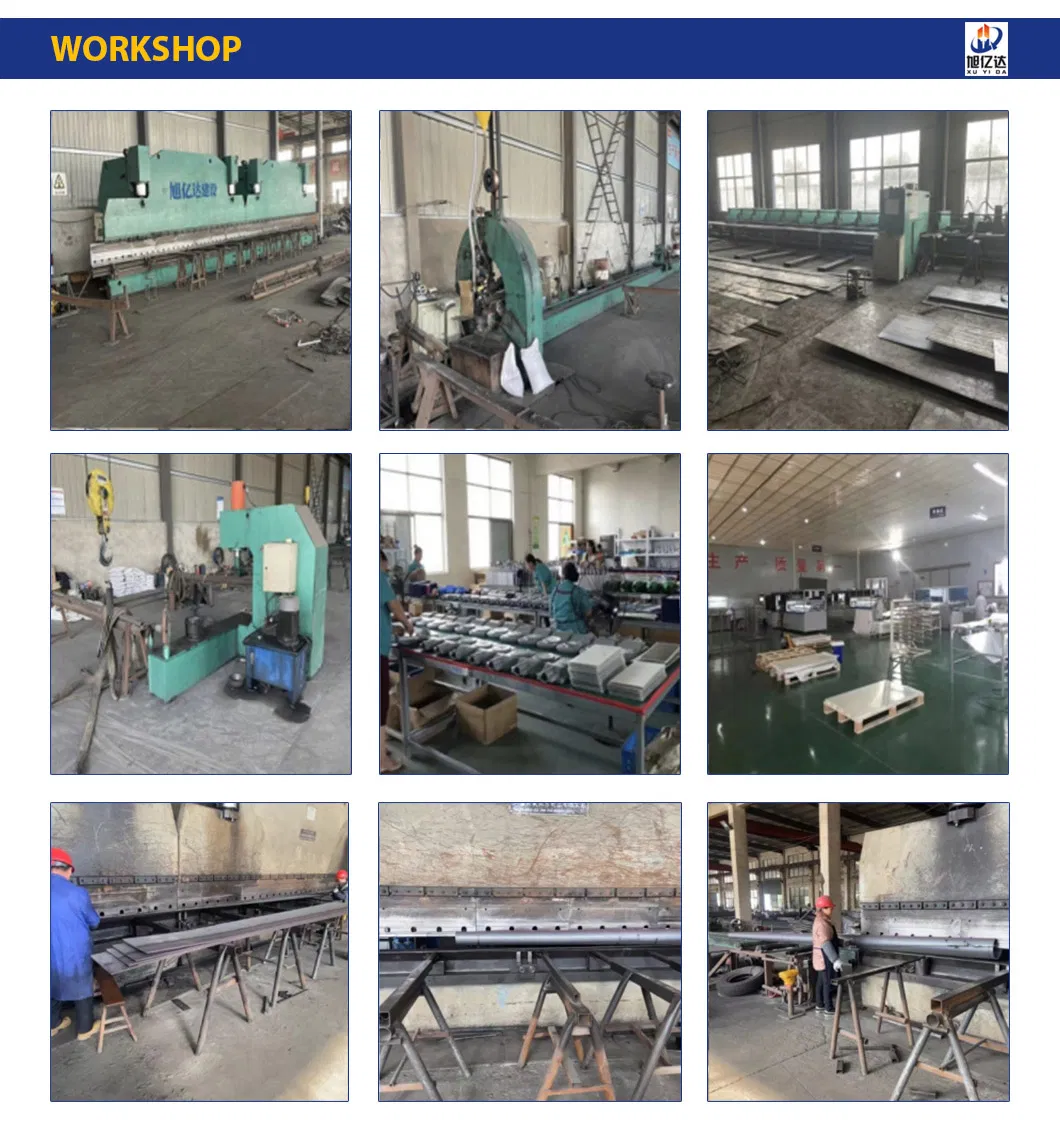

Workshop

Frequently Asked Questions

What is the waterproof rating of this solar street light?
The system features an IP67 rating with a waterproof structure, ensuring safety and reliability in various outdoor weather conditions.
How long does the battery last?
It utilizes a high-capacity LifePO4 lithium battery with a lifespan of 5 to 10 years, depending on usage conditions.
How does the PIR motion sensor work?
The sensor provides 100% brightness when motion is detected and automatically switches to 1/3 brightness after a delay when no motion is detected to save energy.
What is the warranty period for this product?
The product comes with a 5-year warranty, covering the main components of the solar lighting system.
Is professional wiring required for installation?
No, the integrated modular design requires no external wiring, making the installation process simple and cost-effective.
How long does it take to fully charge the system?
Under sufficient and strong sunlight, the solar panel can fully charge the battery in approximately 6 to 7 hours.
