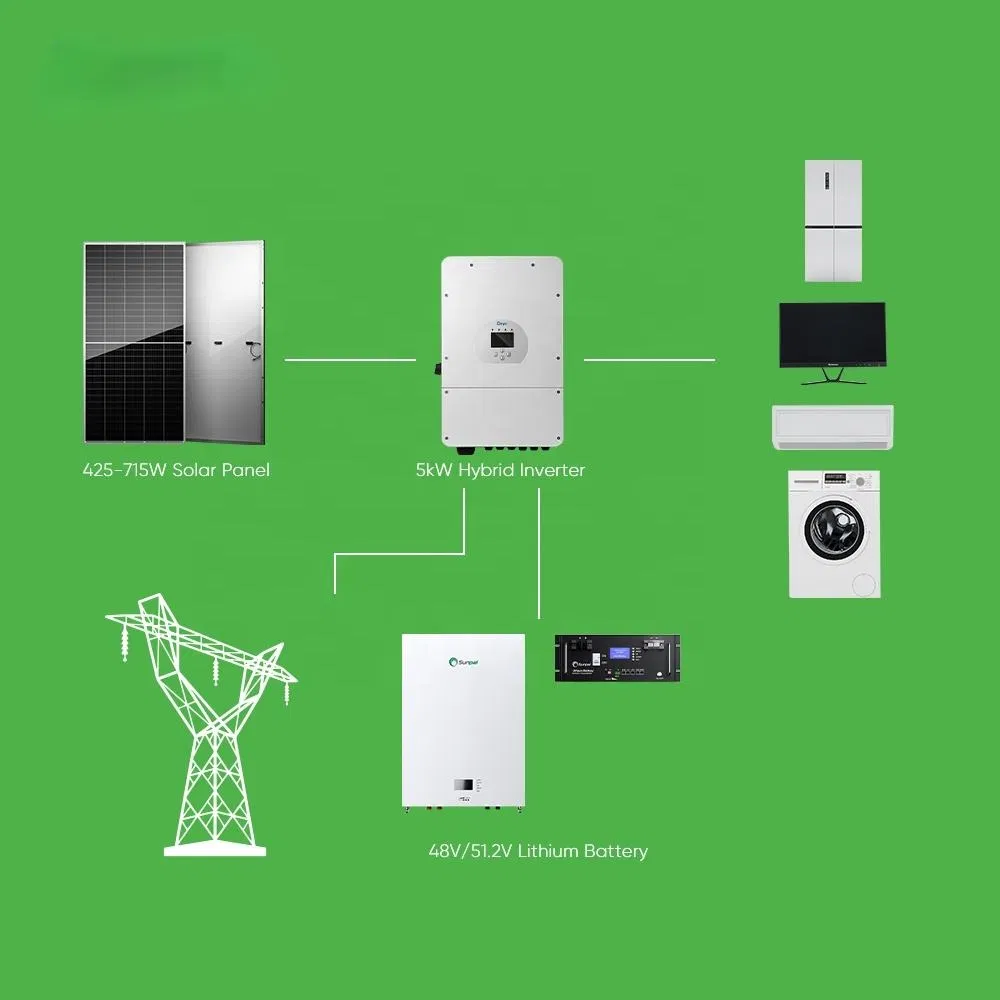

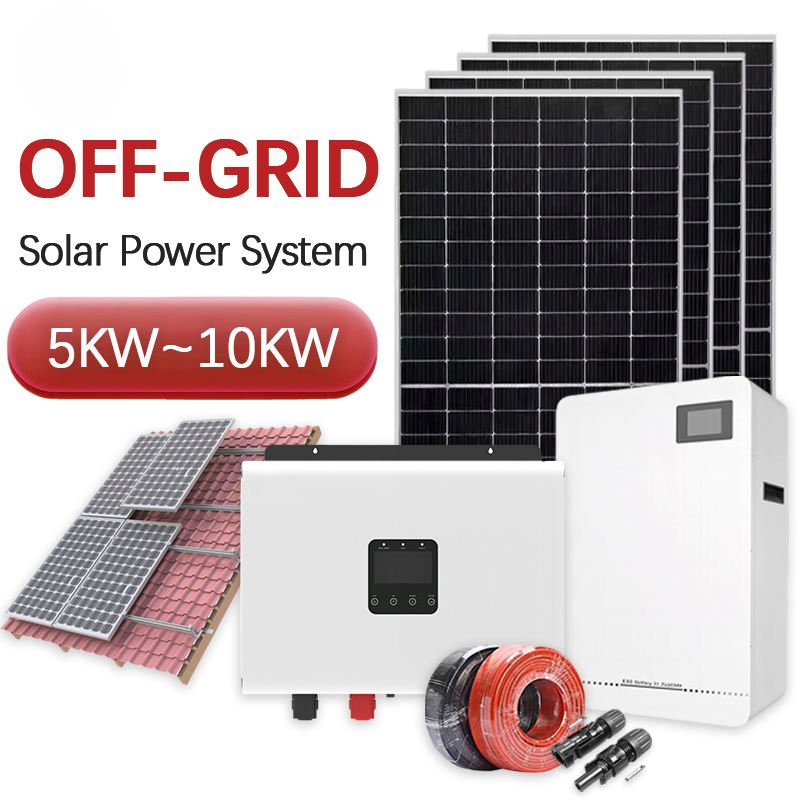

Your Own Home Power Plant a 6kw off Grid Solar Panel System That Is a Full Solar Power System

Customization: Available
After-sales Service: Technical Support
Condition: New

Product Description

📊 Basic Information
Model NO.
6kW-16kWh
Certification
CE
Application
Home, Commercial
System Lifespan
25 Years
Product Name
Domestic Solar Power Generation System
Solar Panels
Monocrystalline Perc Photovoltaic Modules
Battery
Lithium Iron Phosphate Battery
Output Voltage
220V/230V/240V
Output Frequency
50/60Hz
Inverter Type
Pure Sine Wave Inverter
Controller
MPPT Solar Charge Controller
Storage Capacity
16kWh
Full Solar Power System
🛠️ Product Description & Technical Specifications
Component Category Specific Configuration Items Technical Parameters
Photovoltaic Power Generation Module Monocrystalline PERC Photovoltaic Module Power: 450W-550W; Efficiency: ≥23%; Temp: -40℃~85℃
Energy Storage Module Lithium Iron Phosphate Battery Pack Capacity: 2kWh-10kWh; Cycle Life: ≥6000 times; Temp: -20℃~60℃
Power Conversion Module Off-grid Inverter & Controller All-in-one Rated Power: 1kW-10kW; Efficiency: ≥95%; Overload Protection: 120%

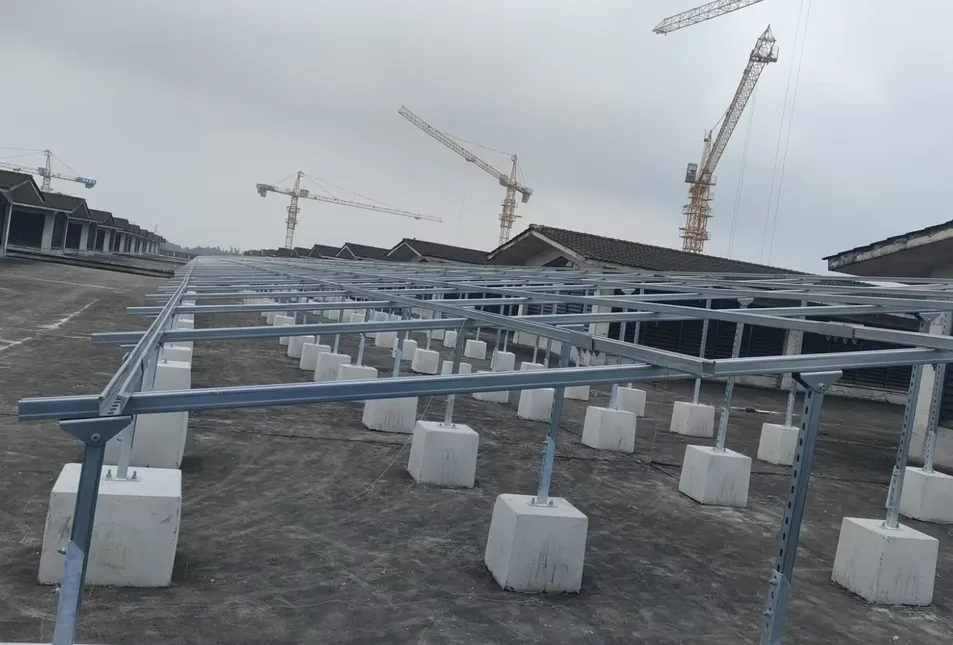

Installation Material Aluminum Alloy Mounting + PV Wire Wind Resistance ≥ Level 12; UV Resistant; Waterproof Connectors
Control Module (Optional) Remote Monitoring Terminal Mobile/Computer remote viewing; Fault warning; Data export
Solar Unit 1
Solar Unit 2
Solar Unit 3
Inverter Detail

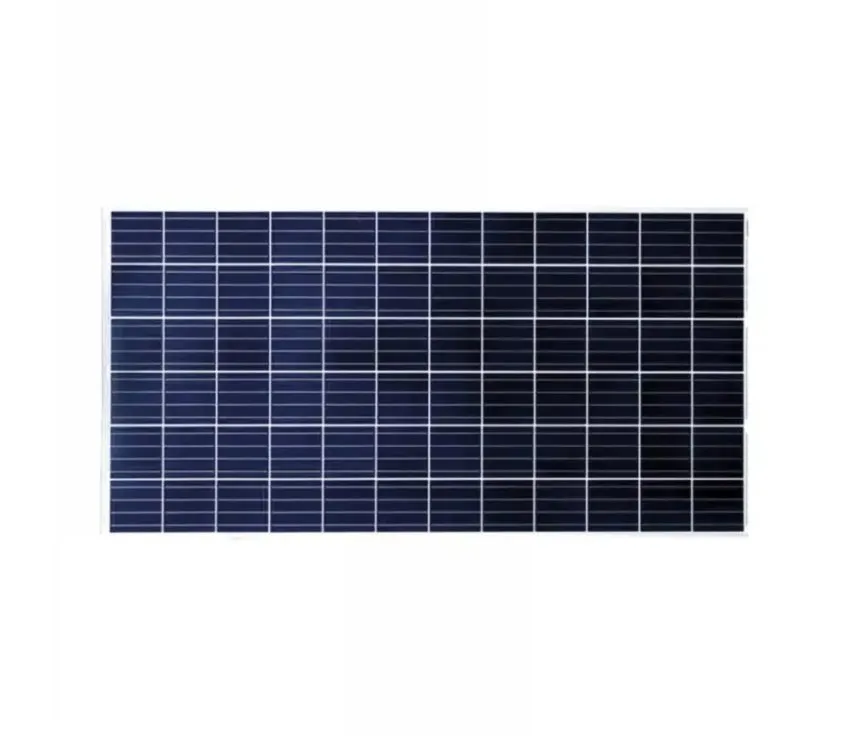

☀️ Solar Photovoltaic Panels
Peak Power (Pmax)590Wp
Module TypeP-type/N-type Monocrystalline PERC Module
Voltage at Max Power Point (Vmpp)41.2V
Current at Max Power Point (Impp)14.32A
Open Circuit Voltage (Voc)49.8V

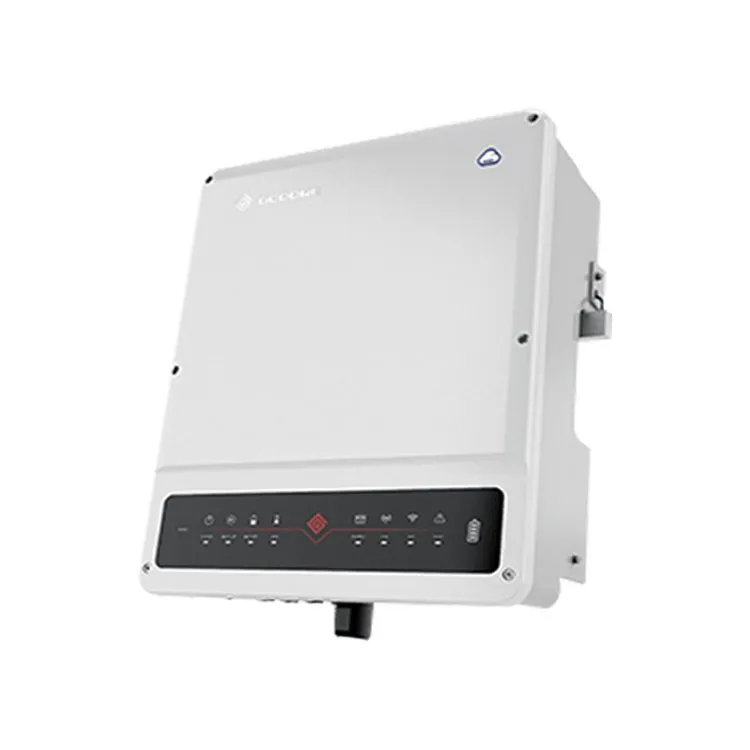

Inverter Specifications
Rated AC Output Power6kW
Maximum DC Input Power7200W
MPPT Input Voltage Range120V - 500V
Maximum Conversion Efficiency98.5%
Protection ClassIP65

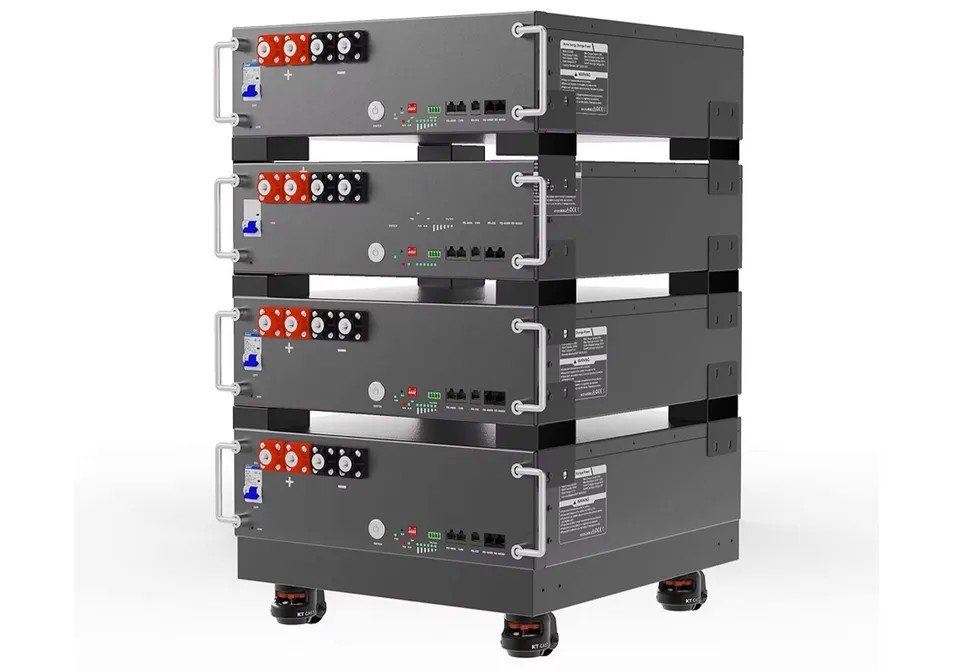

🔋 Energy Storage Battery
Battery TypeLithium Iron Phosphate (LiFePO4)
Rated Energy16kWh
Rated Voltage51.2V
Cycle Life (80% DOD)≥6000 Times
Rated Charge/Discharge Power4kW / 8kW (Max)
🏡 Applicable Scenarios
📍
Remote areas: Mountainous regions, pastoral zones, islands, border outposts without grid coverage.
📍
Temporary operations: Construction sites, field exploration base stations, emergency rescue stations.
📍
Commercial & Civil: Rural guesthouses, detached villas, outdoor camps.
📍
Complementary Applications: Dedicated power supply for modular housing and greenhouses (temperature control, irrigation).

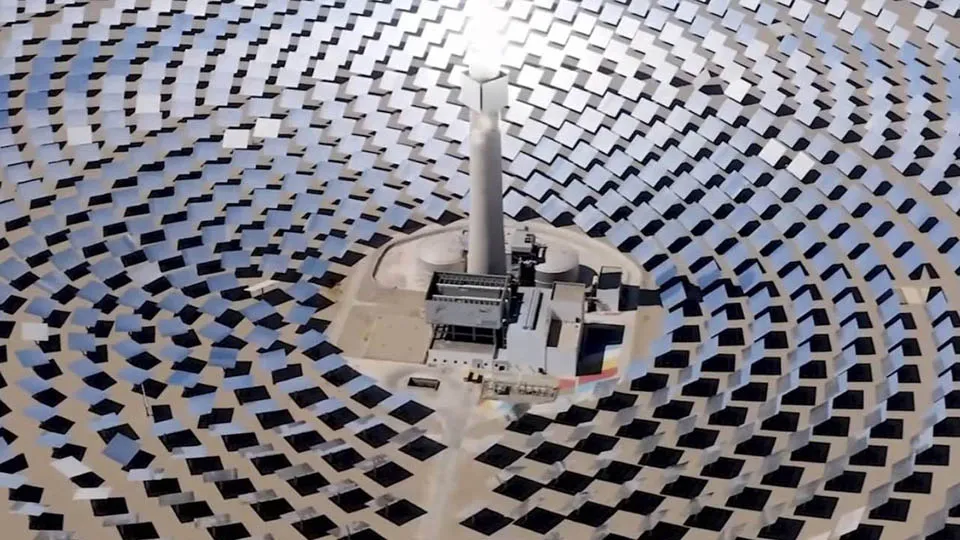

Scenario 1

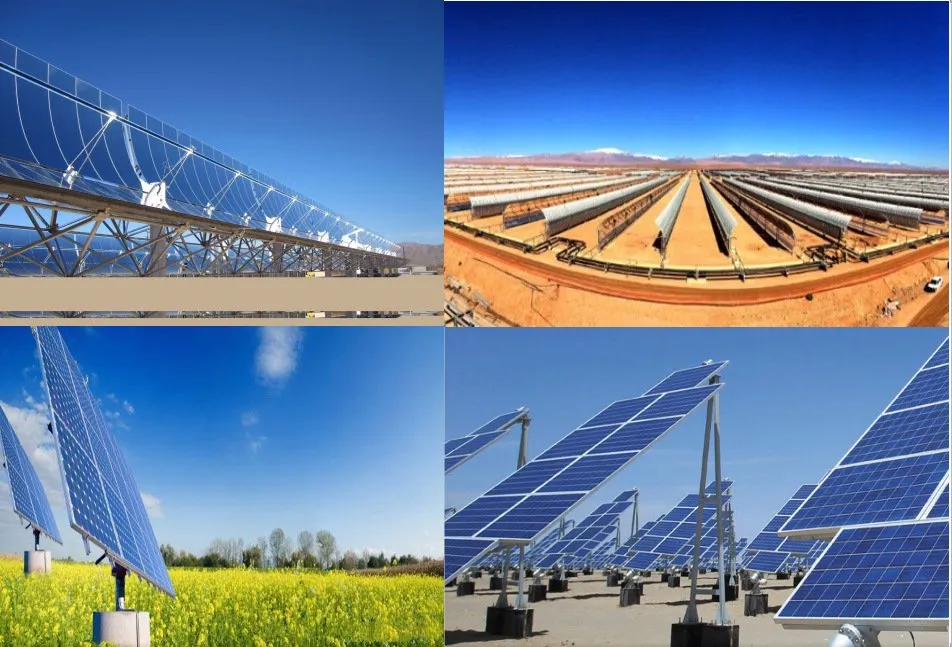

Scenario 2
Scenario 3
🏢 Company Profile

The company specializes in sustainable building and renewable energy solutions. With a team of over 30 professionals and a production area exceeding 3,000 square meters, the company adheres to sustainable development and a customer-centric value system, maintaining strict quality control. Main business areas include:

  • Greenhouse Projects: Comprehensive services including design, construction, and customization for modern agriculture.
  • Modular Housing: Rapid assembly, durable, and flexible housing solutions for residential and commercial use.
  • Photovoltaic Power Generation: Integrated energy solutions covering equipment supply, design, and implementation.
📦 Packaging & Shipping
Packaging and Delivery
Frequently Asked Questions
Q: What are your main products?
A: Solar Panels (Tier 1 Brands); Solar Inverters (On-Grid / Off-Grid / Hybrid); Rack, Stack, and Wall-Mounted Lithium Batteries; ESS Energy Storage; and Full Solar Energy Systems for Residential and Commercial use.
Q: What is the typical delivery time for orders?
A: Generally within 15 days, though it will vary based on specific product requirements and order volume.
Q: What kind of payment terms do you accept?
A: We are flexible with payment conditions to accommodate our clients' needs, depending on the order specifics.
Q: How do you ensure product quality?
A: We maintain strict quality control throughout the entire production process and cooperate with Tier 1 brands to ensure high standards.
Q: Can the solar system be customized?
A: Yes, we provide integrated solutions covering project design and equipment supply tailored to specific customer needs for clean energy utilization.
Q: What is the lifespan of the solar power generation system?
A: Our systems are designed with high-quality components ensuring a lifespan of approximately 25 years.
