Basic Information
Installation
Fast Installation
Certification
CE, ISO, BV, SGS, Nata
Product Description

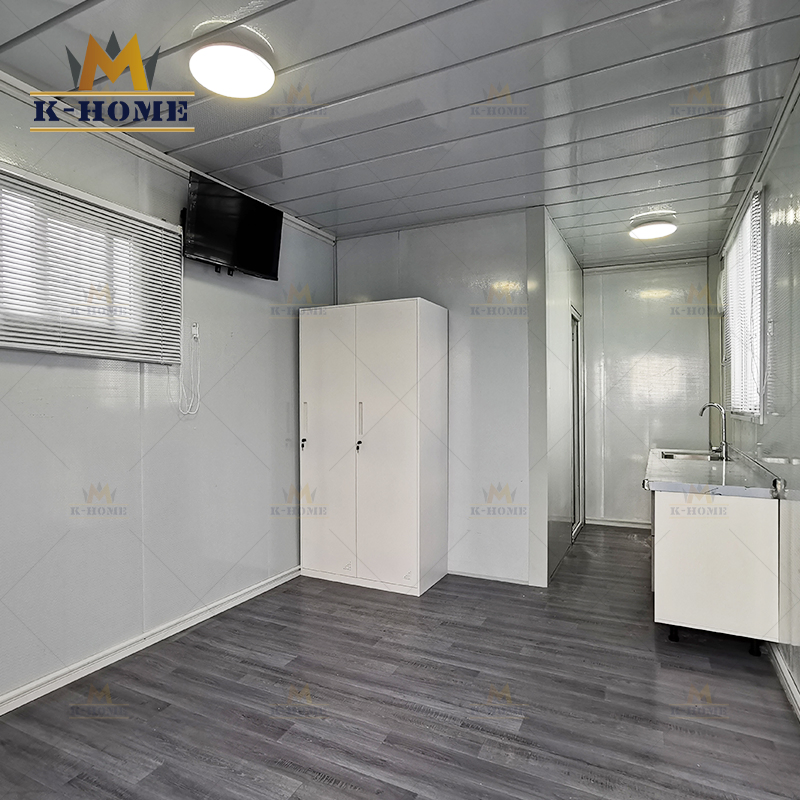

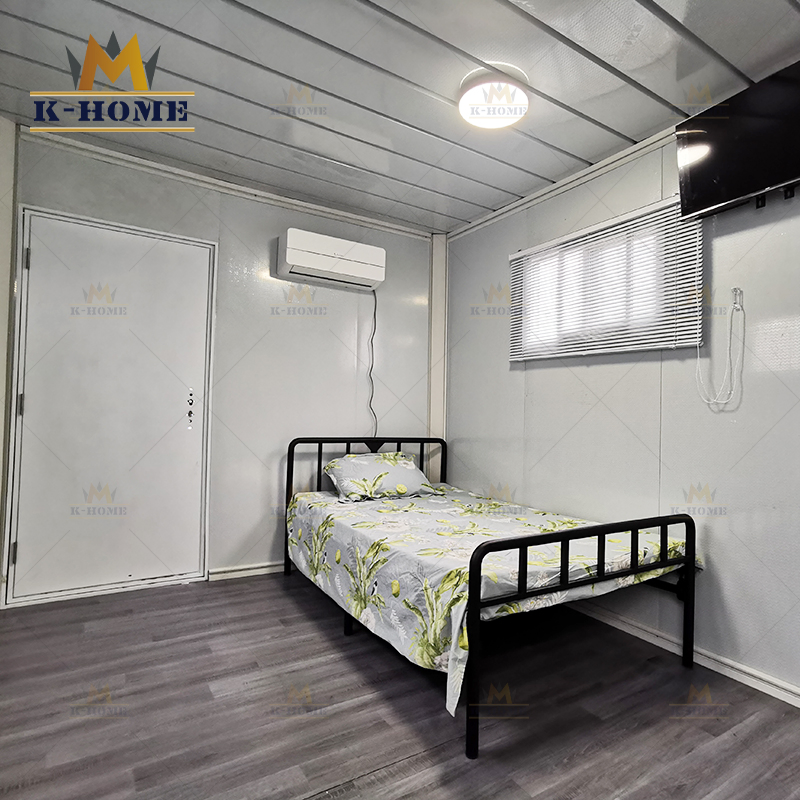

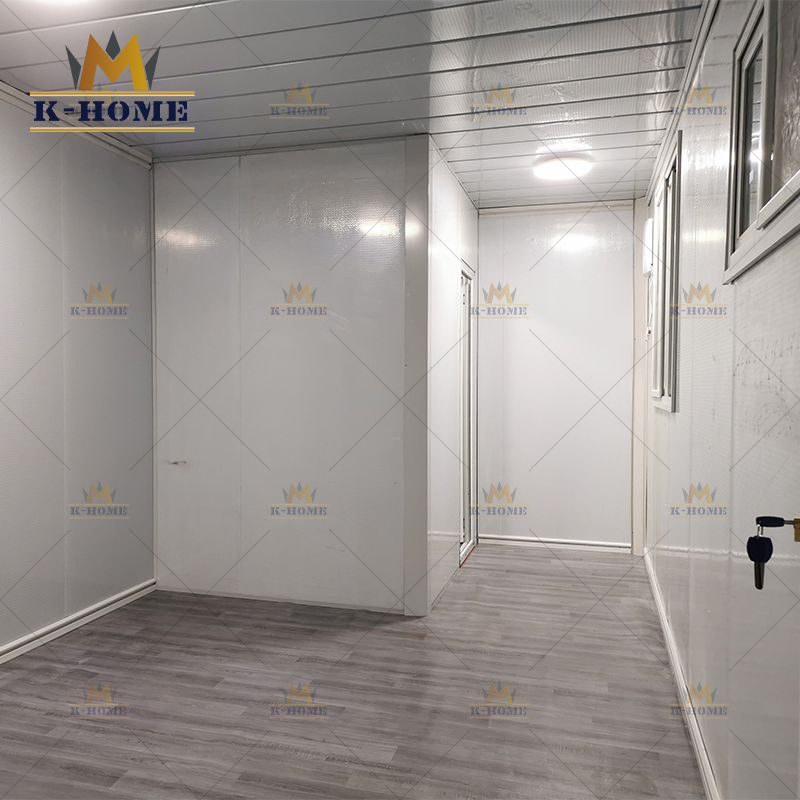

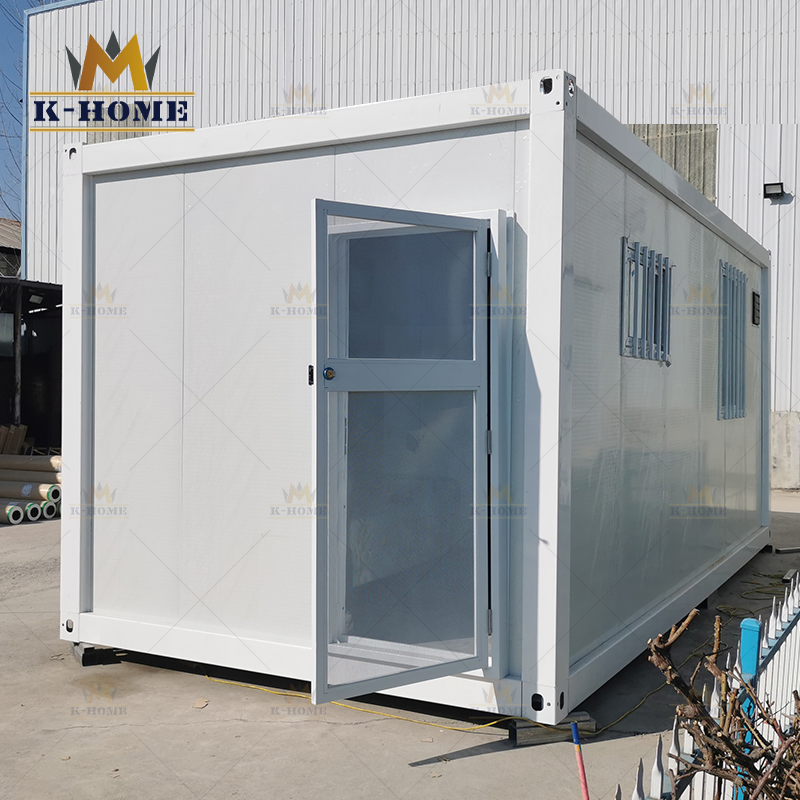

Economic Fast Assemble Mobile Workforce Housing is a light steel system integrated residence with standardized design, industrialized production, modular combination, disassembly, and reuse, which is convenient for inventory reorganization.
| Size |
5950(L) X 3000(W) X 2800(H) |
| Color |
White, Blue, Red or Customized Green |
| Wall Panel |
50mm EPS, Rock Wool, PU, PIR sandwich wall panel |
| Flooring |
MGO/Cement board and PVC carpet |
| Earthquake Resistance |
Grade 8 |
| Install Time |
2 units by 3 workers in 1 day (No crane needed) |

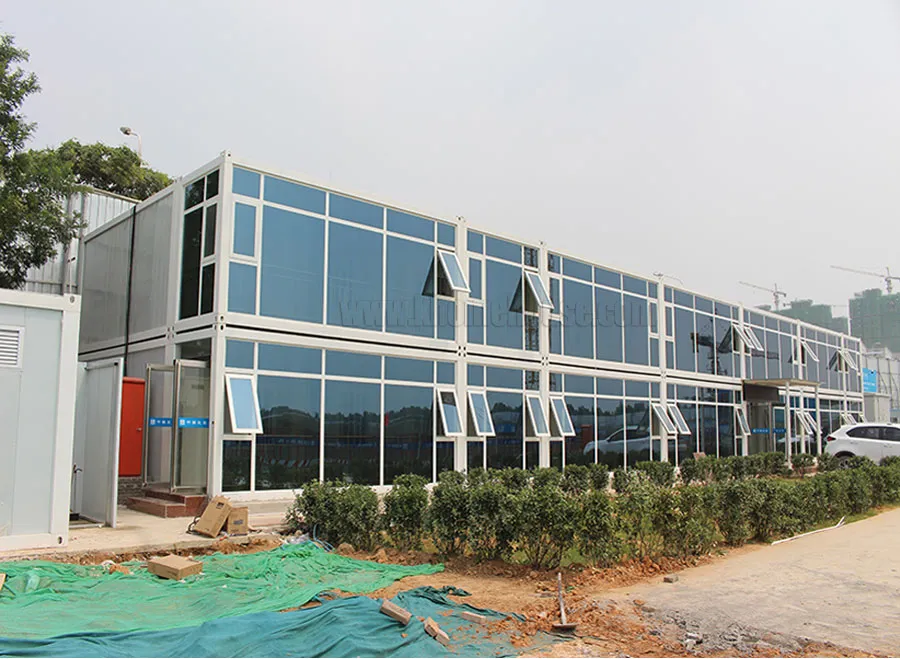

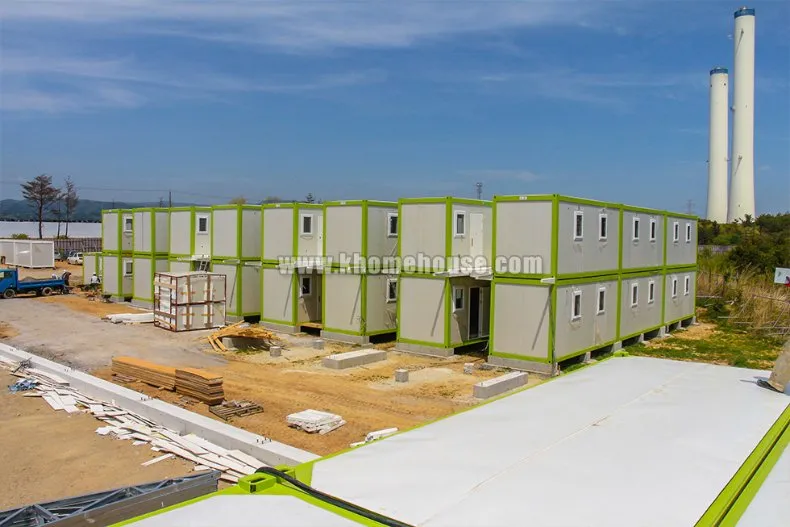

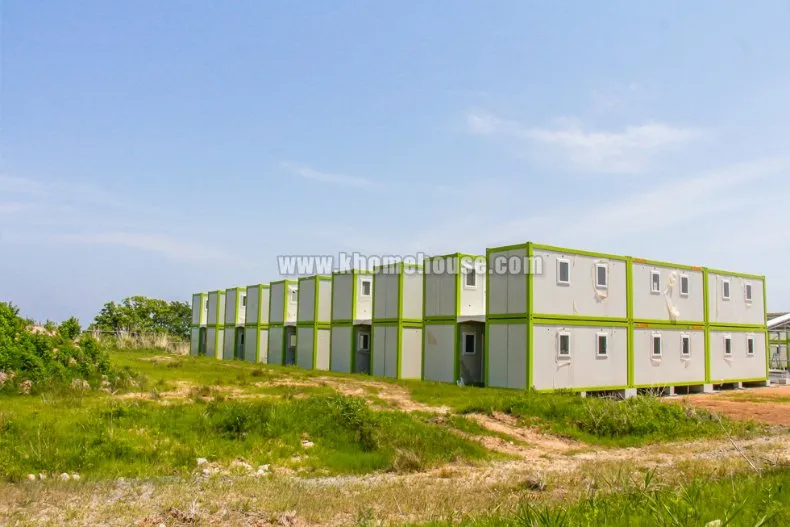

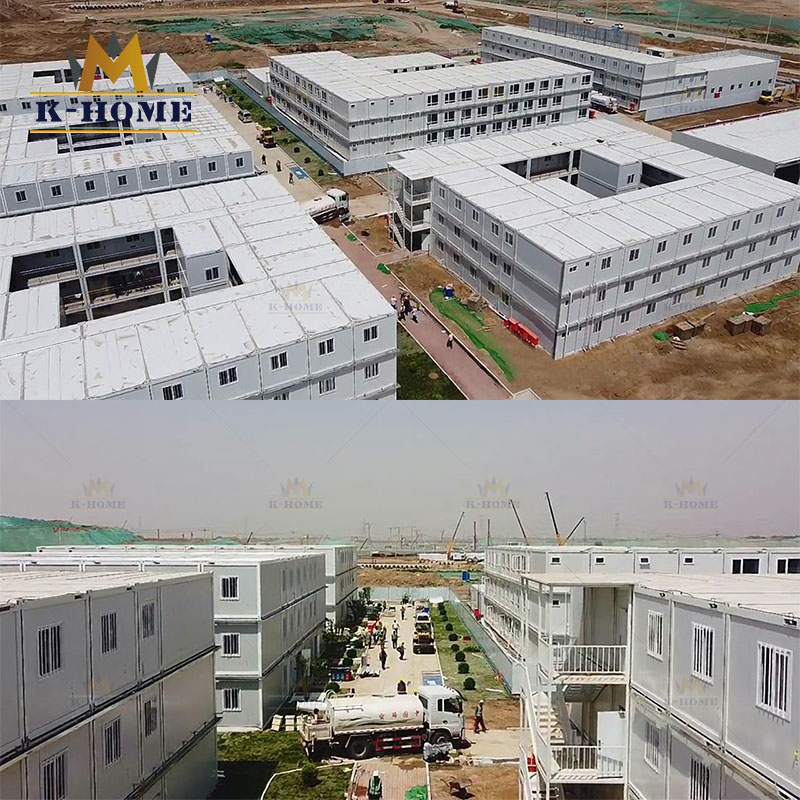

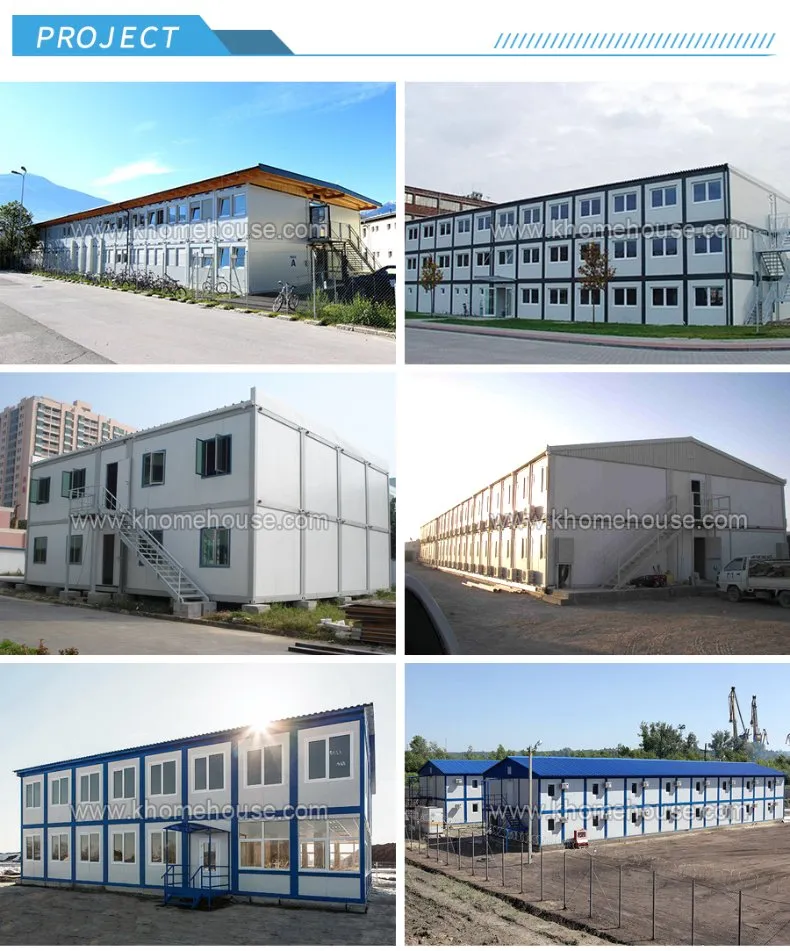

This housing solution is ideal for temporary dormitories on construction sites, field operation construction houses for oil and natural gas sectors, and temporary urban office spaces. It represents a green building trend using steel structures that offer wind and earthquake resistance. The integrated frame and steel plate wall structure provide a firm, safe, and comfortable living environment.

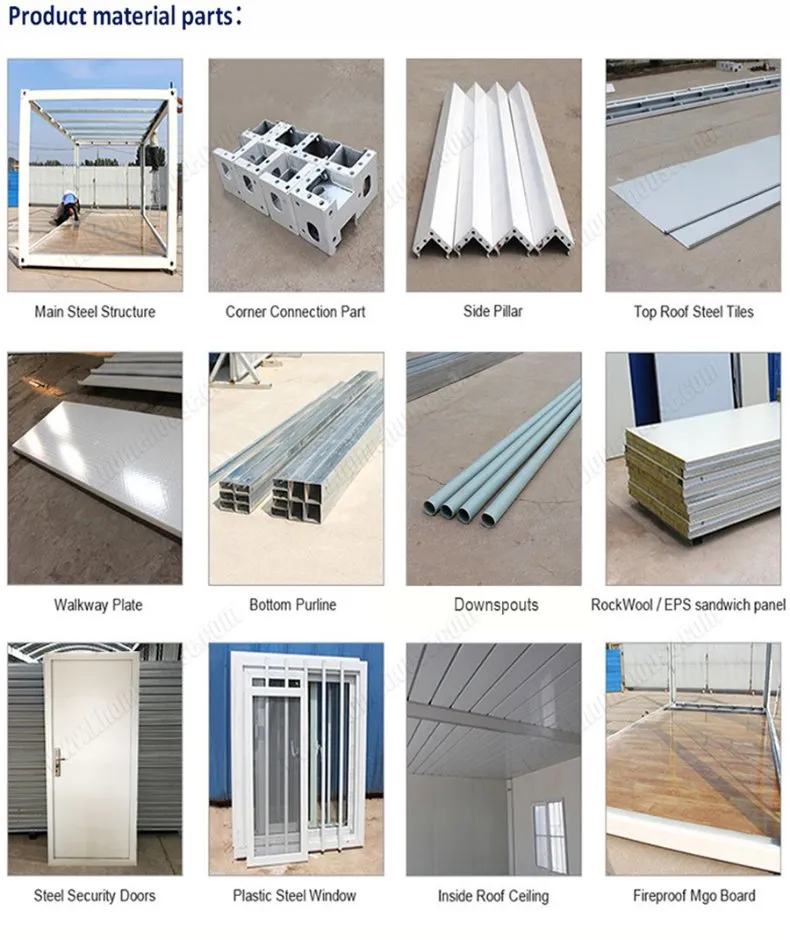

Detailed Specifications
| Roof System |
Steel frame & Insulation |
Q235 galvanized fitting; 75mm glass wool insulation; 0.5mm steel sheet. |
| Floor System |
Structure & Board |
2.5mm Galvanized Steel; 18mm MGO/Cement Board + PVC leather. |
| Wall System |
Sandwich Panel |
50mm EPS/Rock Wool/PU/PIR; 0.4mm thickness steel plates. |
| Door & Window |
Steel & Aluminum |
Steel door (2030*930mm); Aluminum alloy double hollow glass sliding window. |
| Electric System |
Complete Kit |
LED light, double sockets, air-switch, and electrical box with safety protection. |
FAQ
How about your production capacity?

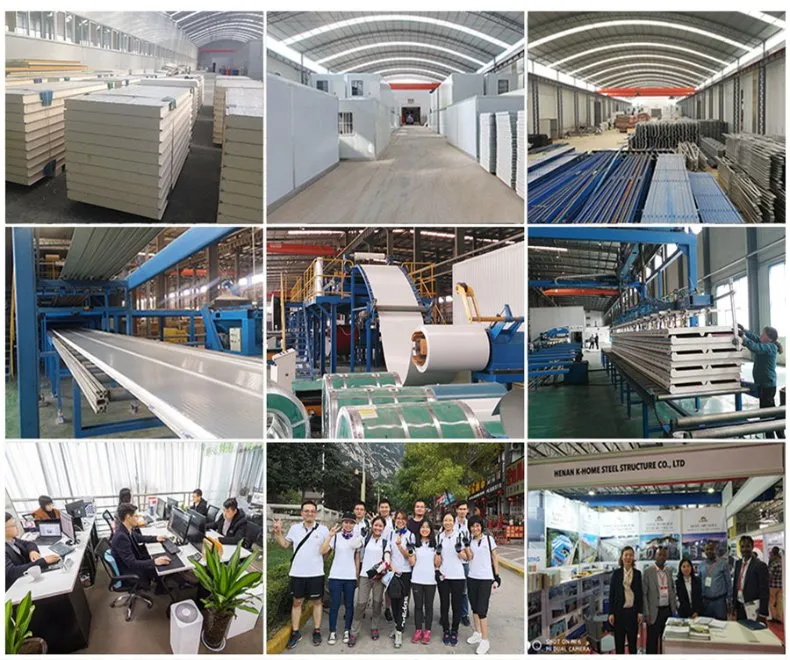

Container House: 800 sets per month. Prefab House: 40,000 square meters per week.
How about your quality control?
We have obtained certificate ISO9001: 2015. Products undergo cutting, bending, welding, shot blasting, and ultrasonic testing to ensure no defects.
Is third-party inspection available?
Yes, SGS, BV, TUV, etc. are available according to client requirements.
How about the delivery time?
Generally within 30 days, depending on the order quantity; partial shipment is allowed for large orders.
What about the installation process?
We provide detailed installation drawings. Supervisors for guiding installation are also available for specific projects.
How to ensure the product matches our requirements?
Before ordering, our team provides suitable solutions with CAD drawings, 3D drawings, and material photos to help you understand the solution deeply.
