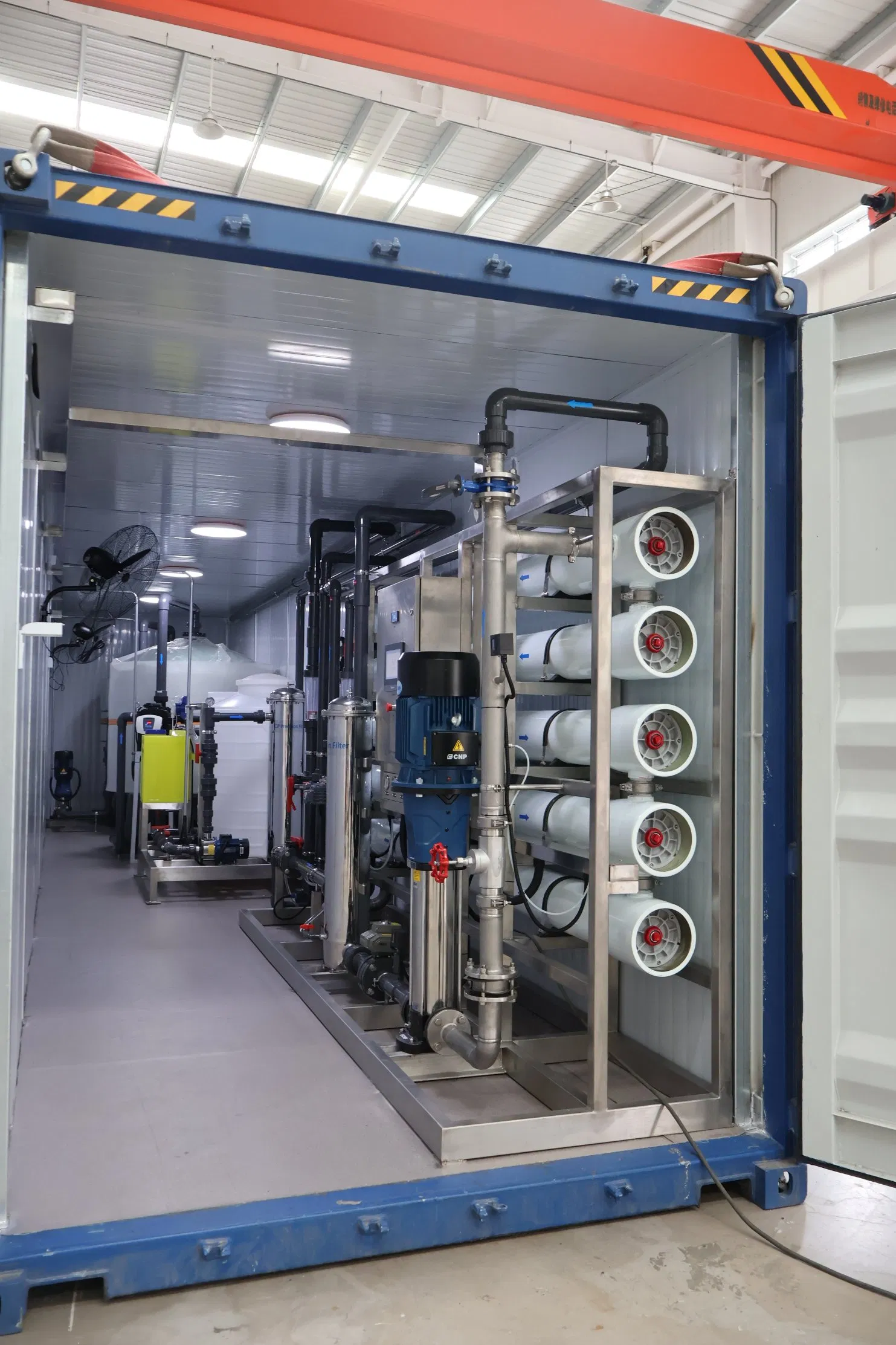

15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
1 / 5
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment
15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment

15tph Mobile RO System Waste Water Treatment Machine Reverse Osmosis Water Equipment

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.5%
Send Inquiry

Product Description

Technical Specifications

Model NO.
JFRO-15T
Application
Industry
Capacity
6000lph
Operating Pressure
0.8-1.2MPa
Recovery Rate
67%
Desalination Rate
Less Than 99.5%
RO Frame
SUS304
Membrane Elements
Dow /Hydranautics/Troy/ Vontron (Optional)
Control Valve
Manual/Automatic
Transport Package
Containerized
Origin
China
Production Capacity
6tph

Packaging & Delivery

Package Size
235.00cm * 155.00cm * 230.00cm
Gross Weight
800.000kg

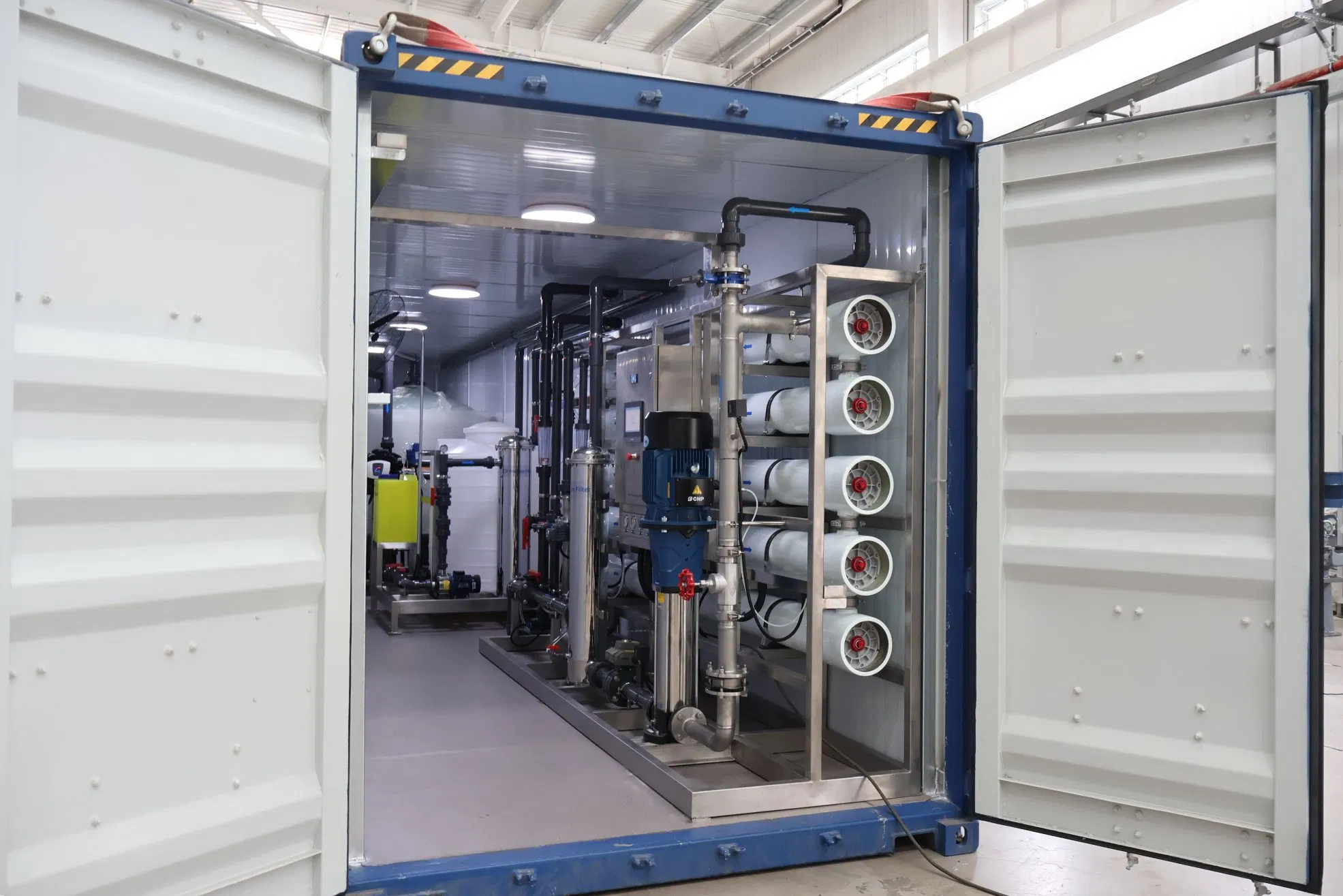

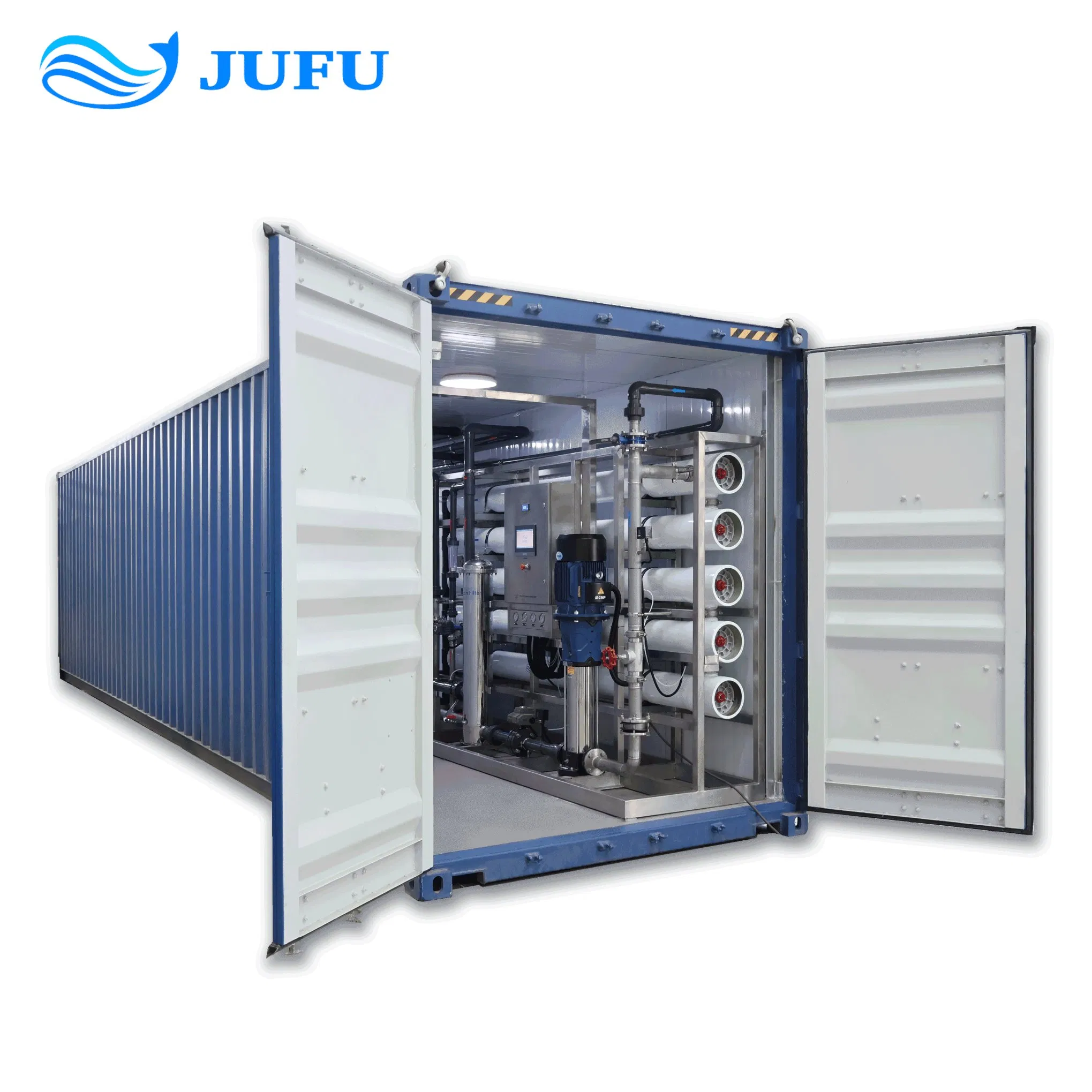

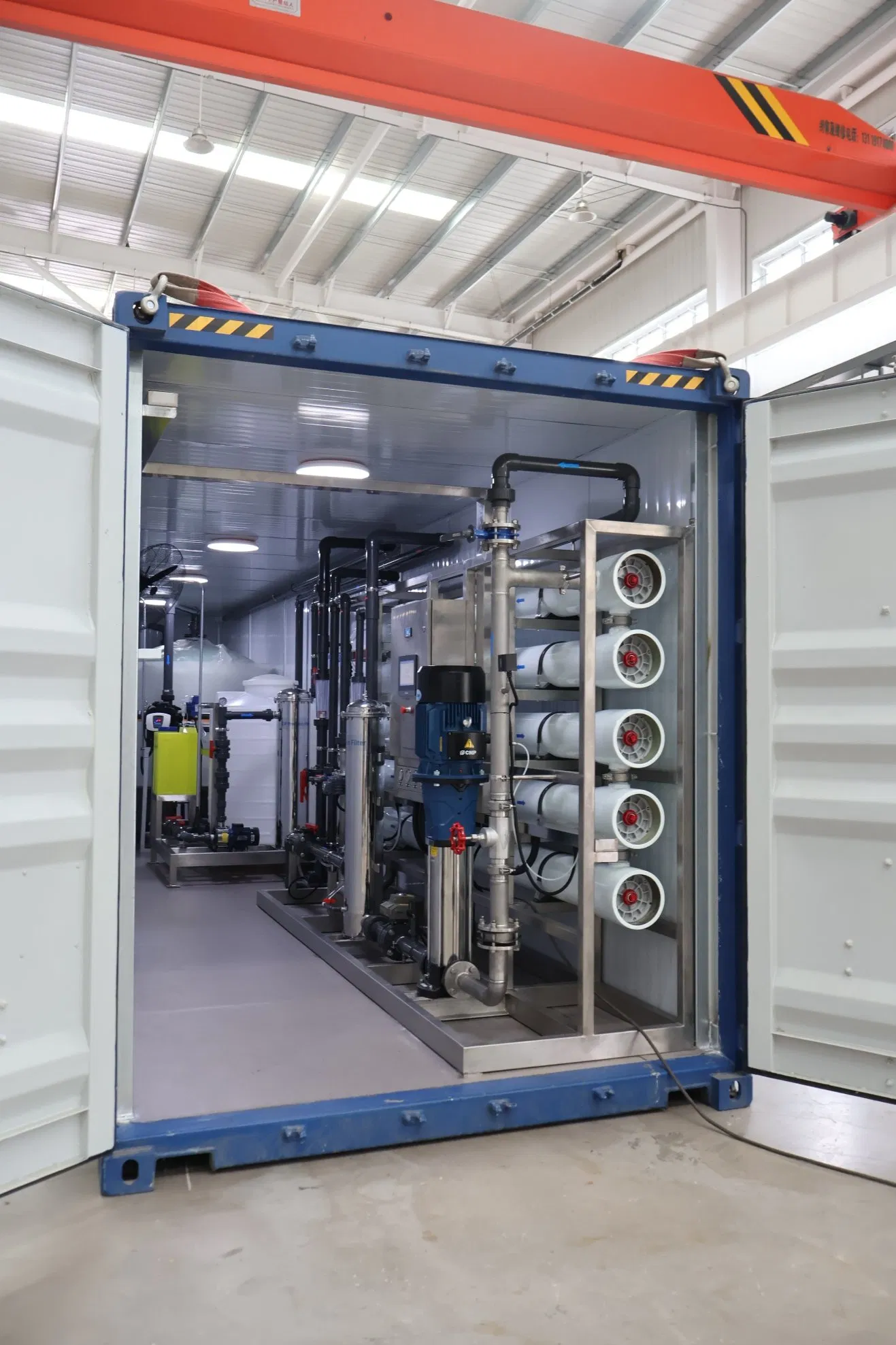

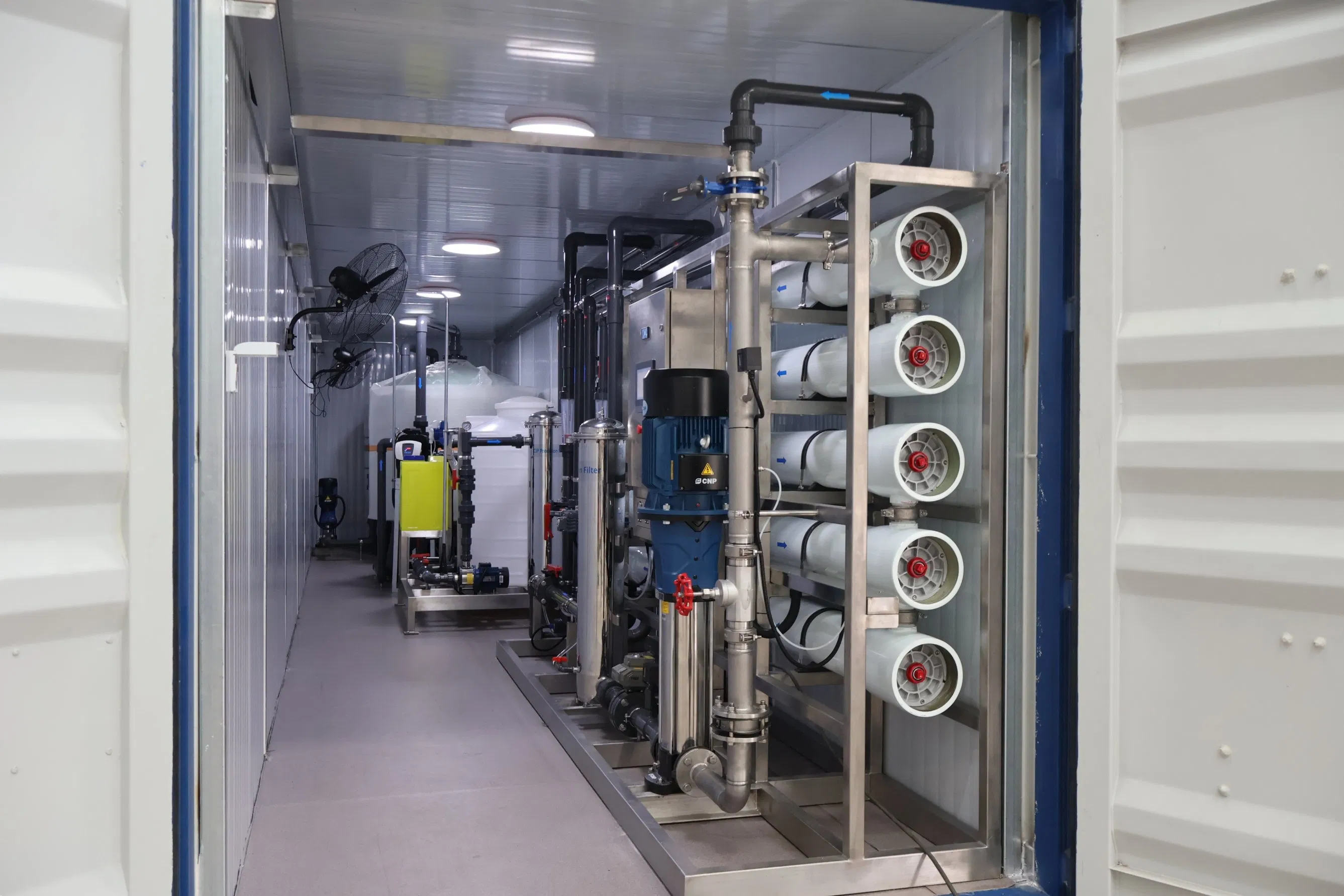

Containerized Water Treatment Equipment

Mobile RO System

Containerized water treatment equipment is a convenient and efficient solution for water treatment, housing various water treatment processes within a standard shipping container.

Key Features & Structure

  • Modular Design: Various water treatment units are arranged in modular units for easy maintenance.
  • Flexibility: Containerized design facilitates easy transportation, installation, and removal.
  • Advanced Treatment: Includes reverse osmosis membranes and ion exchange resins for removing contaminants.
  • Energy Saving: Low energy consumption design to reduce water production costs.
  • Durability: Rack pipelines and fittings made of stainless steel (SUS304) and corrosion-resistant materials.
Seawater Desalination Equipment

Performance Characteristics

  • Desalination rate up to 99.5% using mature reverse osmosis technology.
  • Modern automatic control technology for reduced labor and management costs.
  • Reliable 24-hour continuous operation capability.
  • Integrated electrical control system for status, faults, and alarm communication.
  • Simple operation: Fresh water supply available immediately after start-up.
Product Specs Banner
ModelJFRO-15T RO membrane8″
Capacity15m³/h Power SupplyTri-phase: 110/220/380/415V 50/60Hz
Recovery Rate75% Power Consumption21KW/22KW
Operating Pressure1.0-1.6MPa Control TypeManual / Auto control
Filtration Accuracy0.0001 micron Desalination Rate99%
Feed Water Quality SDI < 5 | Free Chlorine < 0.1mg/L | TDS < 2000mg/L
Process Header

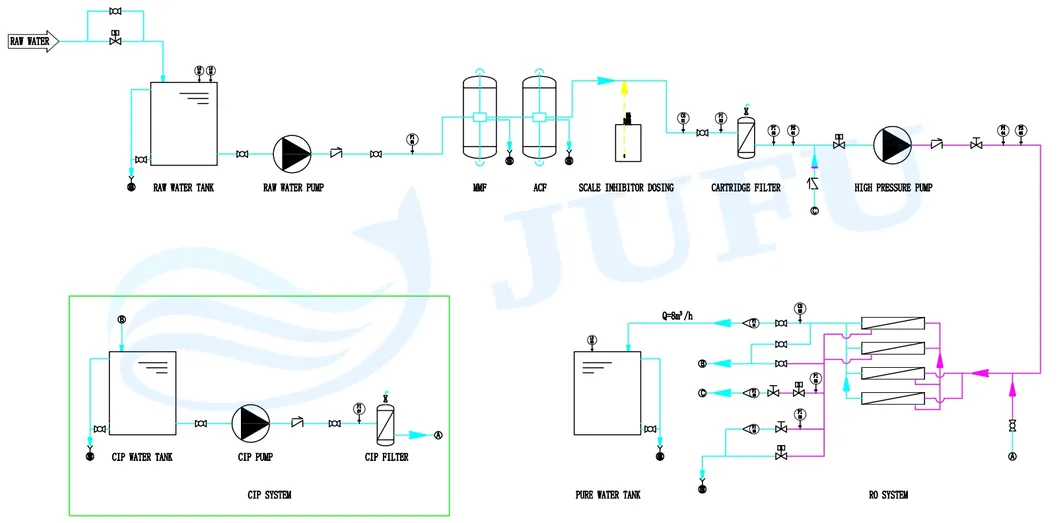

System Working Flow

Raw water tank → Booster pump → Quartz sand filter → Activated carbon filter → Scale inhibitor dosing → Precision filter → High pressure pump → Reverse Osmosis System → Pure water tank

*Note: Raw water tank and pure water tank are to be prepared by the customer.

Flow Diagram

Product Gallery

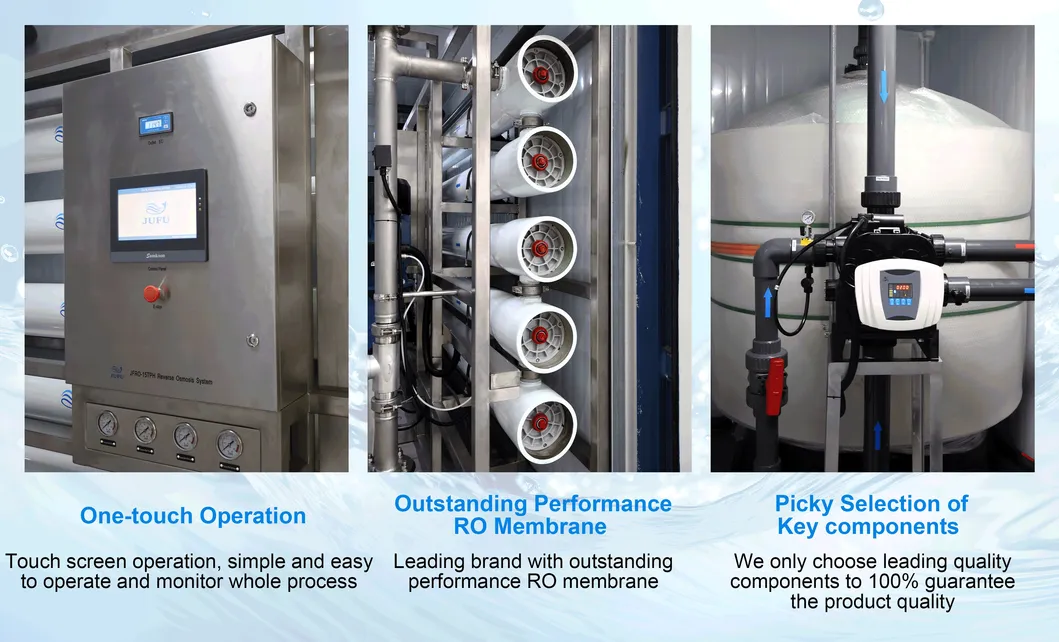

Equipment Detail 1 Equipment Detail 2 Equipment Detail 3
Equipment Detail 4 Equipment Detail 5 Equipment Detail 6

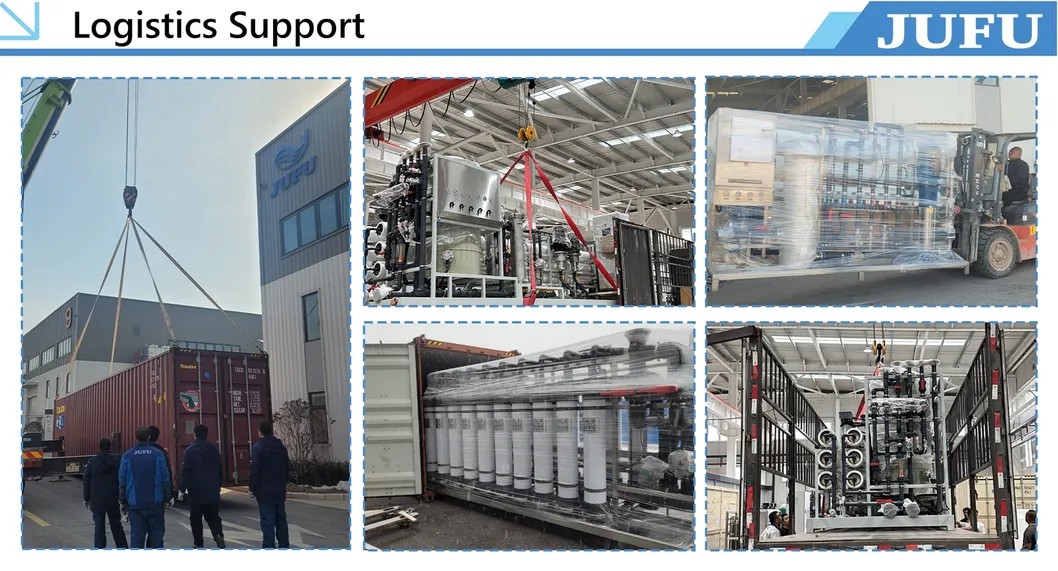

Equipment Detail 7 Equipment Detail 8 Equipment Detail 9

Frequently Asked Questions

What type of company are you?
We are a high-tech manufacturer in the water treatment industry for almost two decades. We specialize in R&D, manufacturing, sales, and engineering installation of water purification equipment.
What information is needed for product selection?
Please provide the raw water source (water analysis report if possible), required output capacity, the application of the project, and local piping standards.
Can you provide a solution tailored to my specific case?
Yes, tailor-made solutions are provided by our professional engineers based on your specific requirements and project pain-points.
What are the typical payment terms?
Our standard terms include a deposit in advance and the remaining balance before delivery.
What is the lead time for production?
The lead time generally ranges from 3-5 weeks for standard products, depending on the order specifics.
What warranty do you offer?
We offer a 1-year warranty for our products. With proper use and maintenance, the equipment is designed to operate effectively for over 5 years.
