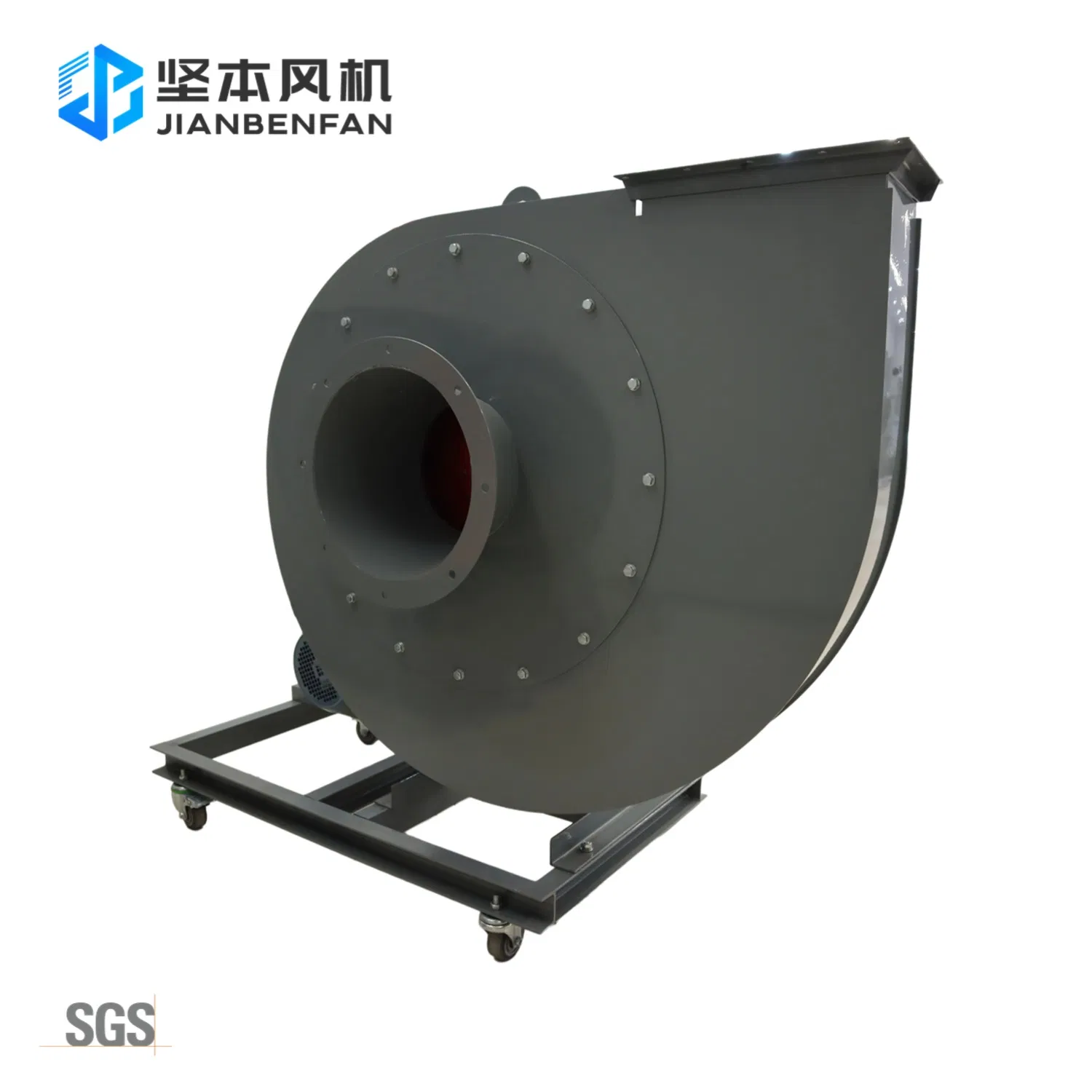

Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
1 / 5
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance
Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance

Heavy-Duty Industrial Y6-30 Boiler Blower System for Efficient Performance

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Info
Model NO.
6-30
Flow Direction
Centrifugal
Pressure
High Pressure
Certification
RoHS, UR, ISO, CE, CCC
Warranty
1 Year
Power
0.75~22 Kw
Air Volume
200-7000 CMH
Voltage
220V/380V/400V/440V
Efficiency
up to 82%
Transport Package
Wooden Box
🔍 Product Description

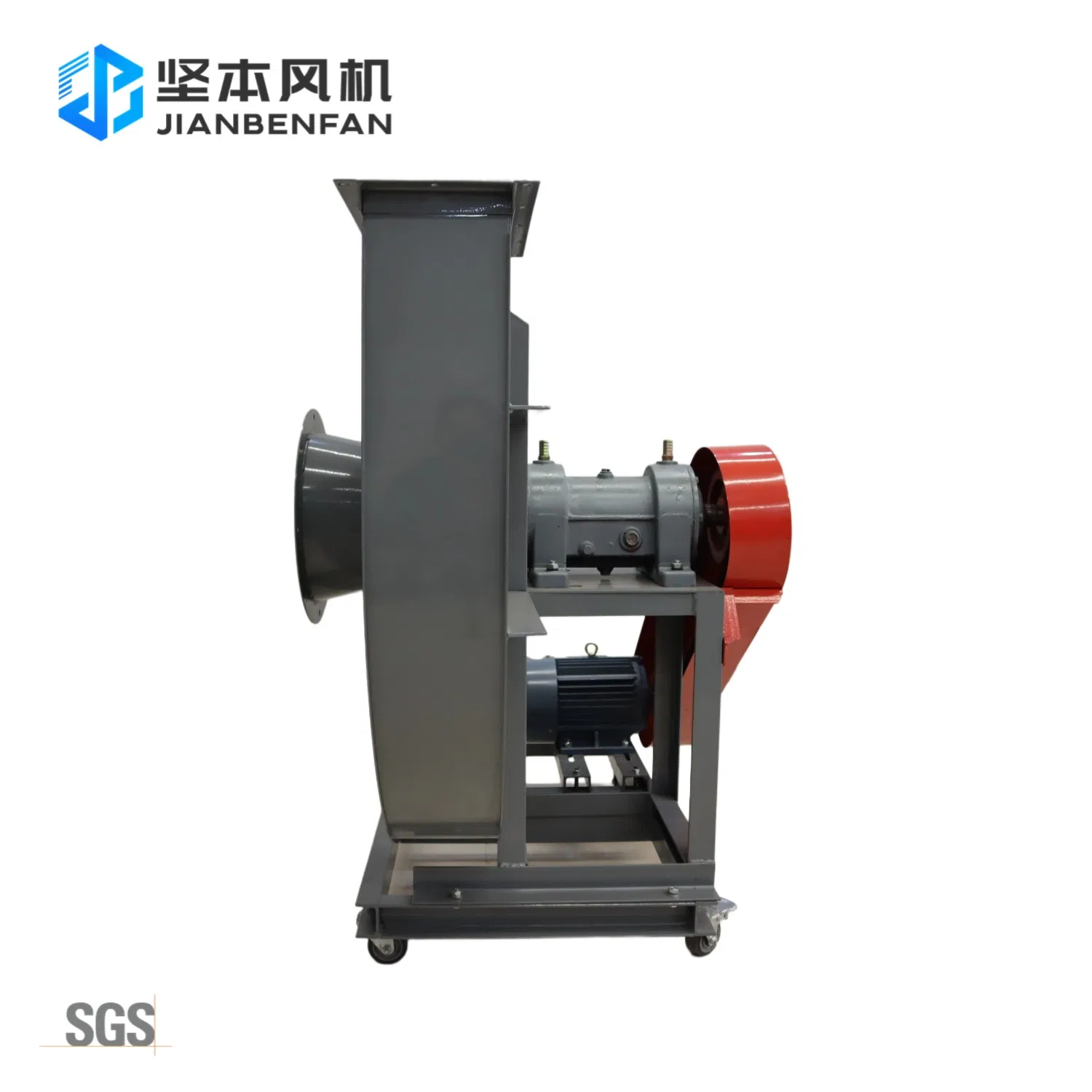

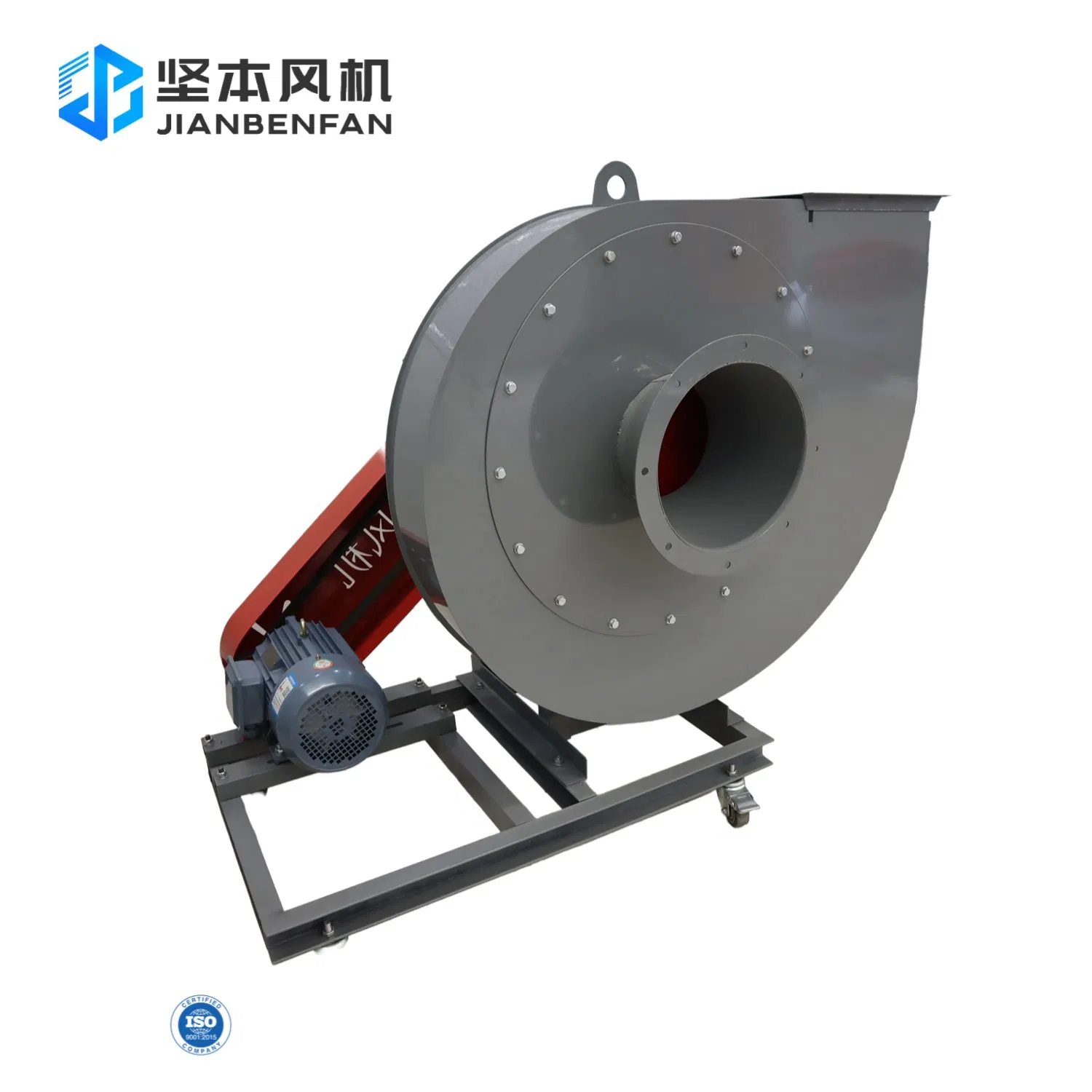

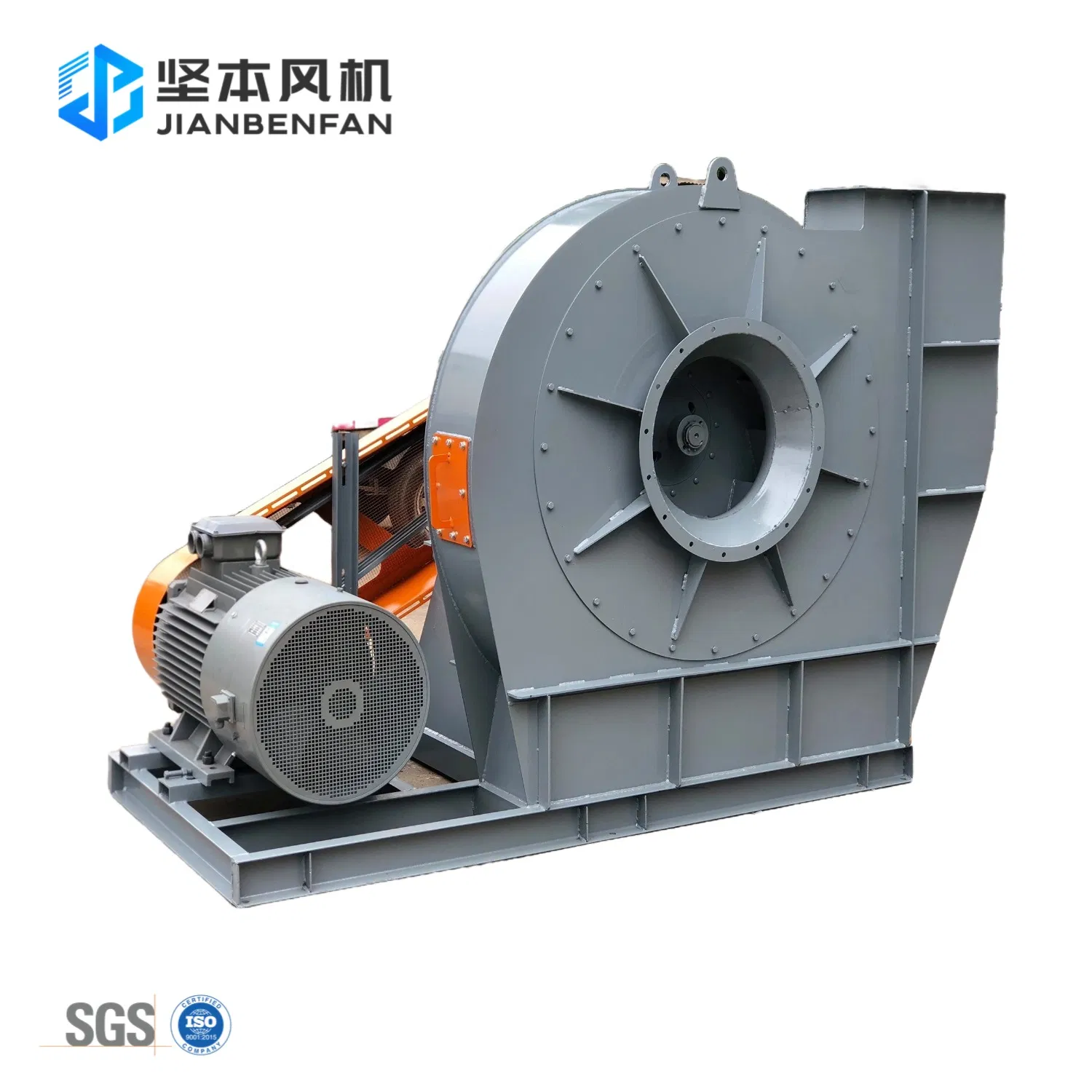

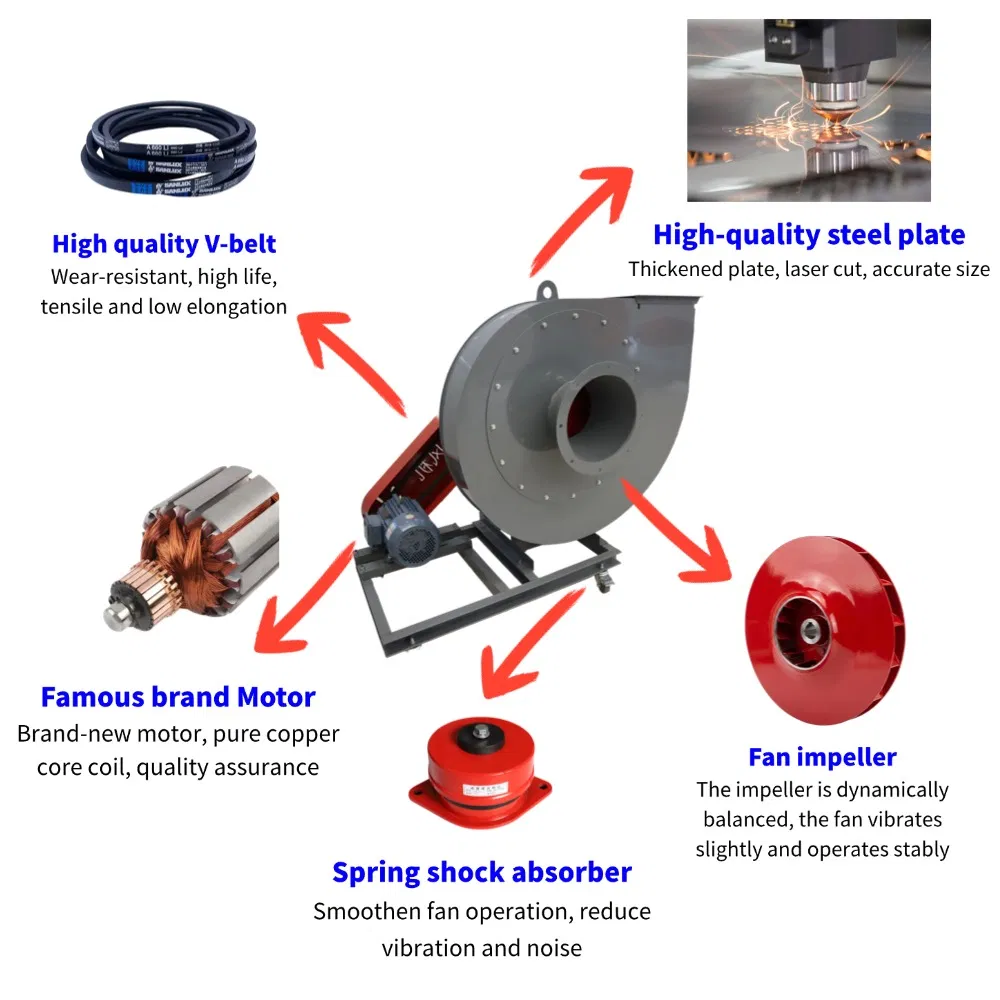

Y6-30 Series: High-Efficiency Boiler Induced Draft Fan
The Y6-30 fan is primarily used in conjunction with industrial boilers (ranging from 0.5 to 35 tons/hour) equipped with smoke treatment and dust removal systems. It is characterized by its wide high-efficiency range, low noise levels, and robust construction.

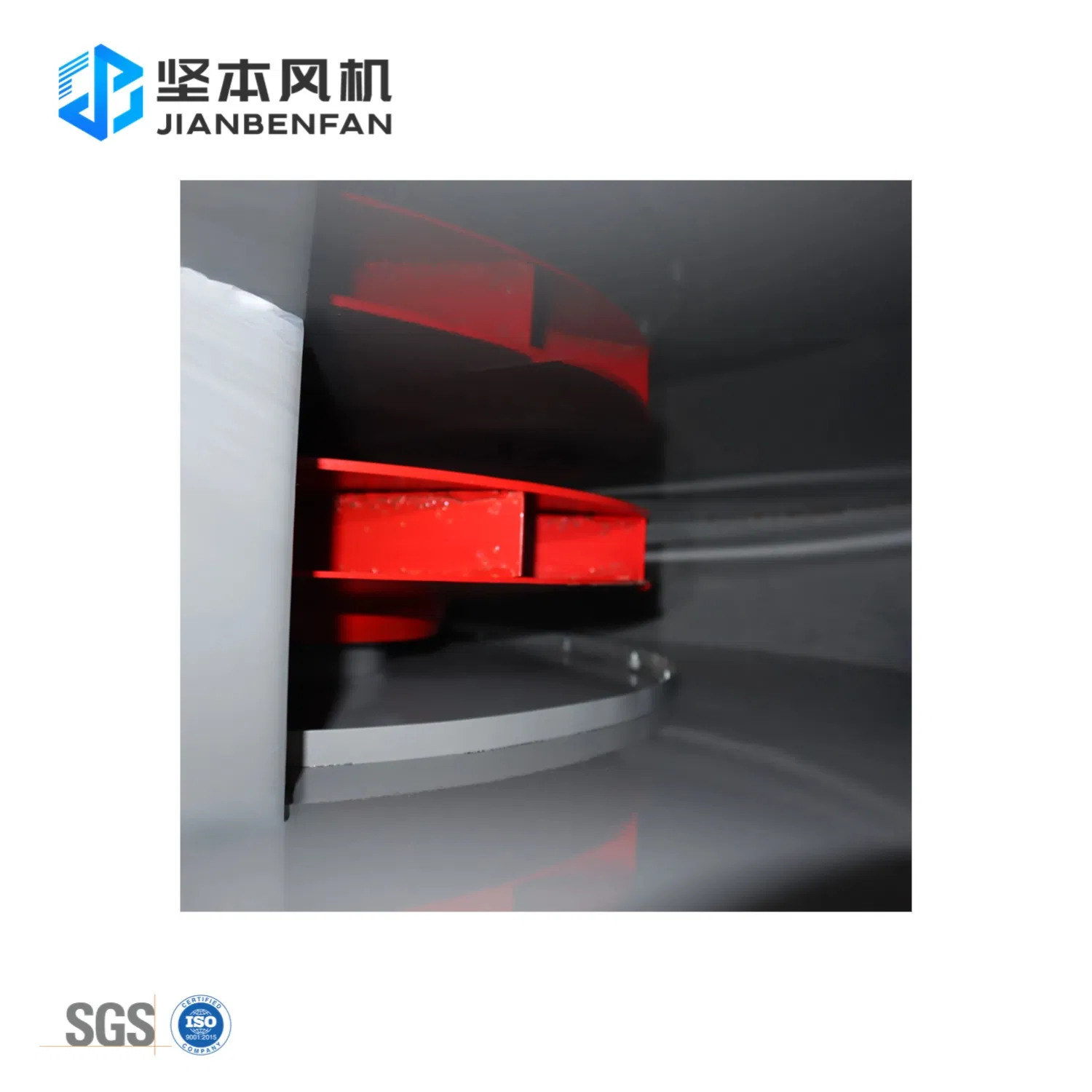

⚡ Aerodynamic Performance The impeller features an optimized backward-curved design, providing a stable pressure curve and high static efficiency, reducing energy consumption.
🔥 Temperature Resistance Fabricated from high-strength manganese steel (16Mn) or alloy steel, it withstands temperatures up to 250°C and resists fly ash abrasion.
🛡️ Robust Construction The scroll casing is made of thickened carbon steel with reinforced ribbing to convert velocity into pressure smoothly and reduce turbulence.
❄️ Thermal Protection Equipped with an integrated cooling bearing box (air or water-cooled) to ensure bearings operate within safe limits during long-term service.
Y6-30 Boiler Blower System
⚙️ Product Parameters
Model (NO.) Speed (r/min) Power (KW) Volume (m³/h) Total Pressure (Pa) Evaporation (t/h) Voltage (V)
3.523500.75-2655-1192853-7270.2220-480
4.322601.5-21169-21251206-10200.2220-480
4.822502.2-21619-29441490-12650.5220-480
5.423003-22202-39632157-18330.5220-480
6.521504-5.52926-49452383-20201220-480
7.51800/19007.5-115000-87712736-21962220-480
8.6185018.5-229494-172623226-27364220-480
📐 Fan Orientation & Transmission

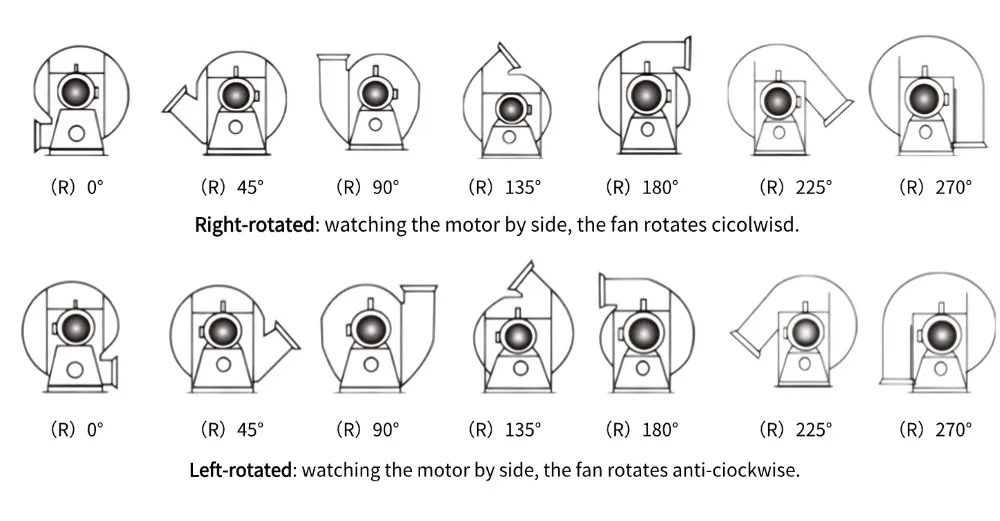

Fan Direction Diagram

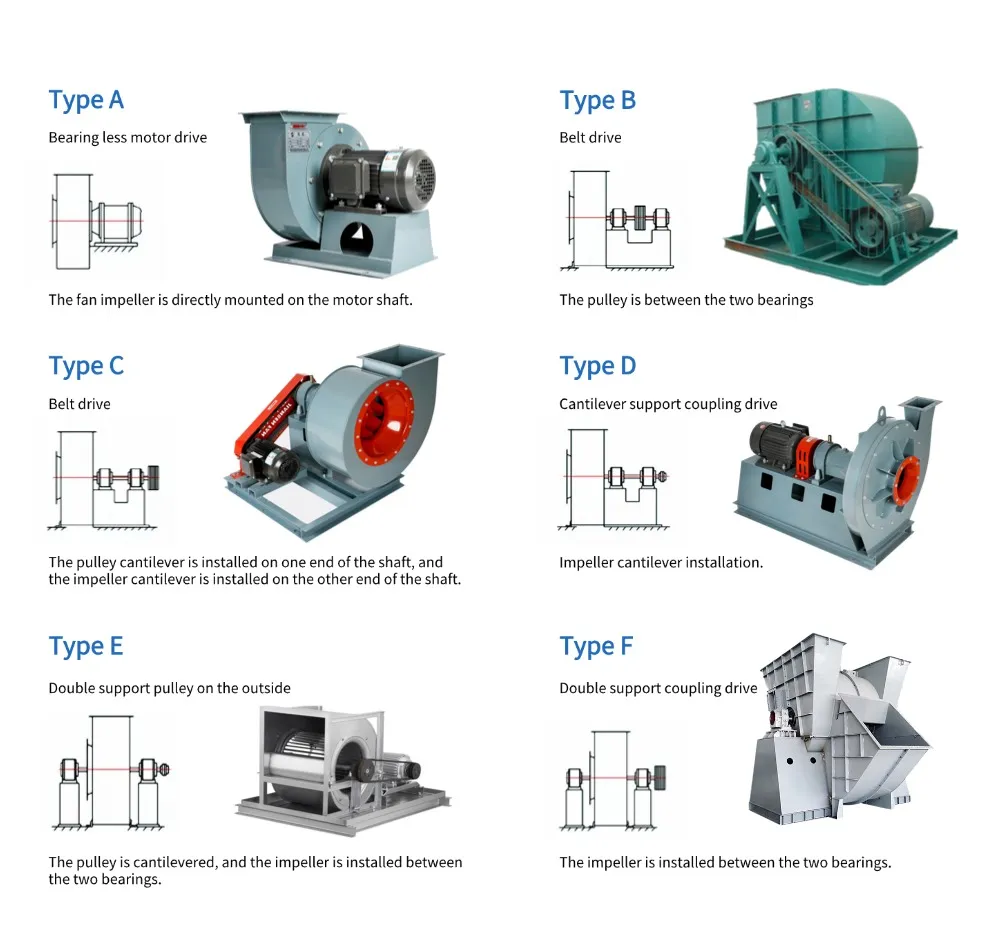

Transmission Modes
🏭 Manufacturing Excellence

With over 20 years of industry experience, we specialize in the R&D and manufacturing of centrifugal fans, axial flow fans, and boiler fans. Our facility includes a dedicated testing laboratory and holds ISO9001 certification.

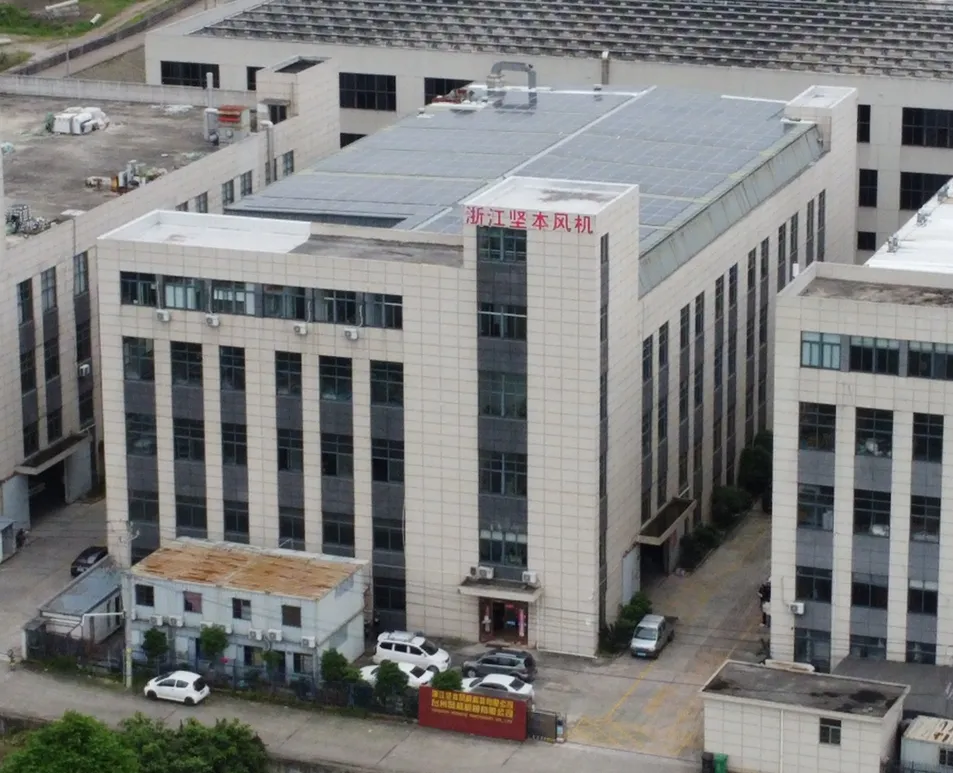

Factory Overview

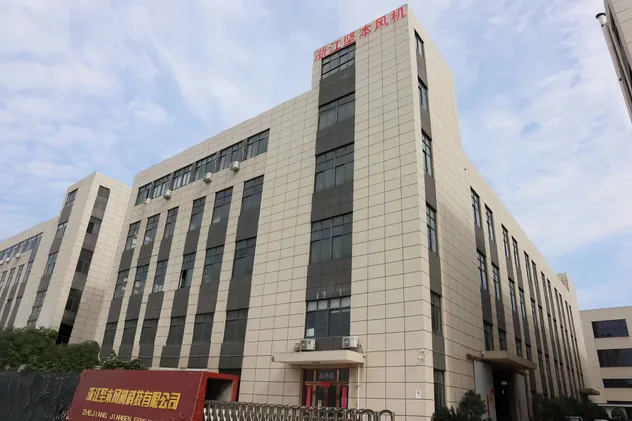

Workshop 1

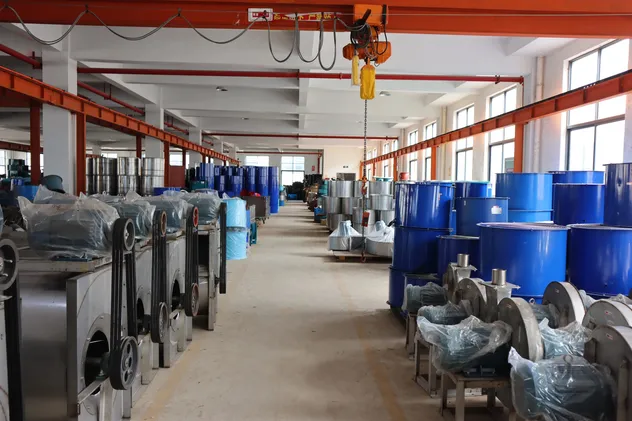

Workshop 2

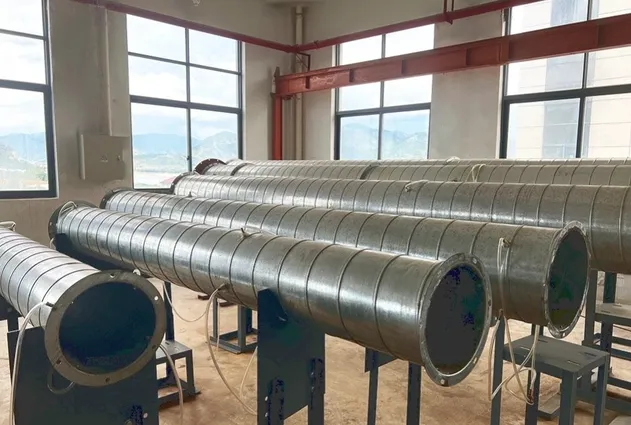

Equipment

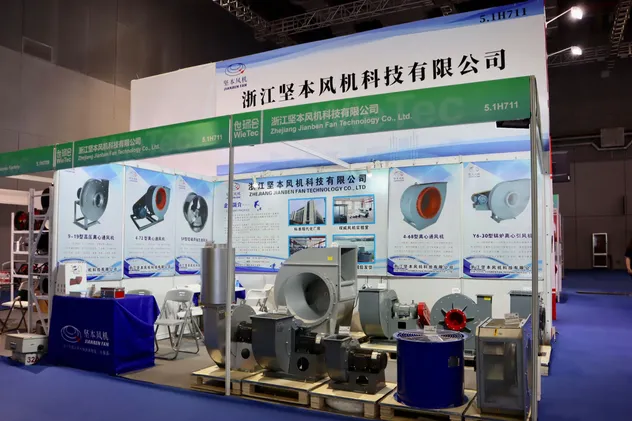

Production
📜 Certifications & Packaging
Certificates
Packaging
❓ Frequently Asked Questions
What are the main applications for the Y6-30 series fans?
These fans are specifically designed for industrial boilers ranging from 0.5 to 35 tons/hour, particularly those equipped with smoke and dust removal systems for efficient flue gas extraction.
Can these fans handle high-temperature environments?
Yes, the induced draft fans are built with specialized materials and integrated cooling systems, allowing them to operate reliably in temperatures up to 250°C.
What transmission modes are available for this series?
We offer two main types: Type C (Belt drive for easy speed adjustments) and Type D (Coupling direct drive for high reliability and lower maintenance).
How do you ensure the durability of the fan impellers?
Impellers are fabricated from high-strength 16Mn manganese steel or alloy steel and undergo G6.3 grade dynamic balancing to minimize vibration and wear.
Do you support customization for specific working conditions?
Yes, we provide OEM and ODM services. Our engineers use professional selection software to provide customized designs and drawings based on your actual working parameters.
Are standard models available for immediate shipment?
We maintain a sufficient inventory of standard products. For non-standard customized fans, we work to meet your required delivery schedule as efficiently as possible.
