Containerized Solar Mobile Borehole Brackish Well Salt Sea Water Industrial Reverse Osmosis RO Filtration Purification System Seawater Desalination Treatment

1 / 5

Containerized Solar Mobile Borehole Brackish Well Salt Sea Water Industrial Reverse Osmosis RO Filtration Purification System Seawater Desalination Treatment

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	HY-CWRO-1m3/hr-50m3/hr	Capacity	6m3/Hr
Productivity	6000L/Hr	Recovery Rate	55%-60%
Incoming Water	Salt Borehole Seawater	Treated Water	For Drinking or Irrigation
Frame Structure	Stainless Steel 304/316	RO Membrane	Vontron
Water Pump	CNP or Other Imported Brand	HS Code	842121

Product Description

🏗️

Containerized Solar Mobile Borehole Brackish Well Salt Sea Water Industrial Reverse Osmosis RO Filtration Purification System

The containerized water treatment system is a fully integrated, modular solution housed in a standard shipping container (20ft or 40ft). It is suitable for treating seawater, brackish water, groundwater, river water, or tap water. The system can be configured with reverse osmosis (RO), ultrafiltration, UV sterilization, softening, and chemical dosing modules. Plug-and-play design enables fast deployment and immediate operation.

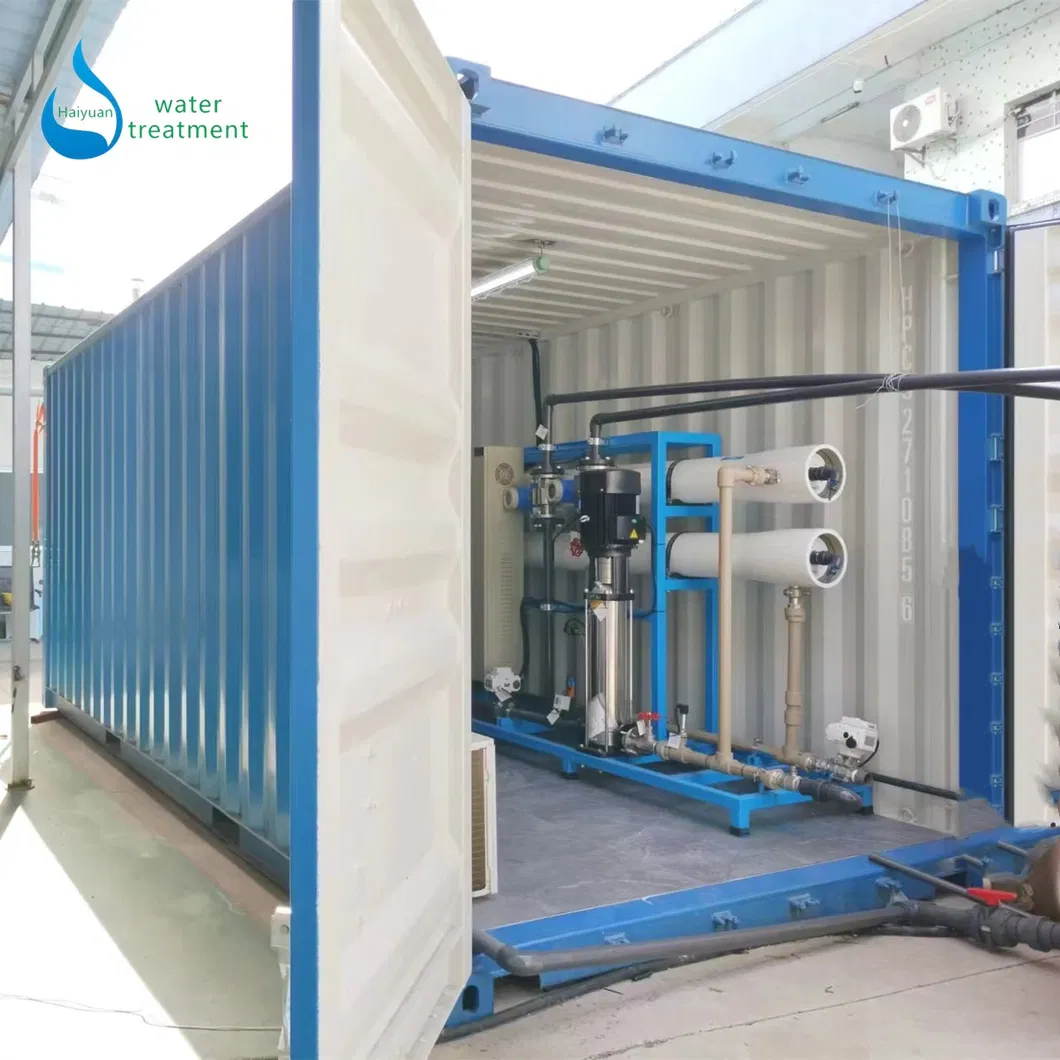

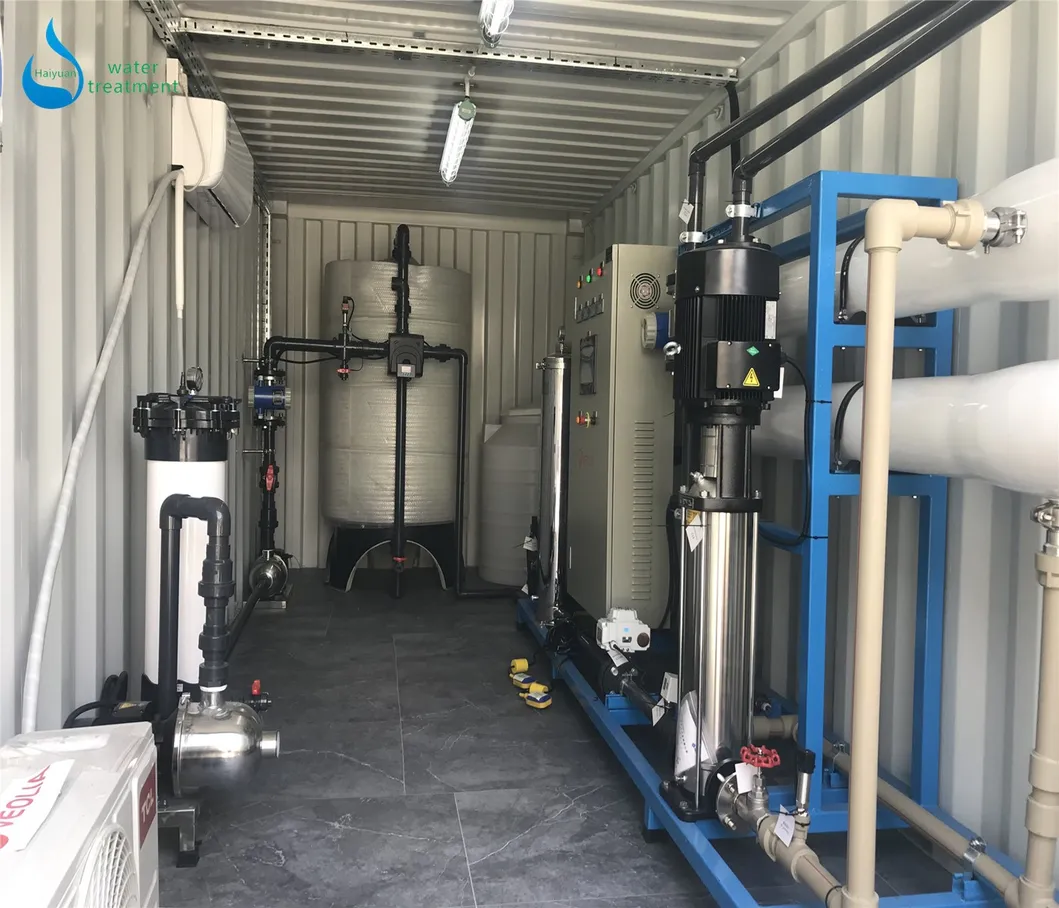

6000L/hr Containerized Reverse Osmosis (Industrial Use)

HY-RO-6T/hr Container Reverse Osmosis Parameters
Flow rate	144T/day	Recovery rate	60%
Applicable power	380V/50hz 3 phase	Rated power	9.9KW
Feedwater TDS	2800ppm	Freshwater TDS	31.6ppm
High pressure	17.3bar	Operating Temp	5-45ºC

Flow Process Introduction

🔄

Process Chain: Raw water tank → Feed water pump → Multi-media filter → Scale prevention and dosing device → Precision filter → High-pressure pump → RO system → Product water tank (All components installed within the container).

Process Stage	Equipment	Function Description
Raw Water Storage	Raw Water Tank	Stores borehole, river, or tap water source.
Pretreatment	Multi-media Filter	Removes suspended solids, sand, and rust.
Antiscalant	Dosing Device	Prevents scaling on RO membranes.
Membrane Protection	Precision Filter	Filters fine particles (5 microns).

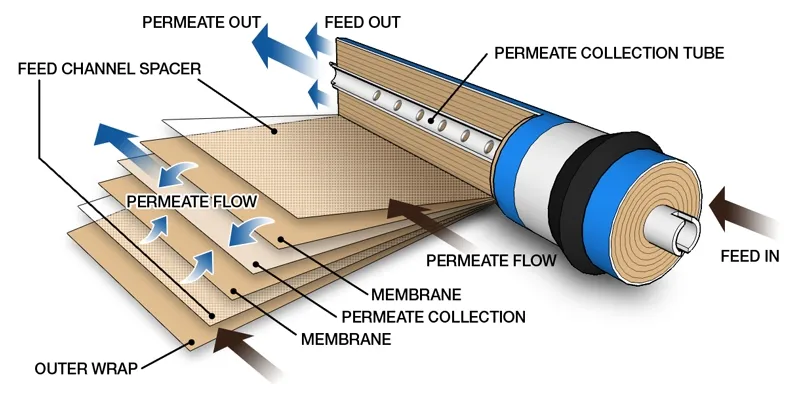

Separation	RO System	Removes 97-99% of dissolved salts and heavy metals.
Storage	Product Water Tank	Stores purified water for use.

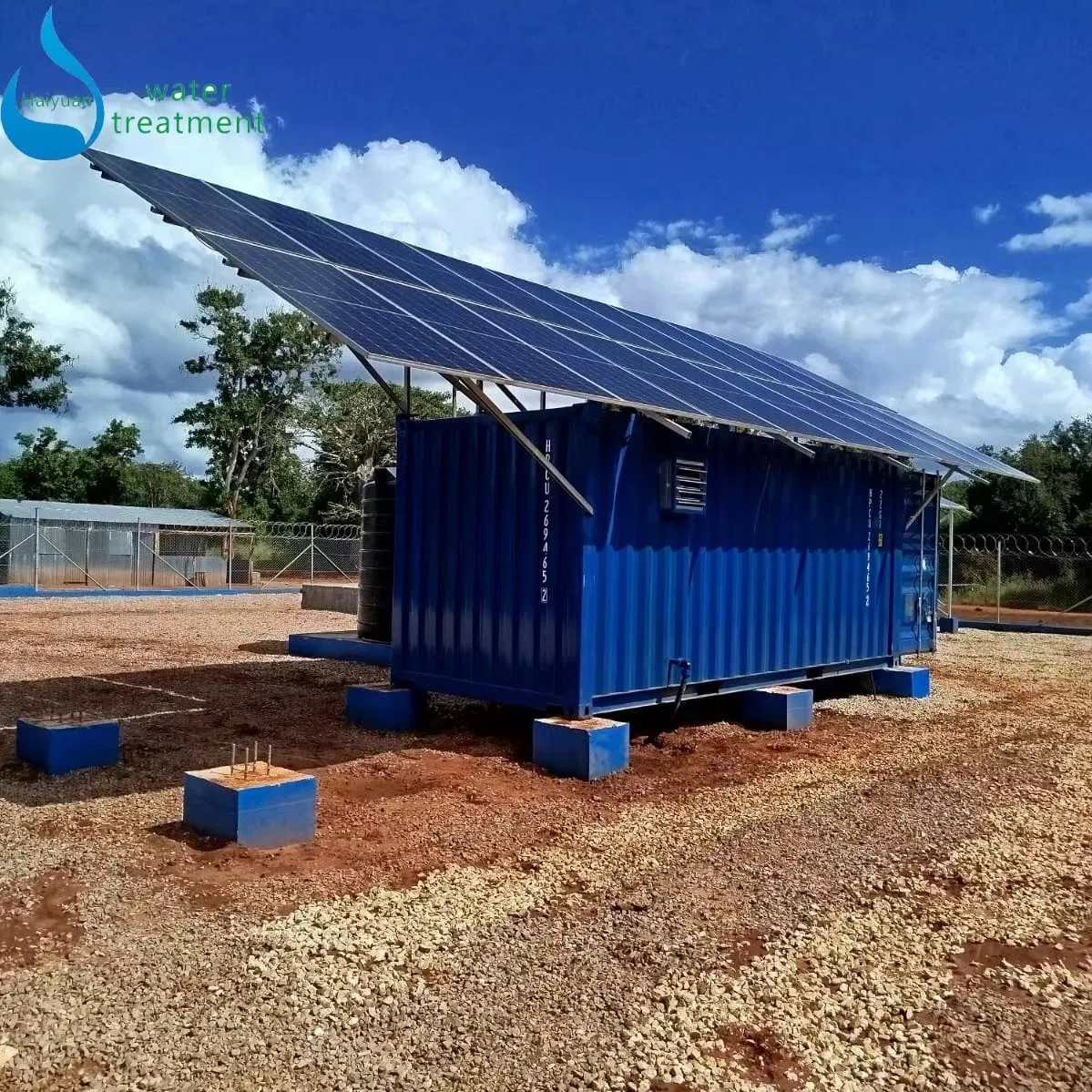

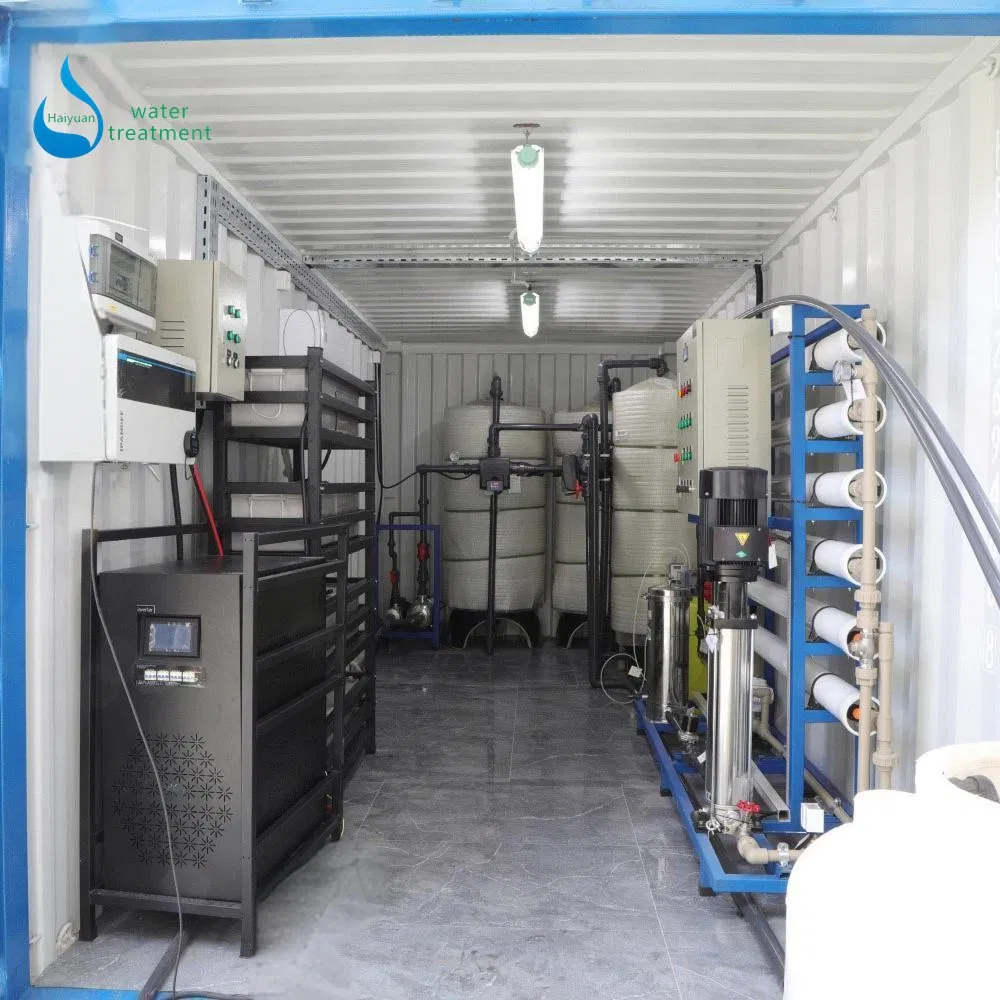

3000L/hr Solar Powered Containerized RO System

☀️

Solar Components Included:

High-efficiency Solar Panels (20 pcs)
Solar Charge Controller
Battery Storage (8PCS, 24KW)
Power Inverters (20KW / 25KVA)

Application Scenarios

Islands & Remote Areas: Reliable freshwater supply for off-grid communities.
Industrial Zones & Factories: Suitable for process water, boiler water, and cooling water.
Agriculture & Aquaculture: Improves water usage efficiency in irrigation and farming.
Hotels & Resorts: Provides high-quality potable water for luxury sites.
Ships & Offshore Platforms: Solves freshwater shortage on oil rigs or long voyages.

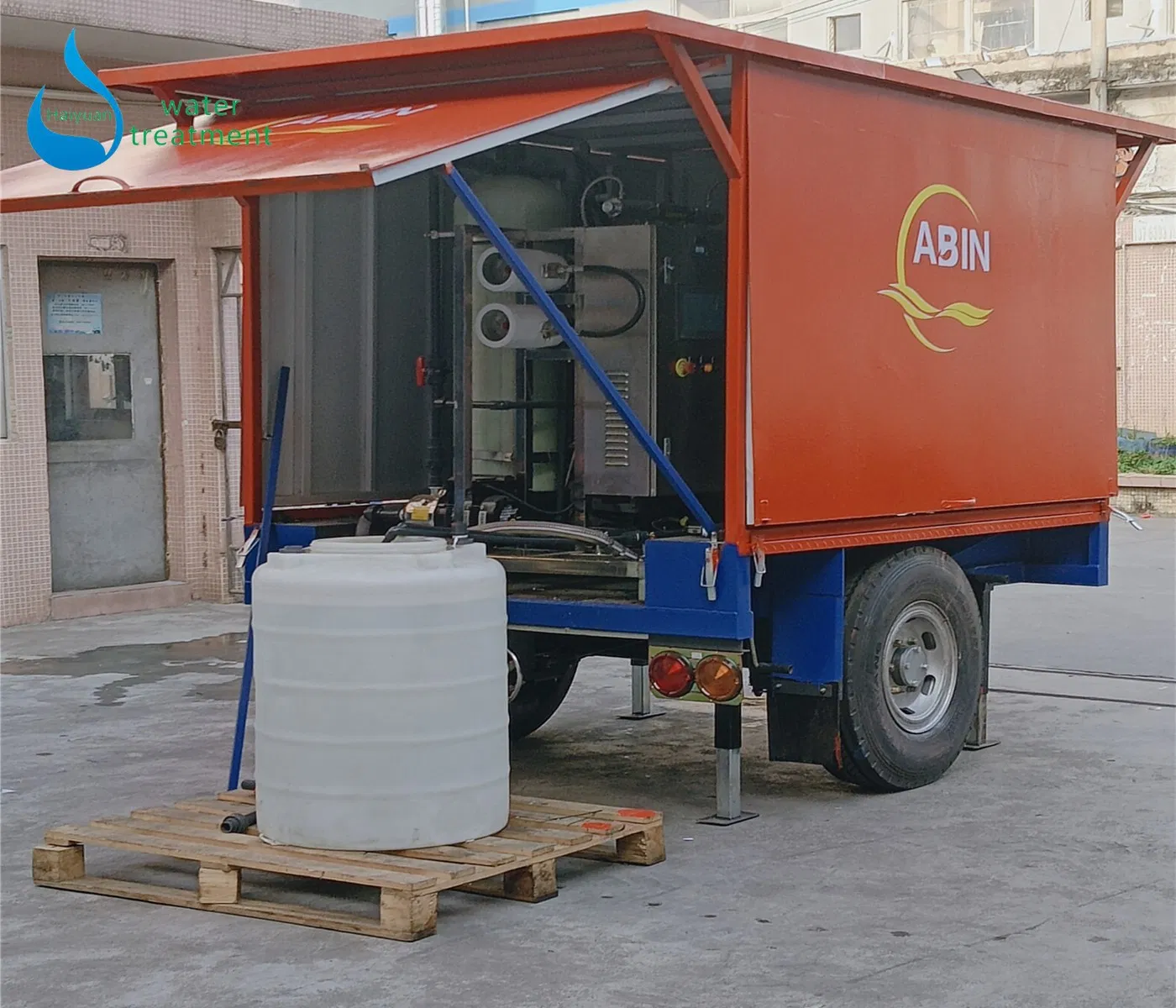

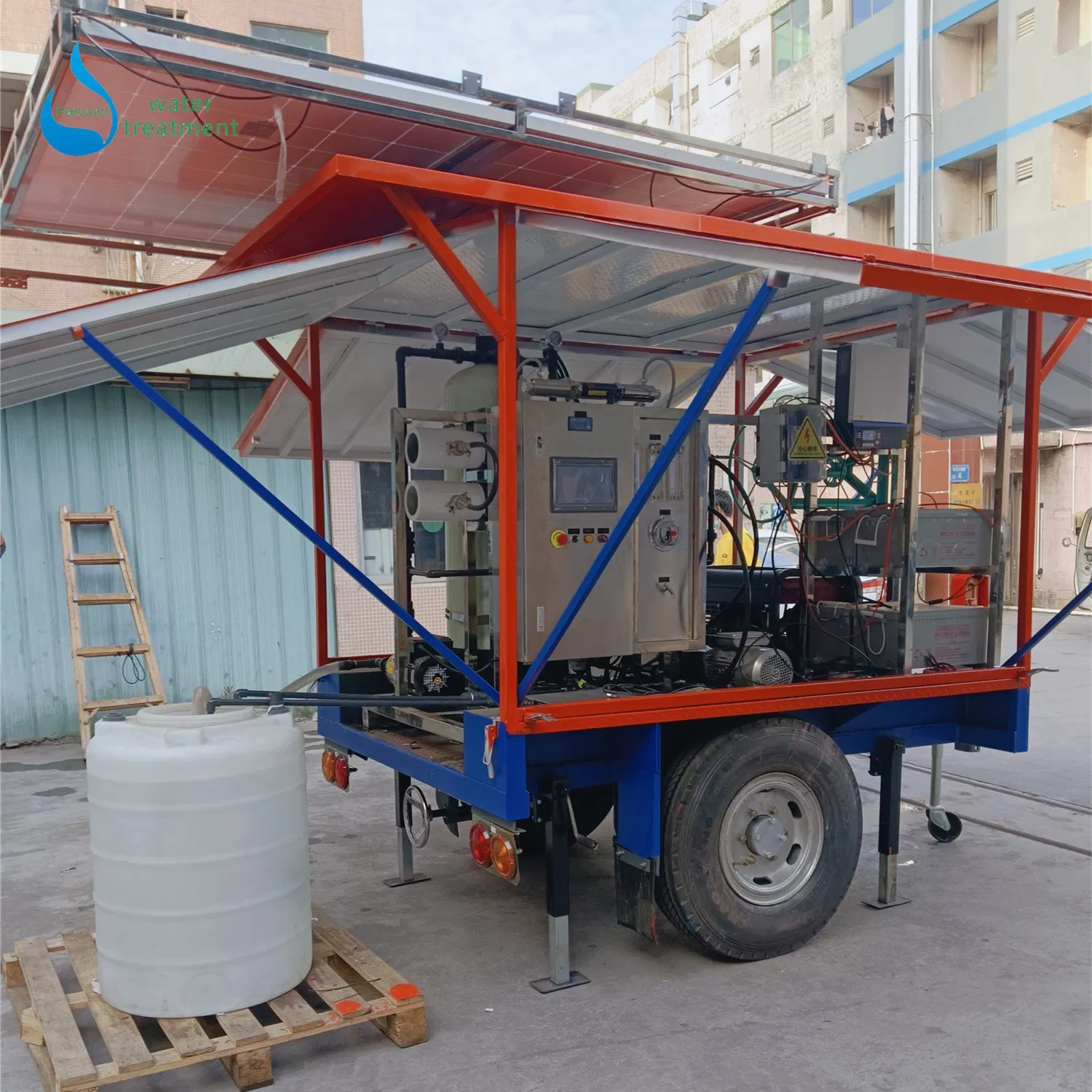

Mobile Trailer Desalination (250L/hr)

Key Advantages

Modular & Mobile Design: ISO-standard containers for easy transport and rapid installation.
All-in-One Integration: Includes pretreatment and main treatment units ready to run.
Flexible Source Adaptability: Handles seawater, brackish water, and industrial surface water.
Smart Control System: Fully automatic PLC control with touchscreen and remote monitoring.
Low Maintenance: Equipped with automatic CIP cleaning and international brand components.

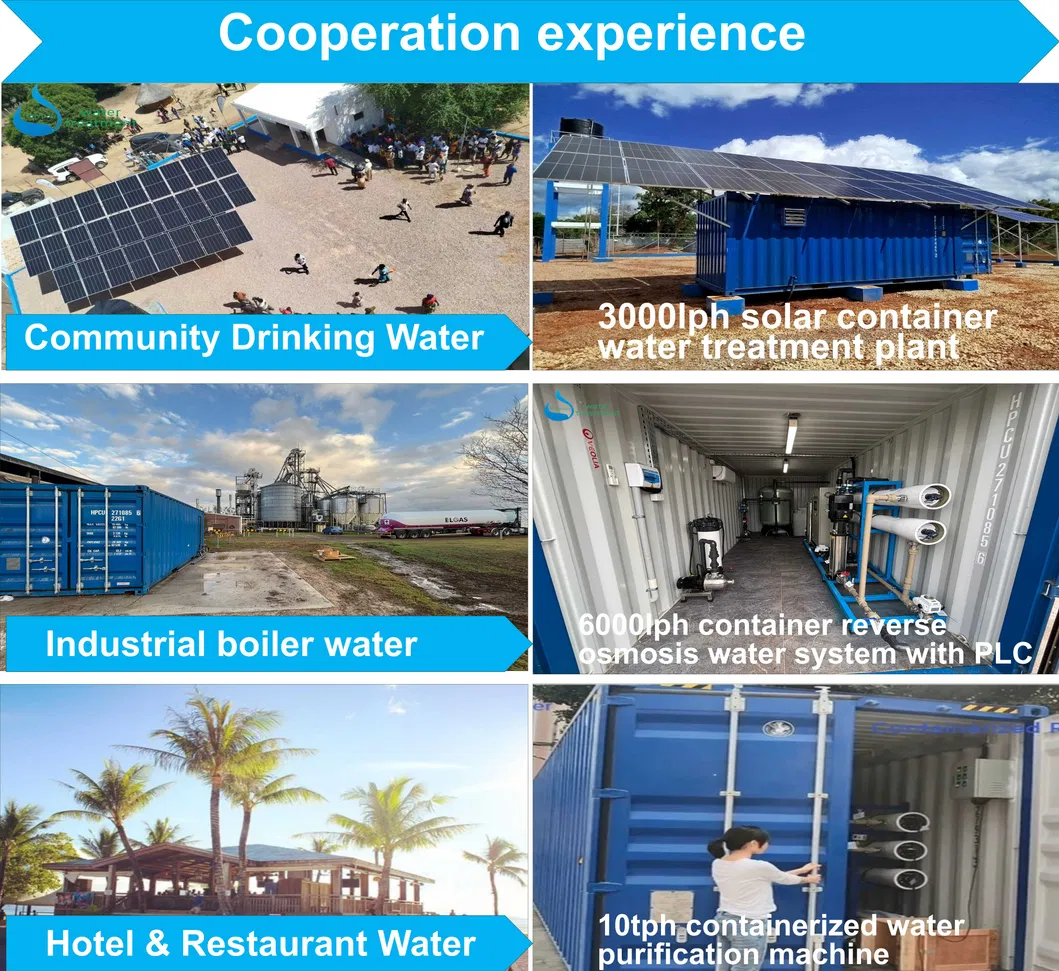

Case Studies & Certifications

Buying Guide

📋

To receive a tailored quote, please confirm the following:

Untreated water source: Well water, seawater, or other? (Please provide test report).
Treated water purpose: Daily human use (TDS < 500ppm) or industrial use?
Output capacity: How many liters or gallons per hour are required?
Local power supply: 380V/50Hz/3Ph or other?

Frequently Asked Questions

Q1: What types of water can the containerized system treat? The system is versatile and can be configured to treat seawater, brackish water, groundwater (boreholes), river water, and municipal tap water.

Q2: How difficult is the installation process for these units? The system features a "plug-and-play" design. Since all components are pre-installed in a standard ISO container, you only need to connect the water inlet, outlet, and power supply.

Q3: What is the salt rejection rate of the RO membrane? The system utilizes high-quality RO membranes that typically achieve a salt rejection rate between 97% and 99%, depending on the feed water quality.

Q4: Can the system operate in remote areas without a power grid? Yes, we offer an optional solar-powered configuration including solar panels, charge controllers, and battery storage to support fully off-grid operations.

Q5: Is the system fully automated? Yes, it is equipped with a smart PLC control system and a touchscreen interface, allowing for fully automatic operation and remote monitoring.

Q6: What is the typical lifespan of the components? By using top-tier brands like Vontron and CNP, and including automatic CIP cleaning systems, the equipment is built for long-term industrial durability with regular maintenance.
