China Laboratory Ultrapure Water Purification System, HPLC/IC/Ms Ultra Pure Water Equipment, Medical Clinical Ultra Pure Water System Supplier,

Customization: Available
After-sales Service: Engineers Available to Service Machinery Overseas, Online Support,video Technical Support, Installation Manual Provided
Application: Biotechnology Industry, Chemical Industry, Clinical Diagnosis, Food and Beverage Industry, Food Safety, Forensic Science, Pharmaceutical Industry, Water Treatment Industry, Water Treatment for Laboratory

Product Description

Basic Information

Model NO.JR-HHUP
Cleaning MethodChemical Cleaning
Filtration Capacity10-10000L/H
MaterialPolypropylene, PTFE, PVDF, Stainless Steel
Operating Pressure0.3-0.4 MPa
Conductivity10 Us/Cm Max
Ion Removal RateAbove 99.99%
Control ModeFully Automatic
CertificationISO9001, CE
Power Supply220V 50Hz

Packaging & Delivery

Package Size78.00cm * 145.00cm * 61.00cm
Gross Weight200.000kg

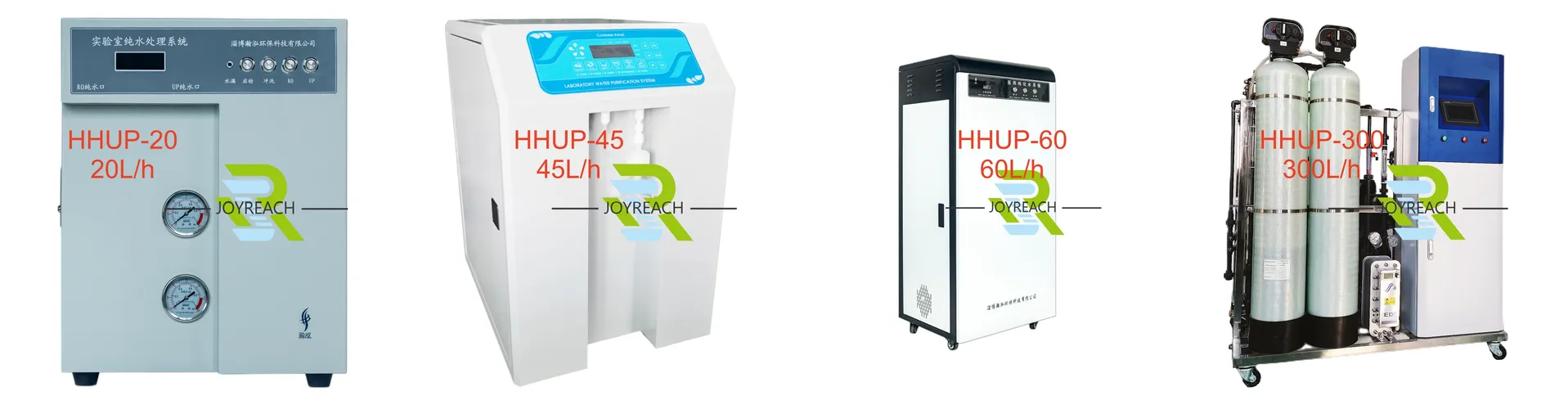

Laboratory Ultrapure Water System Header

Product Description

HHUP Ultra Pure Water Purification System For Laboratory

This equipment is specifically designed for the production of high-standard ultrapure water. Utilizing advanced technologies such as pretreatment, reverse osmosis (RO), and mixed-bed deionization or EDI, it effectively removes impurities, ions, microorganisms, and pyrogens from the water. The system delivers consistent water quality, meeting a full range of laboratory needs—from routine glassware washing to high-sensitivity instrumental analysis (e.g., HPLC, ICP-MS, PCR).

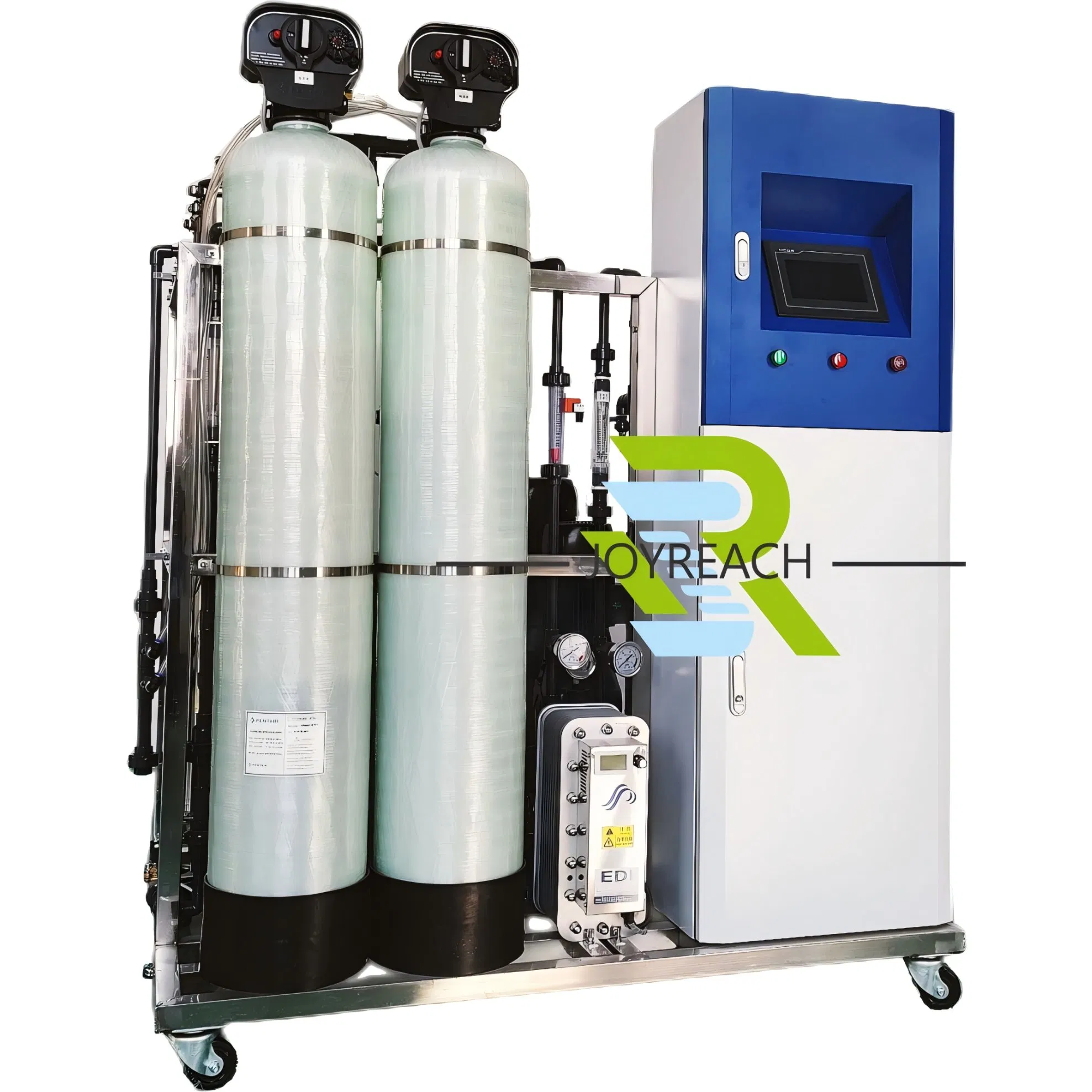

HHUP System Unit

Process Flow Diagram

Raw Water EnteringIntegrated FiltrationPrecision FiltrationHigh Pressure PumpReverse Osmosis SystemPure Water Storage TankPure Water PumpUV SystemUltrapurification ColumnWater Points

Technical Specifications

Name Level A grade Level B grade Level C grade
PH 25C--5-7.5
Conductivity 25C mS/m <=0.010.100.5
Oxidizable substance mg/L <=-0.080.4
Absorbancy 254nm <=0.0010.01-
Evaporation residue <=-12
Solubility silicon SiO mg/L <=0.010.02-

Main Characteristics

  • Automatic water output with no special maintenance required.
  • Water protection system with automatic shutdown function.
  • Equipped with RO membrane and automatic reverse washing.
  • Imported reverse osmosis membrane ensures stable performance.
  • Real-time monitoring for UP and RO water quality.
  • Voltage overload protection & Pressure monitoring.
  • Built-in water tank with standby mode for low water.
  • Modular design for easier and more convenient maintenance.
  • Transparent pretreatment housing for filter inspection.

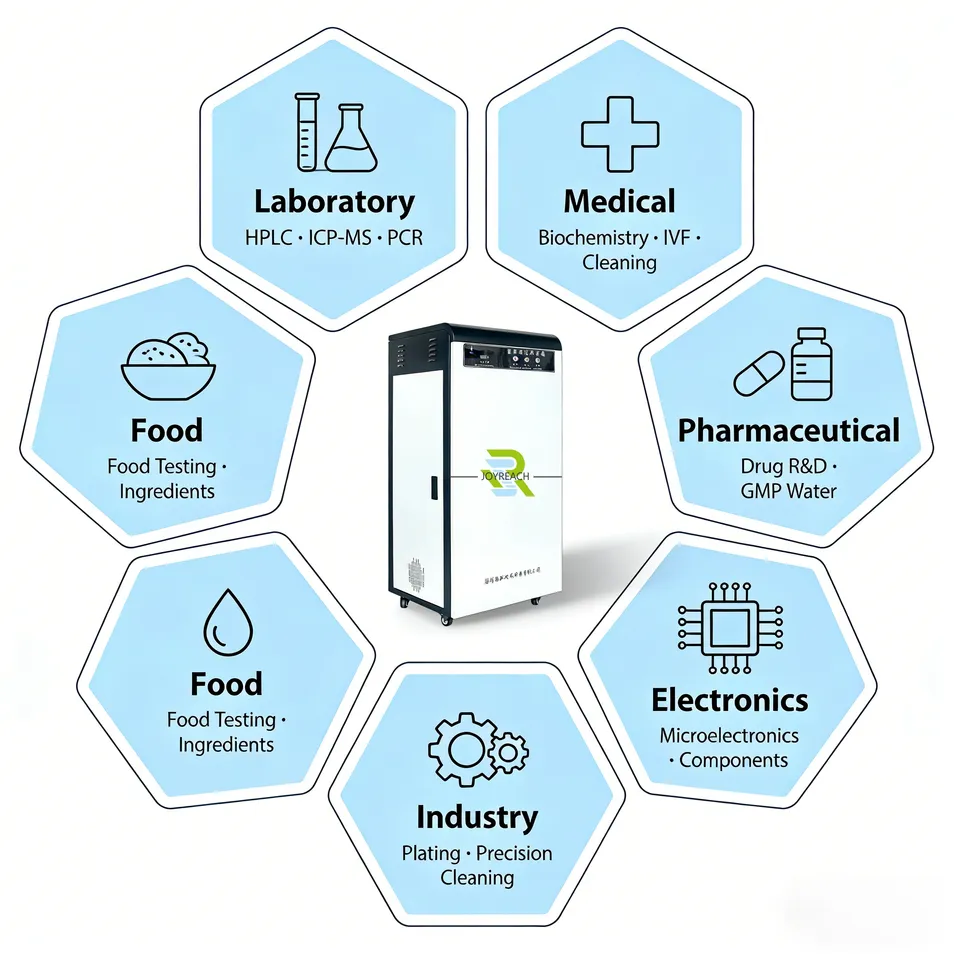

Applications

High Performance Liquid Chromatography (HPLC)
Mass Spectrometry & ICP-MS
Atomic Absorption & Emission Spectrometry
PCR Applications and Analysis
Trace Metal Analysis
Preparation of Analytical Reagents

Certifications & Quality

Certifications
Factory Environment

Our Professional Advantages:

1. Medical device production license and disinfection product hygiene license.

2. Possession of 4 invention patents and 16 utility model patents.

3. ISO9001, ISO45001, ISO14001, ISO13485, and CE certifications.

After-Sales Service

Support Policy: We offer free online technical support, detailed manuals, and video guidance for international orders.
Quality Assurance: All machines are fully tested under standard conditions before shipment to ensure reliable performance.

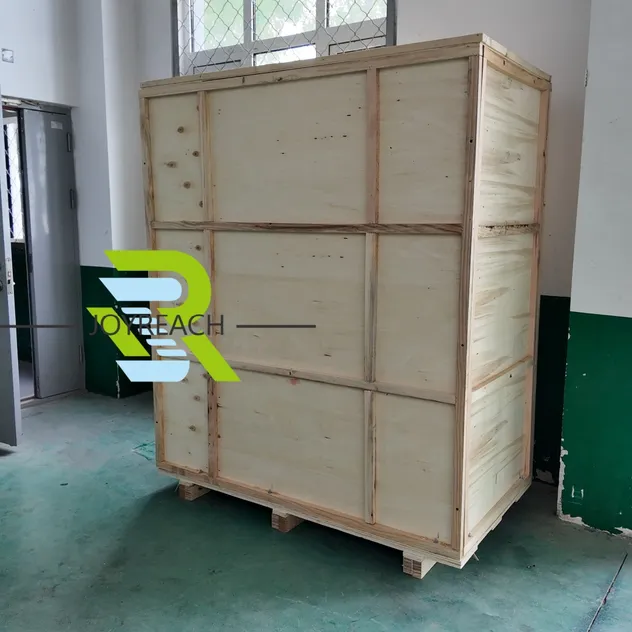

After Sales 1

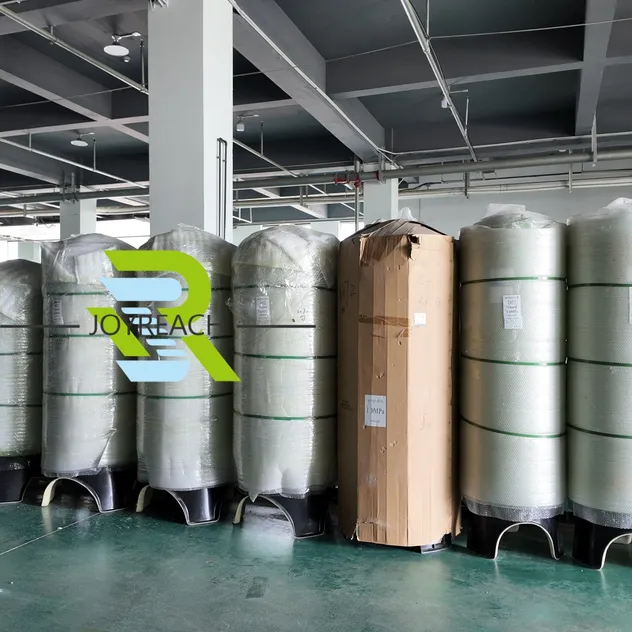

After Sales 2
After Sales 3

Frequently Asked Questions

What water output capacities are available?
The system is customizable to meet your specific needs, with capacities ranging from 20L/H to 10,000L/H.
What are the different stages of the purification system?
The system is available in 1-stage RO + DI configurations or 2-stage RO + EDI configurations, depending on the required water purity for your department.
Is the system difficult to maintain?
No, the system features a modular design for easy maintenance and includes automatic reverse washing functions to extend the life of the RO membrane.
Does the system monitor water quality in real-time?
Yes, the system is equipped with real-time monitoring for both UP (Ultra Pure) and RO (Reverse Osmosis) water quality, as well as pressure status.
What information is needed for a proper technical recommendation?
To suggest the best process, we need to know your required water usage, desired output capacity, feeding water pressure, and a feeding water test report if available.
Is the equipment safe against power fluctuations?
Yes, the system includes built-in voltage overload protection and an automatic shutdown function for water protection.
