Product Description

i

Basic Information

Model NO.

HYRO 45T/hr

Capacity

45m3/D

Source Water

Borehole/Sea Water 35000ppm

Product Water TDS

Less Than 700ppm

Recovery

35%-70%

Function

Water Purification

HS Code

842121

Production Capacity

50 PCS Per Year

Packaging & Delivery

Package Size

200.00cm * 140.00cm * 180.00cm

Gross Weight

600.000kg

★

Product Description

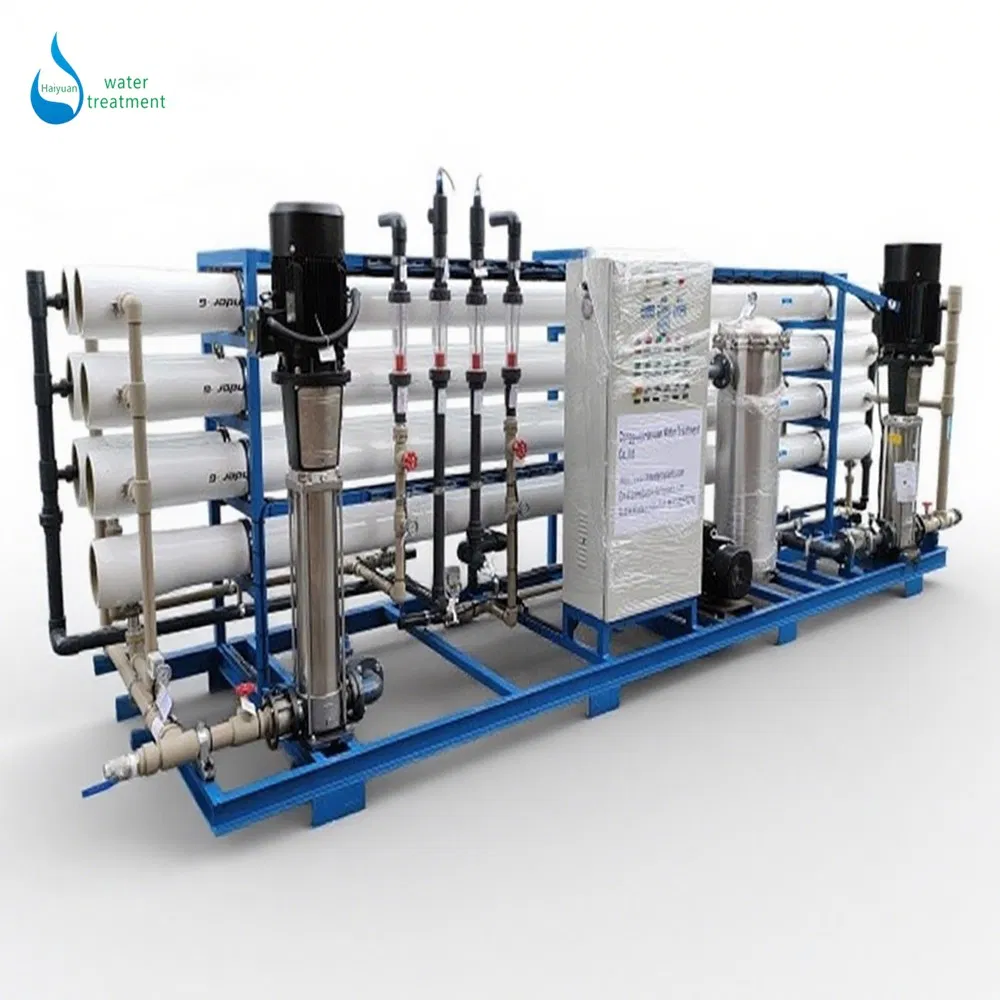

Large Scale Brackish Well Treatment RO Reverse Osmosis System

Reliable Purification | Custom-Built | High Efficiency

Our RO Water Desalination Treatment System is designed to remove salts, minerals, heavy metals, bacteria, and other impurities from seawater, brackish water, or well water. Using advanced reverse osmosis membrane technology, the system provides pure, safe water for drinking, industrial, or agricultural use.

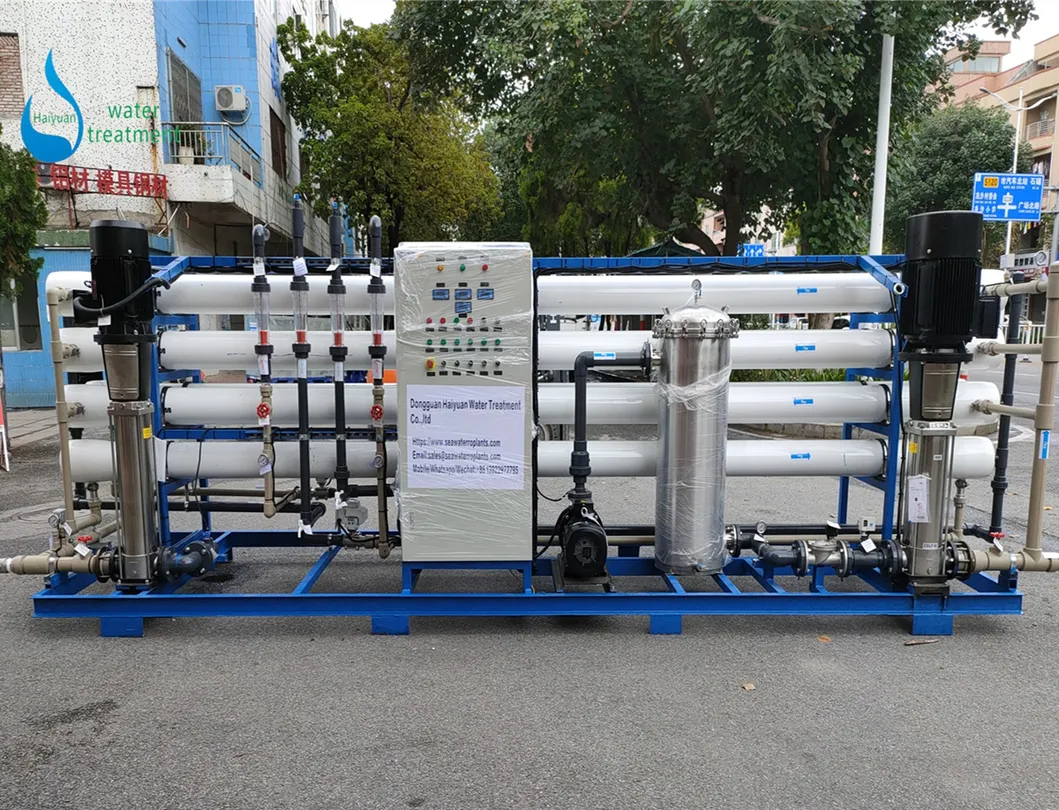

RO System 1

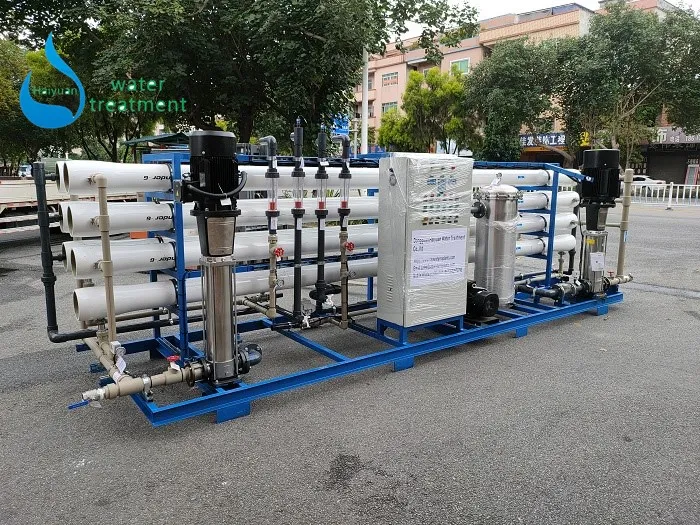

RO System 2

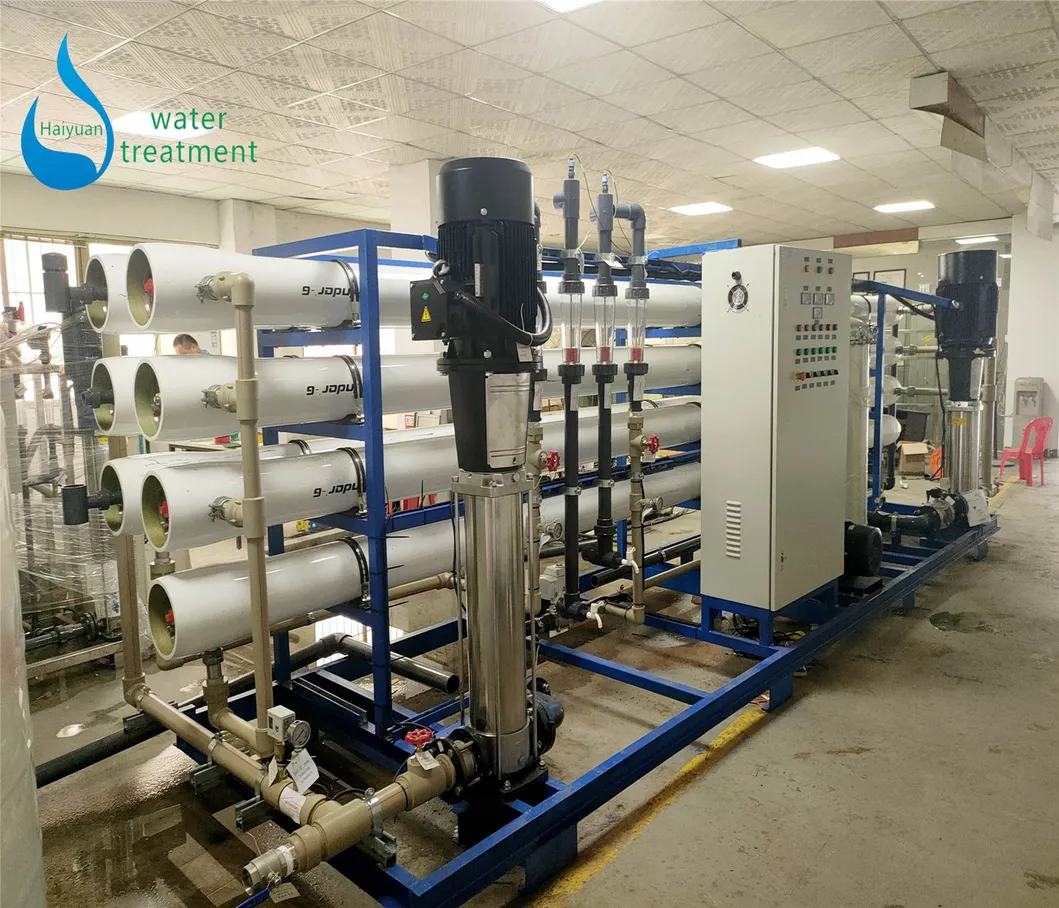

RO System 3

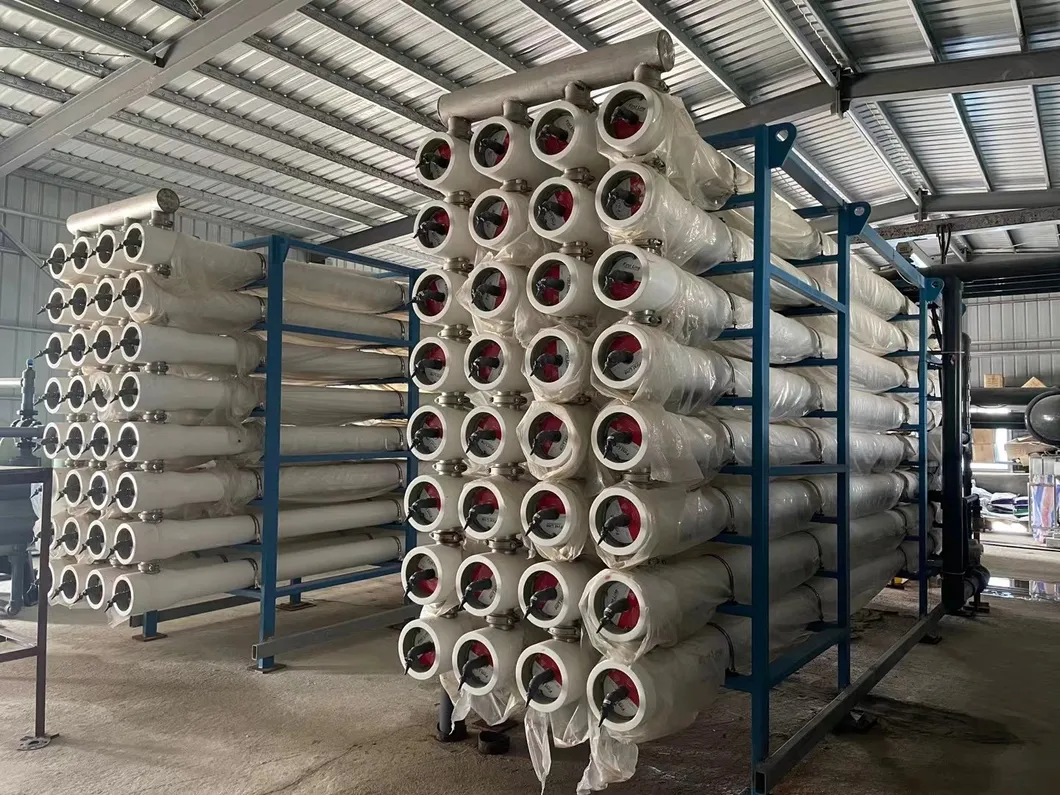

RO System 4

⚙

Technical Parameters

HY-RO-40T/hr System Specifications
Flow Rate	40T/hour	Recovery Rate	60%
Applicable Power	380V/50hz 3 Phase	Rated Power	54KW
Feedwater TDS	3500mg/L	Freshwater TDS	2.7ppm
Operating Temp	5-45ºC	RO Membranes	42pcs
Membrane Housing	8040×6 (300psi)	Drive	Variable-frequency Drive

➔

Process Flow Chart

Raw Water Tank → Booster Pump → Dosing Device → Precision Filter → High Pressure Pump 1 → First Stage RO (RO-1) → Intermediate Water Tank → High Pressure Pump 2 → Second Stage RO (RO-2) → Product Water Tank

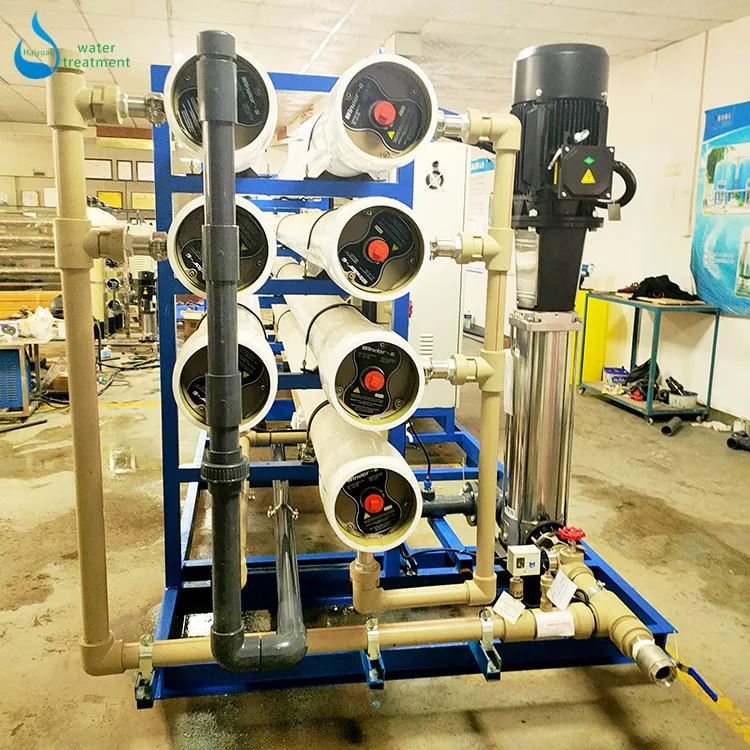

Component 1

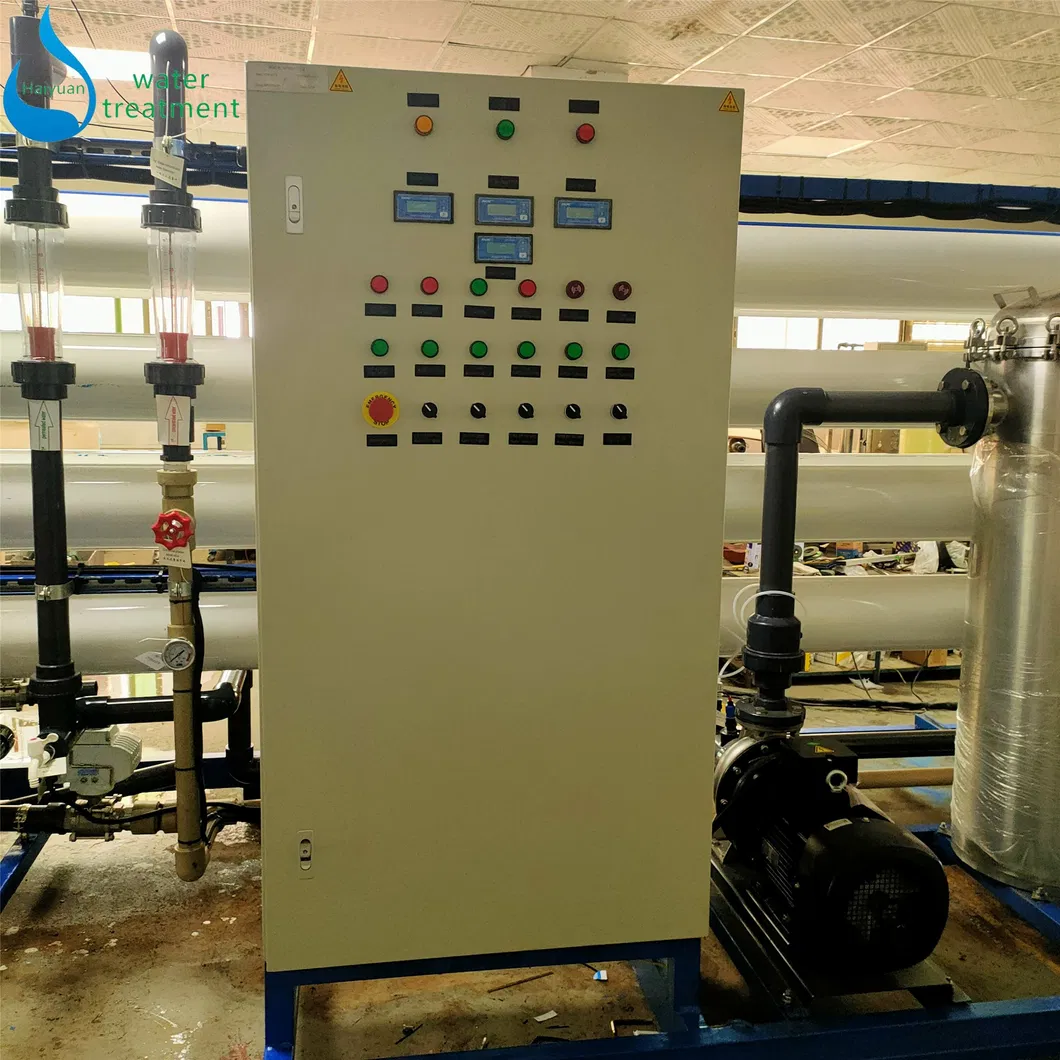

Component 2

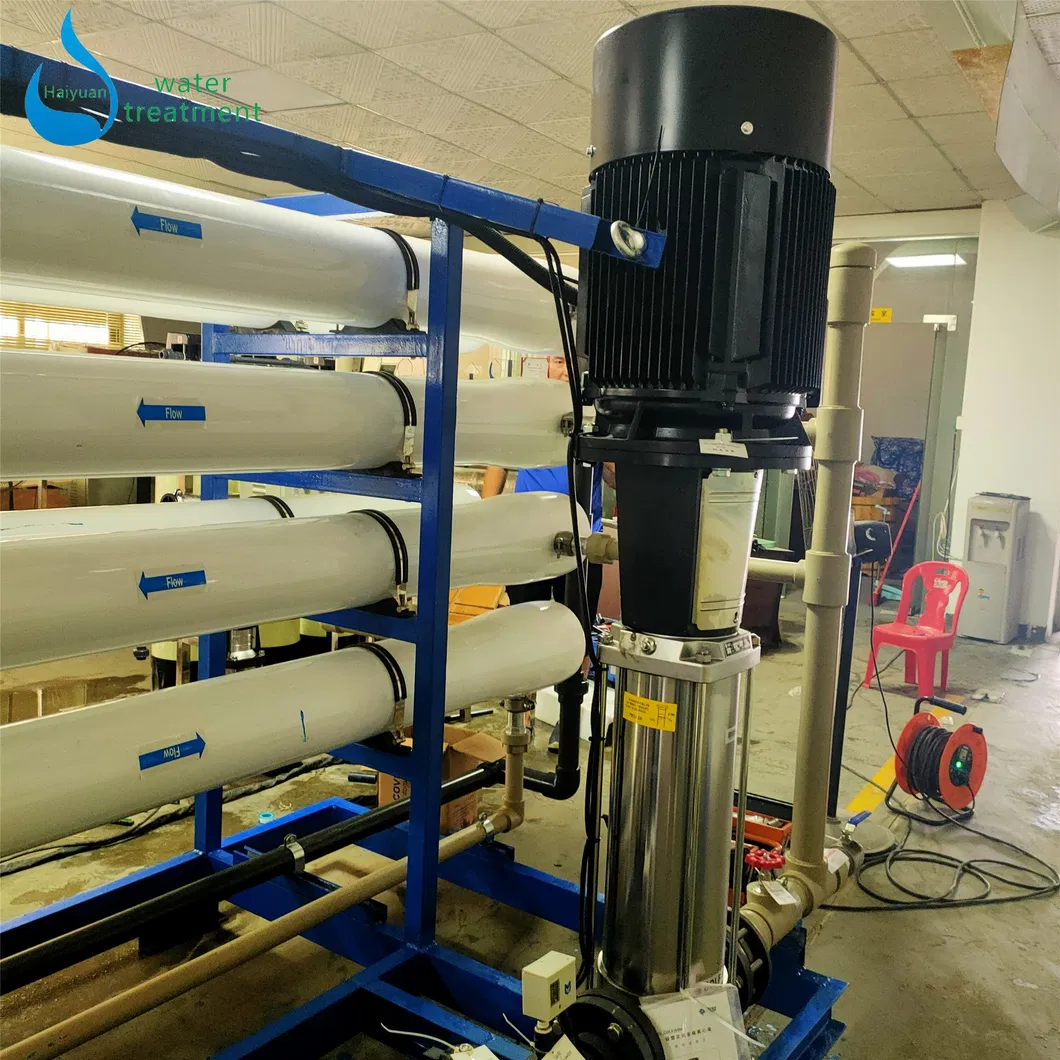

Component 3

High-Quality Components

Accessory	Specification
Reverse Osmosis Membrane	4040, 2 pcs (customizable)
Membrane Housing	1000 PSI, FRP
Multimedia Filter	Ø400 × 1600 mm, FRP
High Pressure Pump	SUS316, Imported brand
CIP Cleaning Device	Integrated Chemical System
Electric Components	International Famous Brand

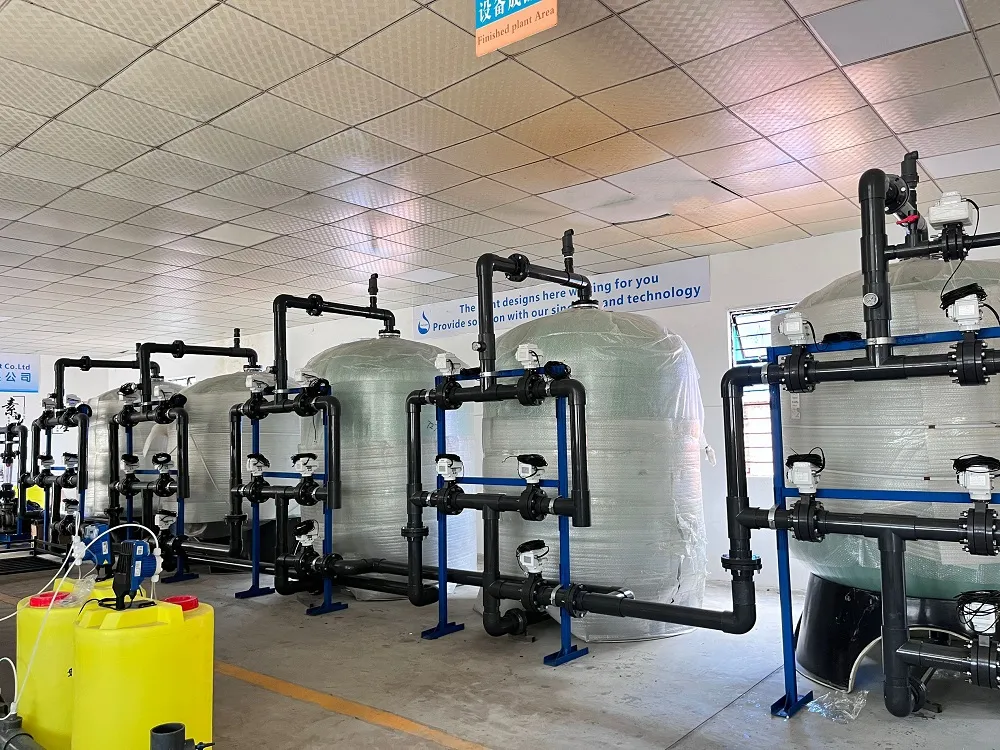

Water Softener

✔

Advantages & Applications

High Salt Rejection: Removes 99%+ of salts and minerals.
Energy Efficient: Optimized pressure design for low consumption.
Modular Design: Flexible configurations and containerized options.
Stable Output: Consistent water quality for all needs.

Application Areas

Drinking Water: For islands, resorts, and coastal villages.
Industrial: Manufacturing, cooling, and process water.
Agriculture: Greenhouse irrigation and safe crop watering.
Commercial: Fish farms and bottling plants.

◆

Customizable Options

Tailored solutions for various production capacities and environments:

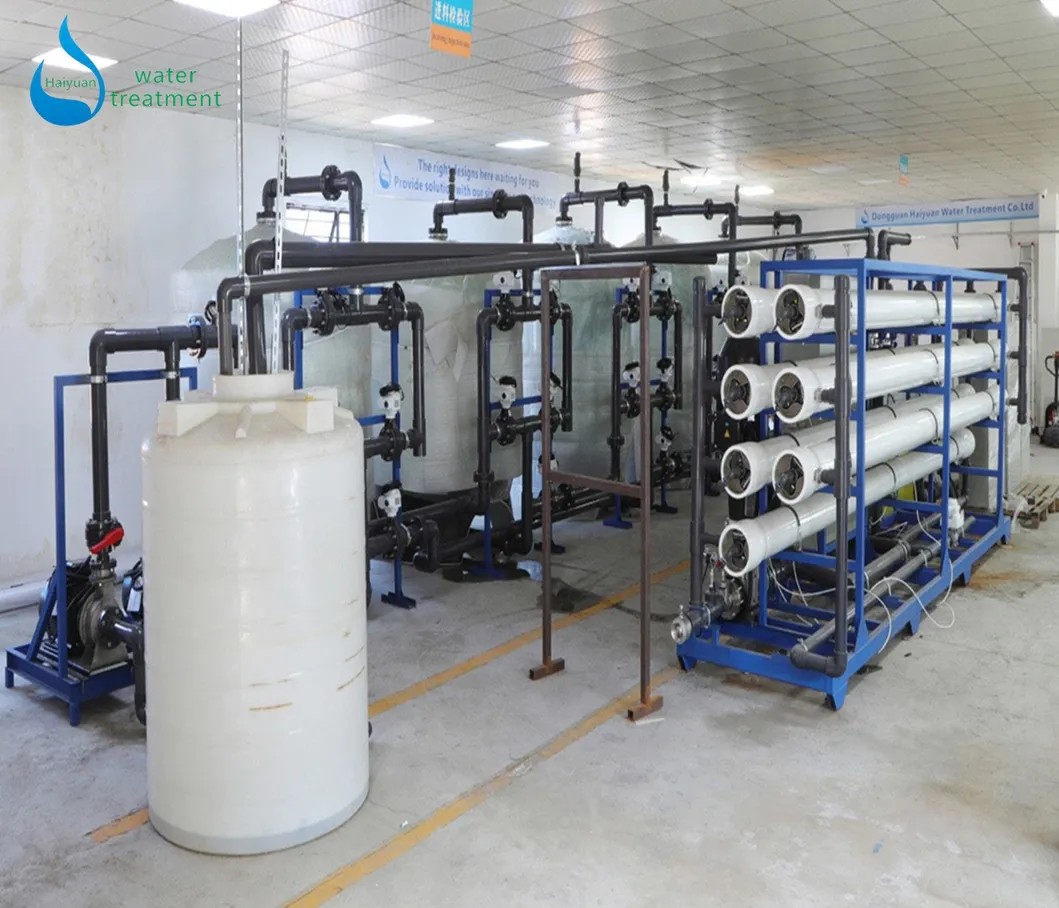

45T System

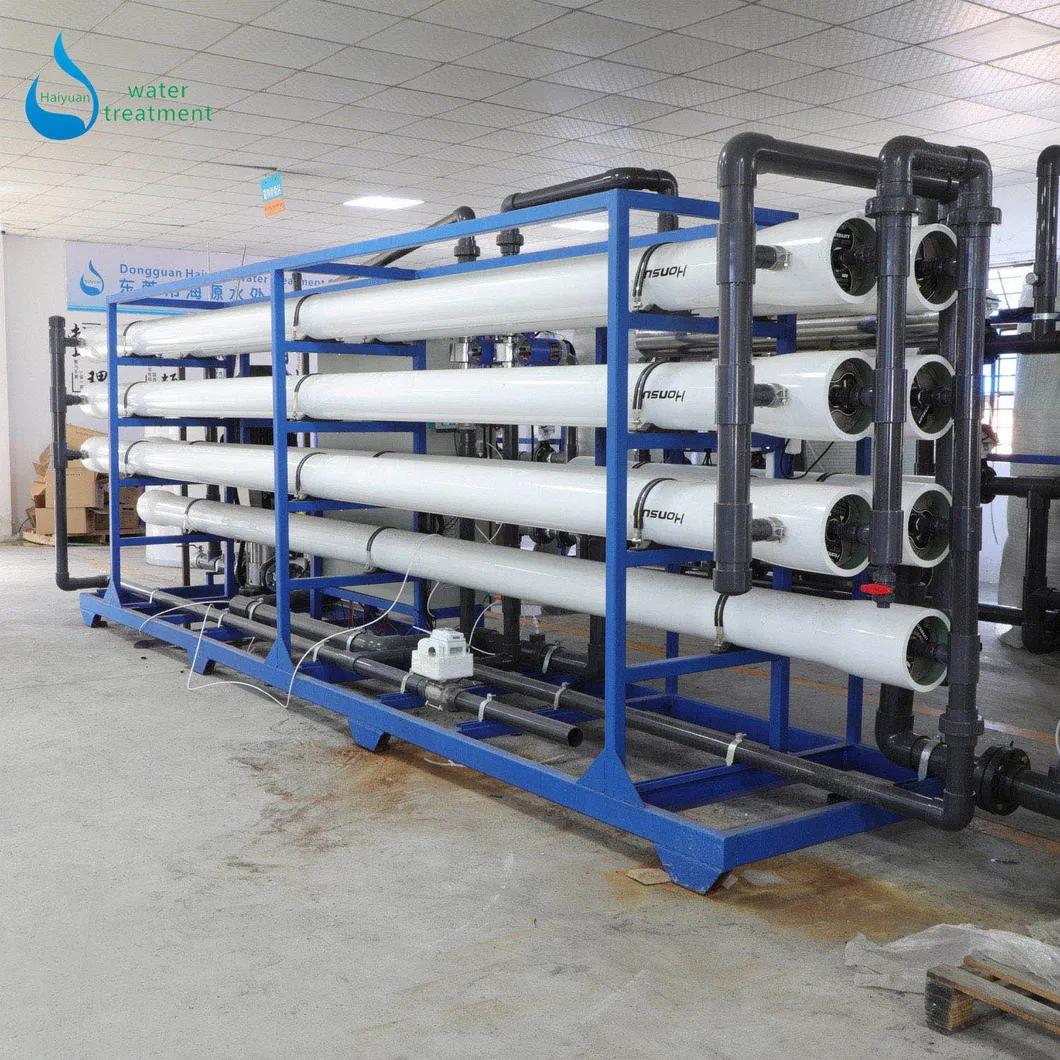

Components

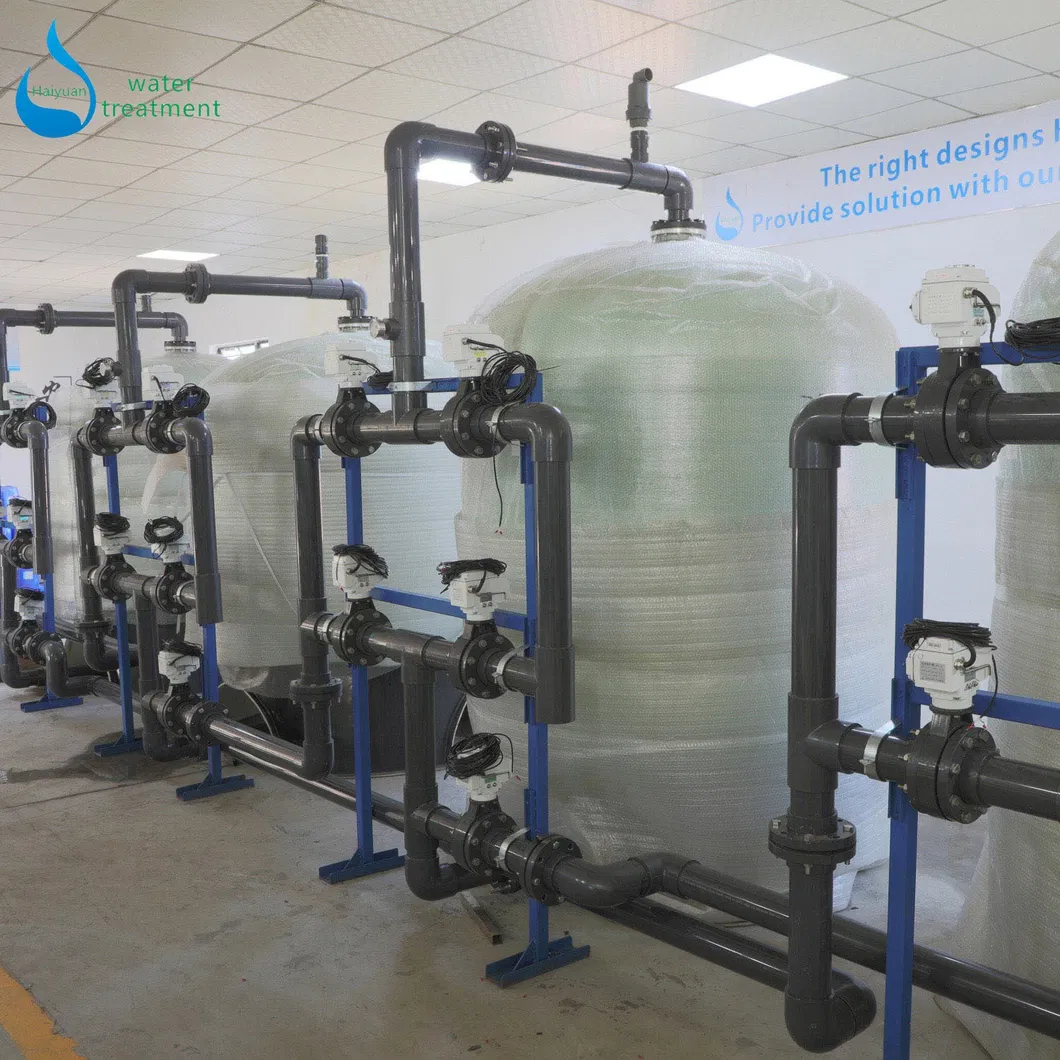

Detail

Optional Containerized Units

Provides stable operating space and protection for the equipment.

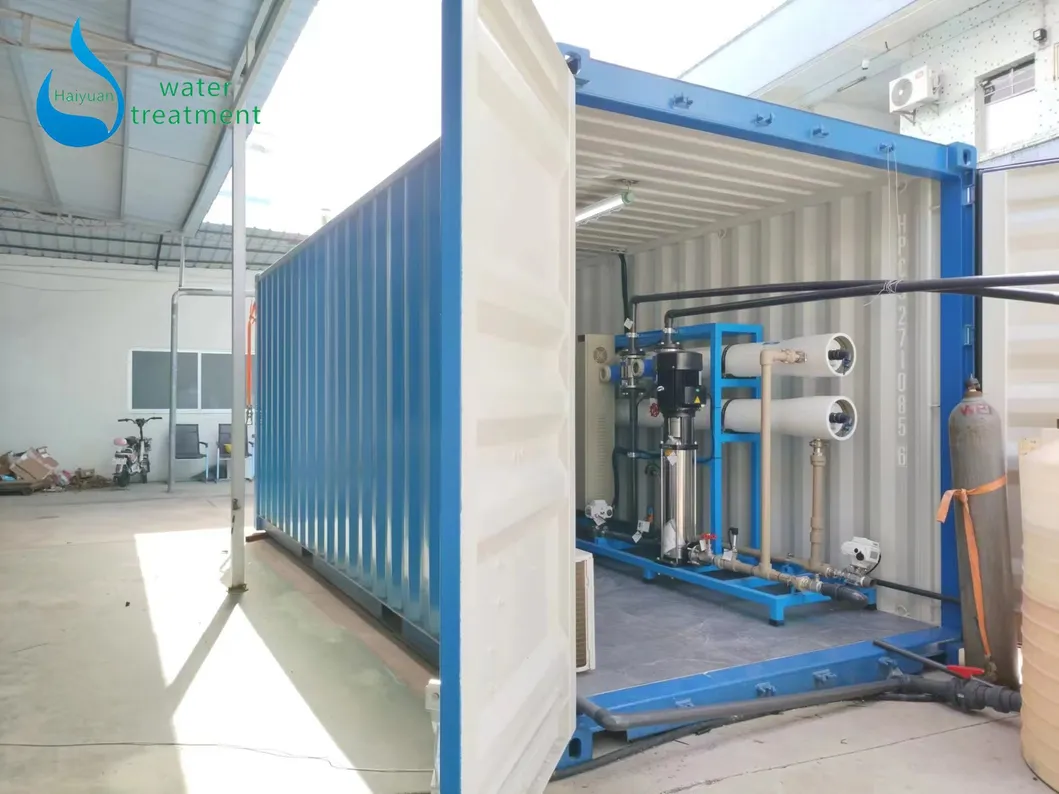

Container RO 1

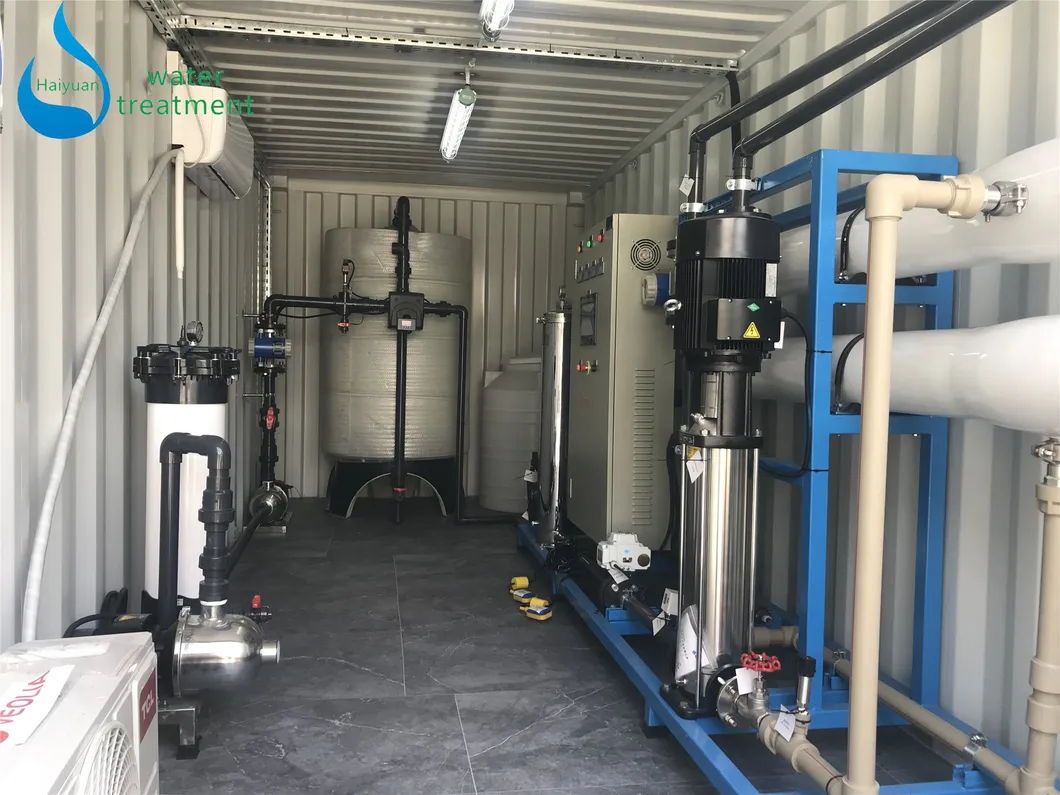

Container RO 2

☖

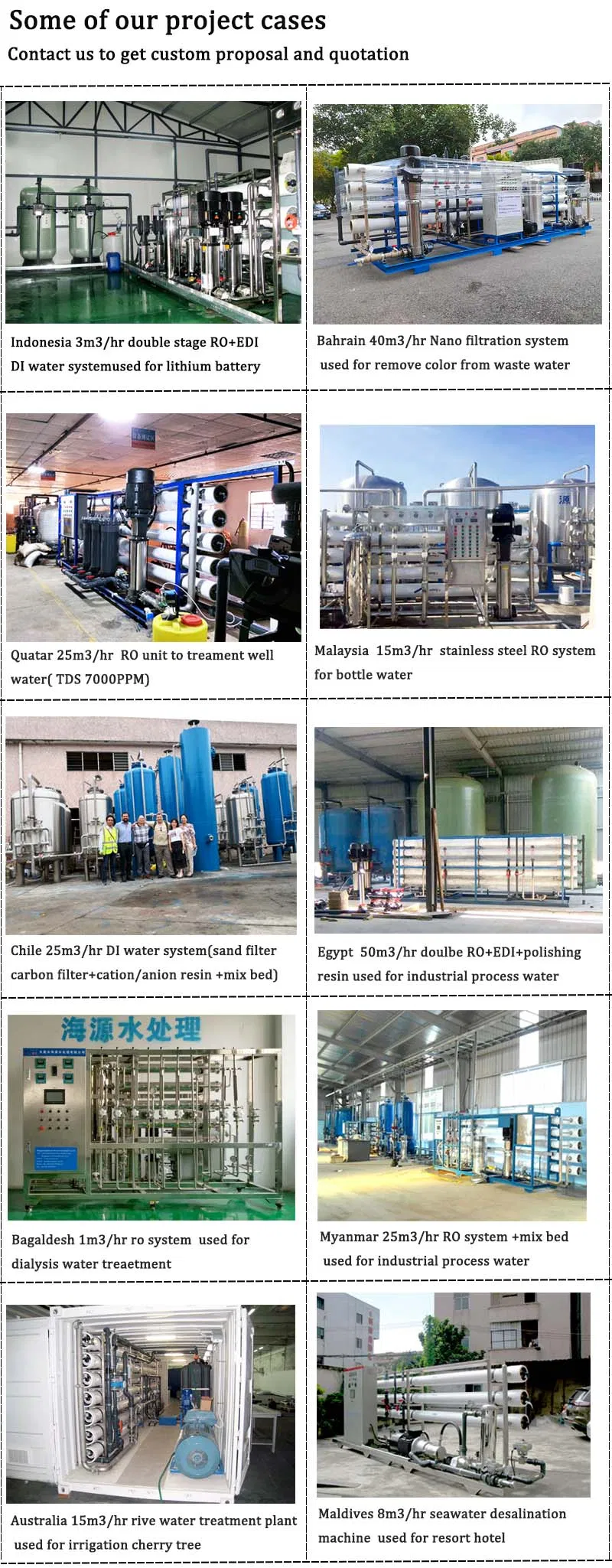

Project Cases & Facilities

Case Study

Factory 1

Factory 2

?

Buying Guides

To provide the best quote, please confirm the following:

Untreated water source (Well water, Seawater, etc.)
Treated water purpose (Drinking, industrial use, etc.)
Output capacity requirements (Liters/Gallons per hour)
Local power supply specifications (e.g., 380v/50hz/3ph)

f

Frequently Asked Questions

What types of water can this RO system treat?

The system is designed to treat seawater, brackish water, borehole/well water, and other high-TDS sources to produce high-quality fresh water.

What is the salt rejection rate of your membranes?

Our high-quality RO membranes achieve a salt rejection rate of 99% or higher, effectively removing minerals and impurities.

Can the capacity be customized for large industrial needs?

Yes, we provide fully customizable systems with capacities ranging from 1000L/hour to over 100m3/hour to meet specific industrial requirements.

Is the system compatible with solar power?

Yes, we offer power configuration options including pure solar, grid-connected, or hybrid AC+Solar systems.

Do you provide on-site installation and commissioning?

We offer overseas commissioning services where engineers can be dispatched to your site for installation and training.

What documents are provided for customs clearance?

We supply all necessary documents including Bill of Lading (BL), Packing List, Commercial Invoice, Certificate of Origin (CO), and CE certifications.
