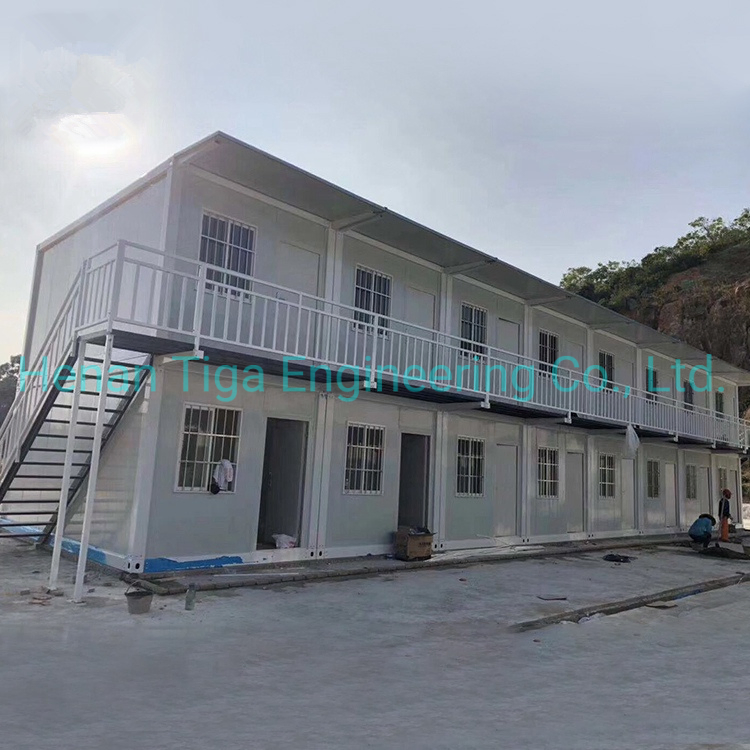

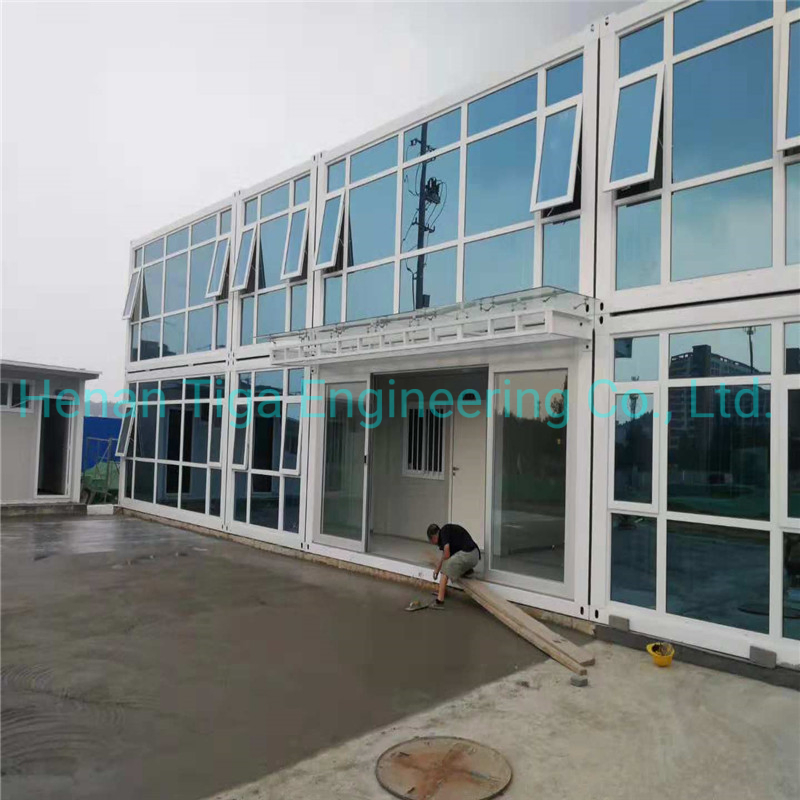

20FT Construction Workforce Building Man Camps Labor Accommodation Container Modular Housing

1 / 5

20FT Construction Workforce Building Man Camps Labor Accommodation Container Modular Housing

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Customized/6055*2435*2896mm

Size

As Your Requirements

Materials Type

H Beam or I Beam with Q235/Q345

Walls

EPS, Rock Wool, PU Sandwich Panel

Life Span

Over 30 Years

Wind-Resistance

Grade 11

Earthquake-Resistance

Grade 7

Production Capacity

500,000 Set / Year

Product Description

1. Brief Introduction

The container house is designed and developed according to the standard size of shipping containers. Transportation is handled in accordance with standard ISO shipping container protocols. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.

2. Key Characteristics

Excellent ability to assemble and disassemble several times without damage.
Can be lifted, fixed, and combined freely for various modular configurations.
Superior heatproof and waterproof performance.

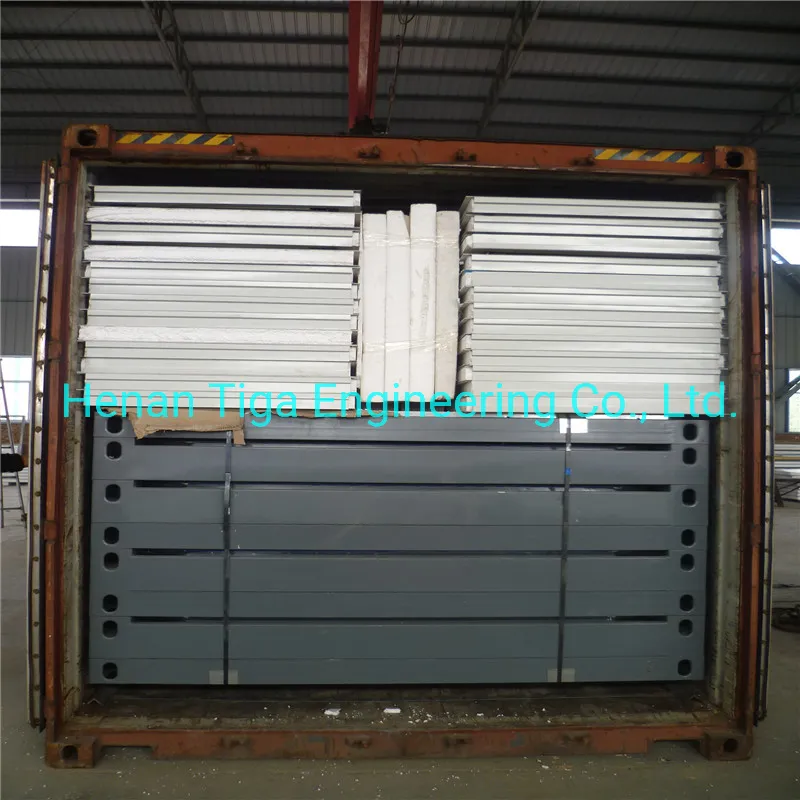

Cost-saving and convenient transportation (4 units can be loaded into one standard container).
Long service life reaching up to 10 - 15 years for standard units.
Installation, supervision, and training services available.

3. Wide Usage

Widely used as site offices, living rooms, meeting rooms, dormitories, shops, toilets, storage units, kitchens, and shower rooms. Using light materials without overload, these units are easy to pack and transport. The house can be assembled and disassembled more than 6 times.

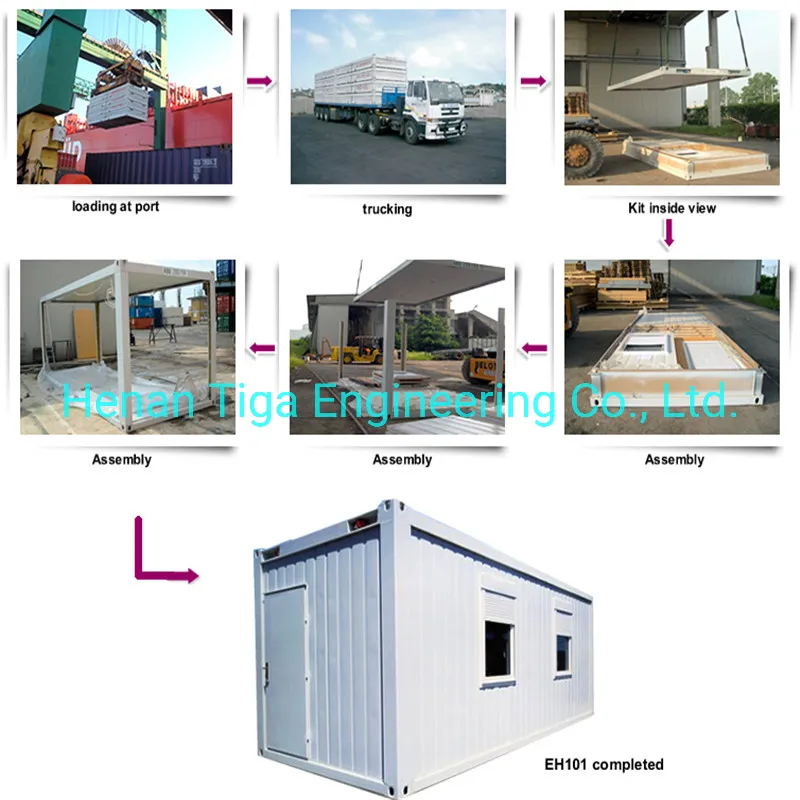

4. Main Structure and Installation

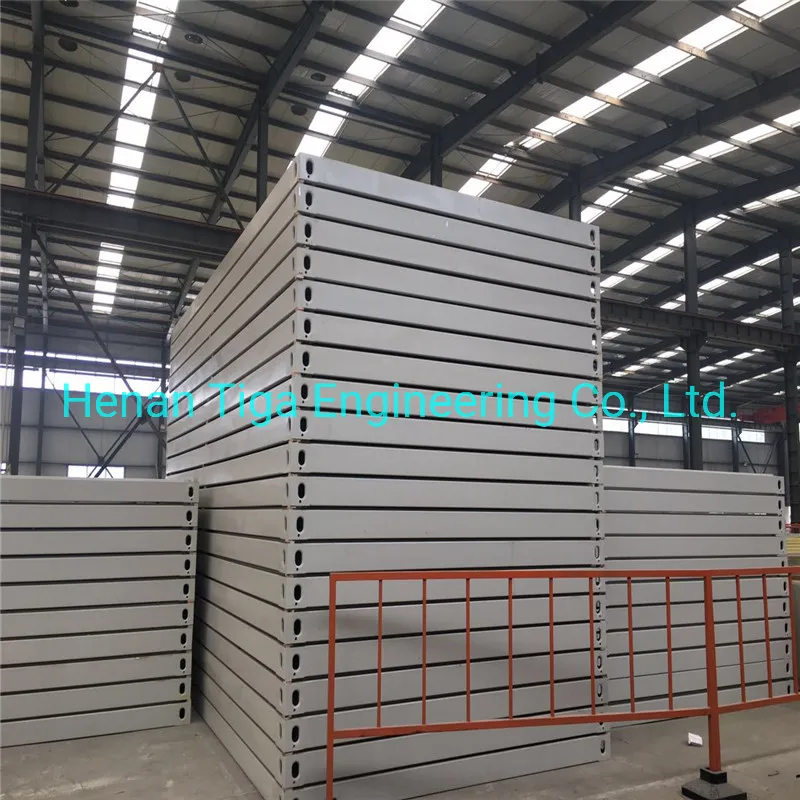

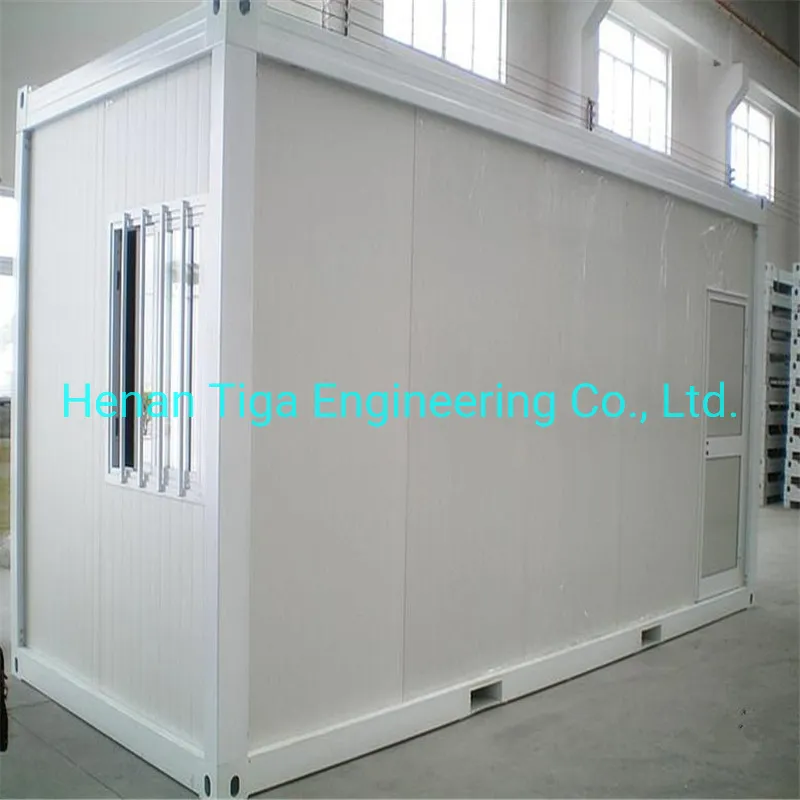

Flat Pack Container size is 6.055m * 2.435m * 2.896m, utilizing EPS/IEPS/Rock wool sandwich panels for walls and glass wool for the roof. A team of 6 workers can install 1 unit in just 2 hours! The structure can be stacked up to 3 floors high.

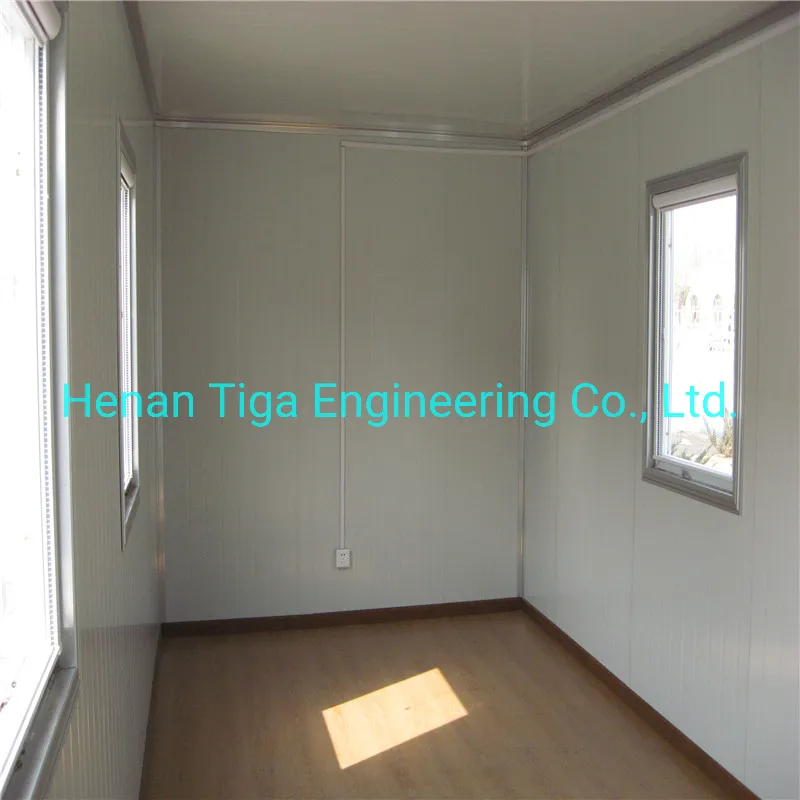

Electric wires run over the ceiling, including DB, breaker, power inlet, and lights. Sockets and switches are included. The total-sealed-top and corner-draining system ensures no water leakage. The fully welded top frame and truss, along with the bottom frame and supports, ensure maximum product strength.

Standard Accessory & Technical Parameters
Roof System	Q345B steel structure + 0.45mm steel sheets + 70mm PU foaming integrated roof + electrical tube/wiring + distribution box.
Chassis System	Steel structure chassis + 18mm cement-fiber board + 2mm PVC floor sheet (Permitted loading: >2.5KN/m2).

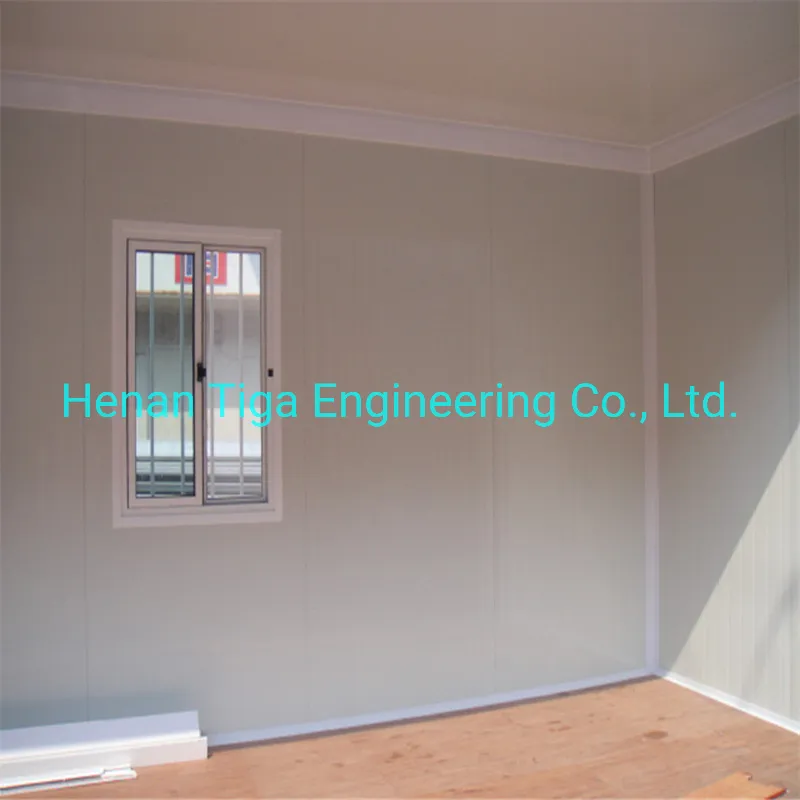

Wall System	50/75/100mm EPS, rock wool, glass fiber, or PU sandwich panel options.
Door & Window	Steel/Fire-proof/Sandwich panel doors; Aluminum alloy shutter or plastic-steel windows (single/double glass).
Technical Performance	Temperature: -40ºC to 40ºC; Wind resistance: 210km/h; Earthquake resistance: Grade 8.

Frequently Asked Questions

How long is the expected service life of these container houses?

The standard service life is approximately 10-15 years, while high-quality structural components can extend the total lifespan to over 30 years with proper maintenance.

How fast can a container unit be installed?

Installation is extremely efficient; a team of 6 skilled workers can fully assemble one standard 20ft container unit within 2 hours.

What is the weather resistance capability of the structure?

The units are designed to withstand extreme conditions, including Grade 11 wind resistance (up to 210km/h) and temperatures ranging from -40ºC to 40ºC.

Are the container houses earthquake-resistant?

Yes, the steel frame structure is engineered to meet Grade 7 to Grade 8 earthquake resistance standards, ensuring safety in seismic zones.

Can these modular units be stacked?

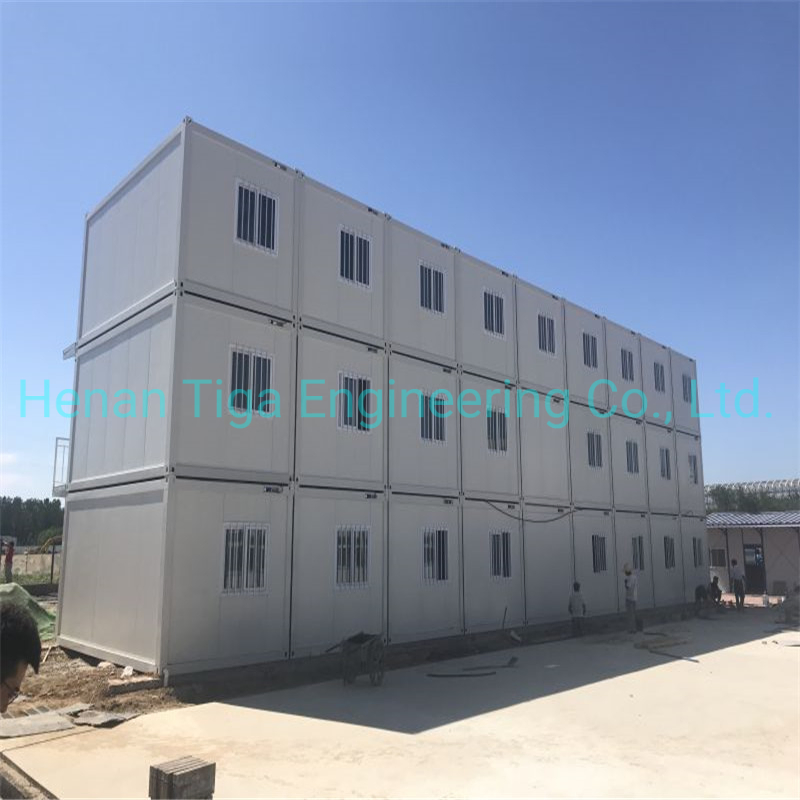

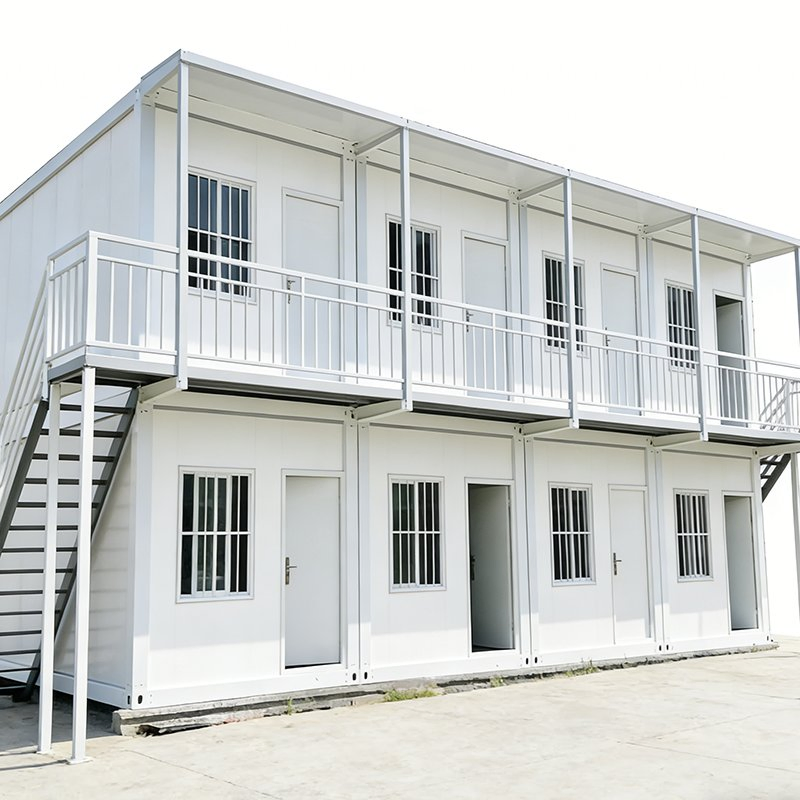

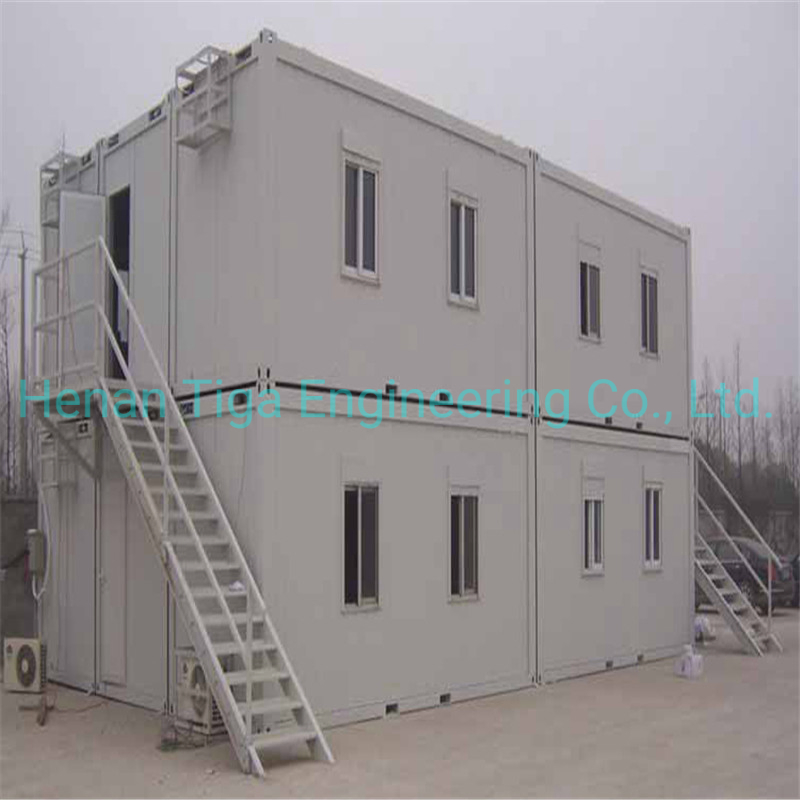

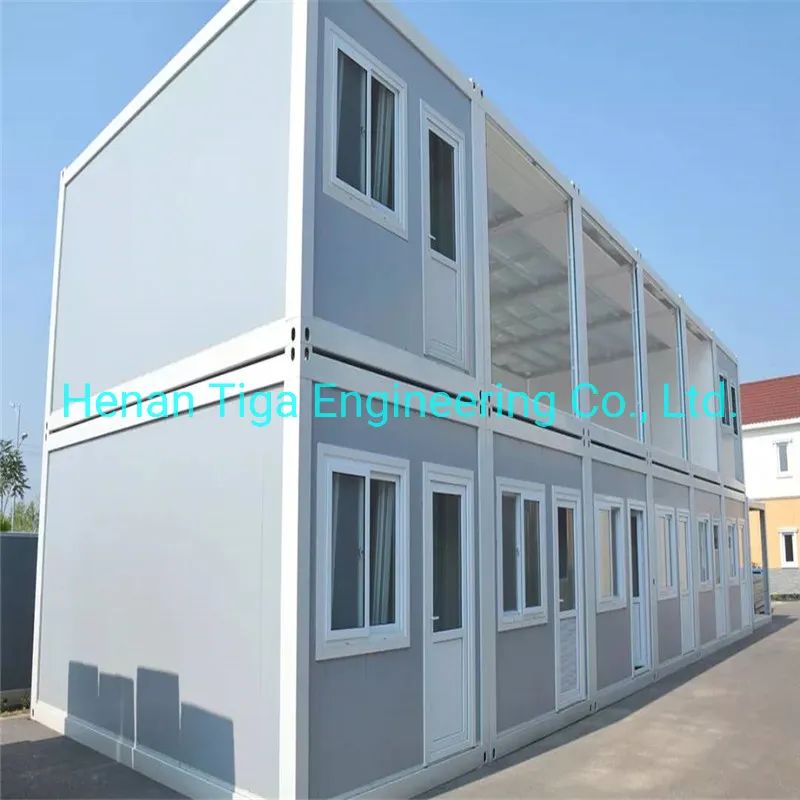

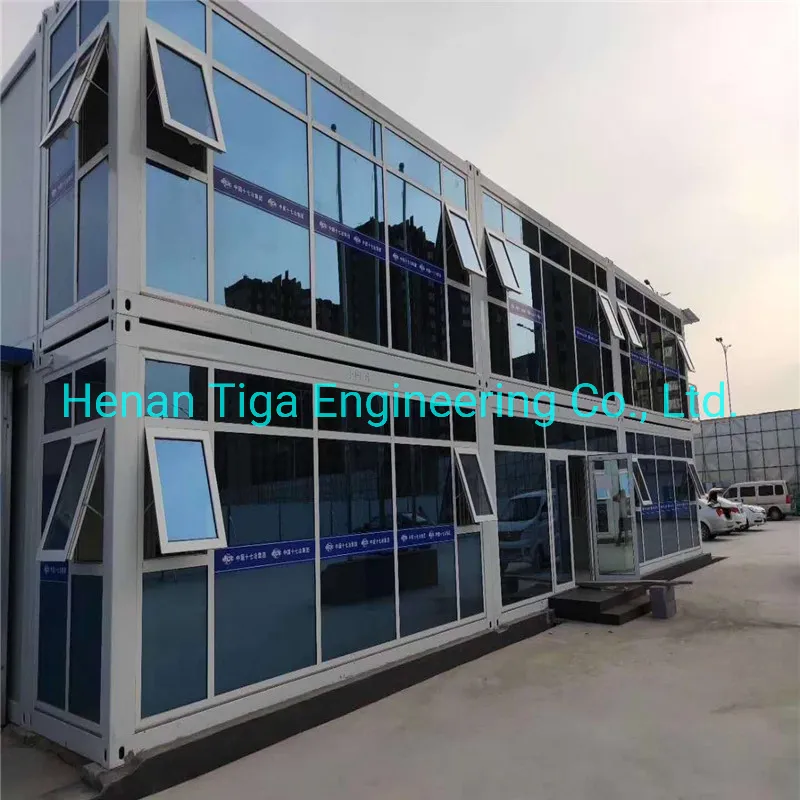

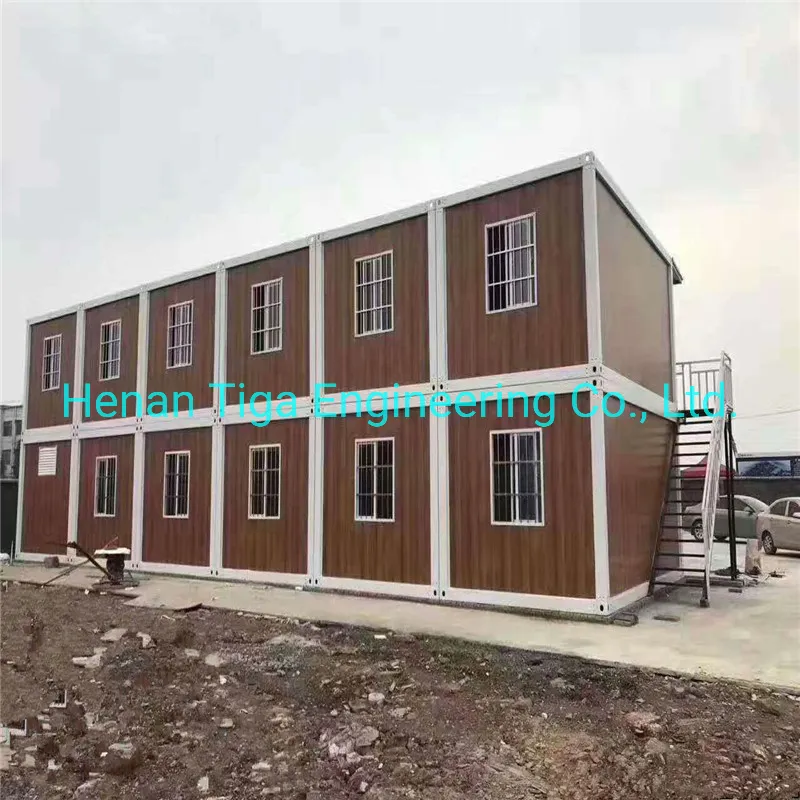

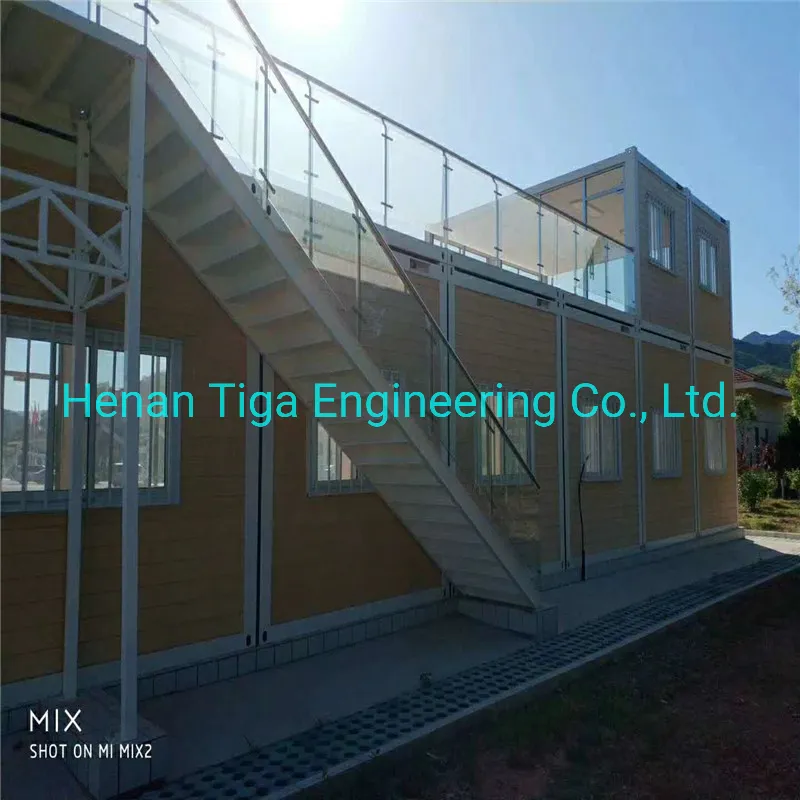

Yes, the reinforced steel frames are designed for modularity and can be safely stacked up to 3 floors high to save space.

What materials are used for wall insulation?

We provide several options depending on your needs, including EPS, Rock Wool, or PU (Polyurethane) sandwich panels for superior thermal and sound insulation.
