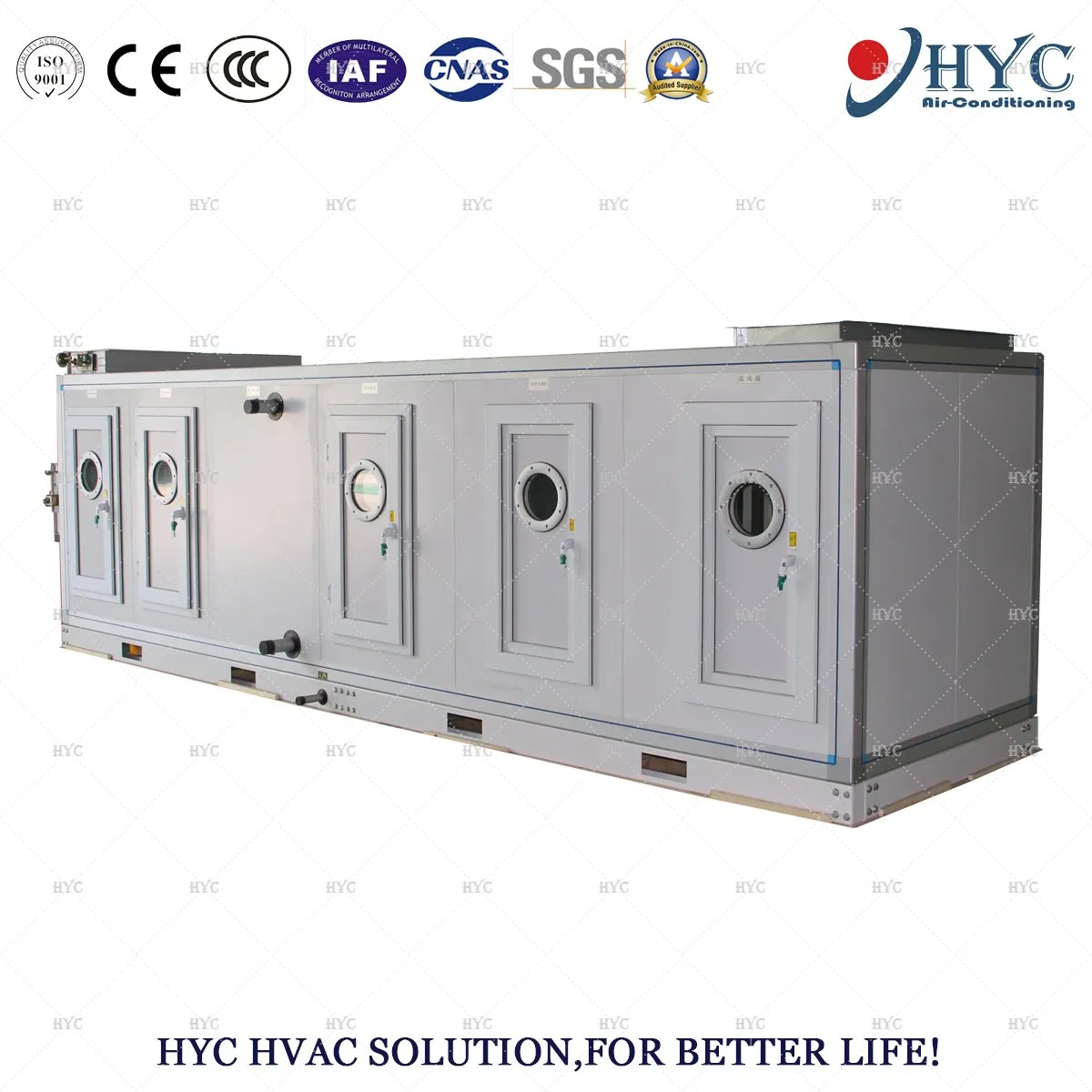

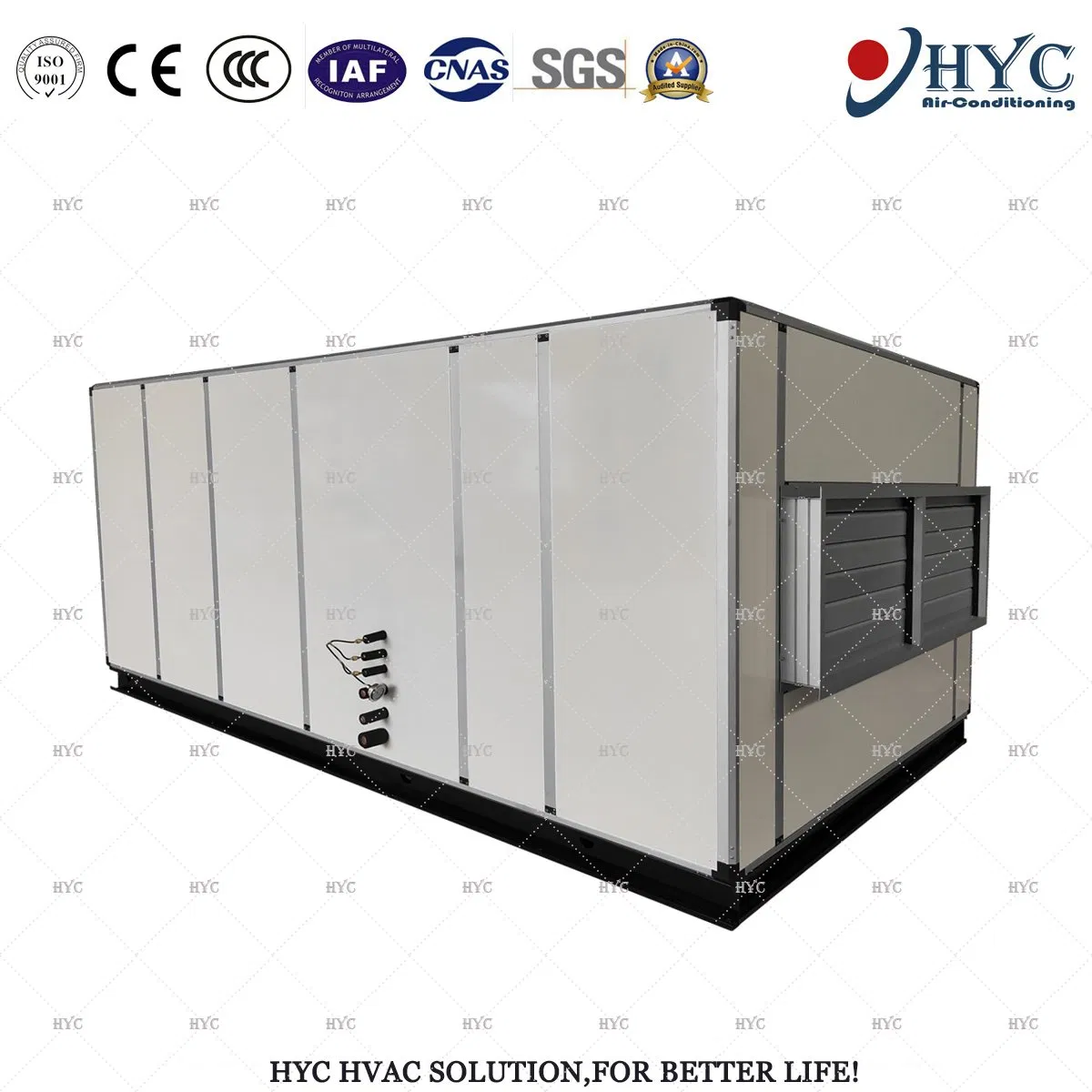

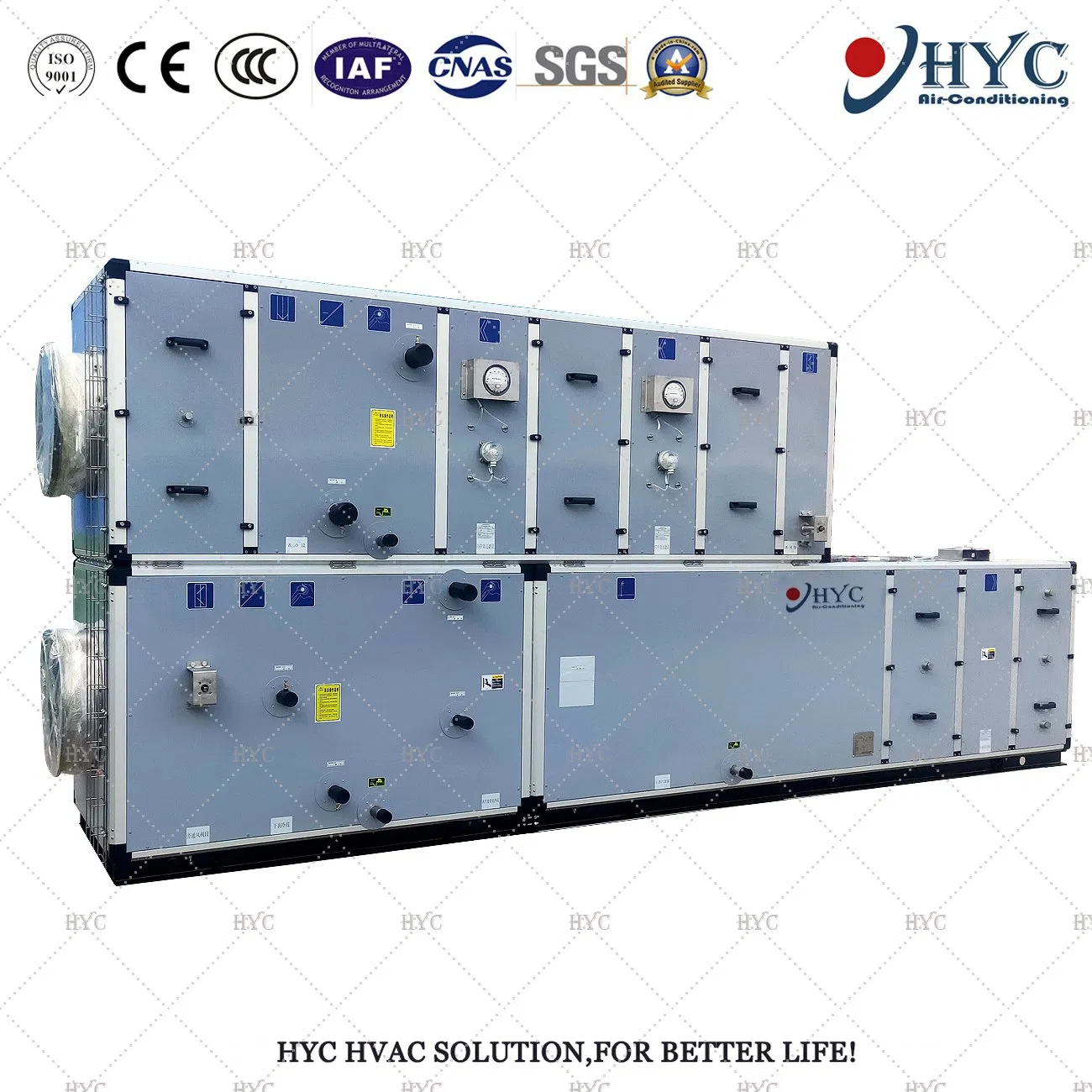

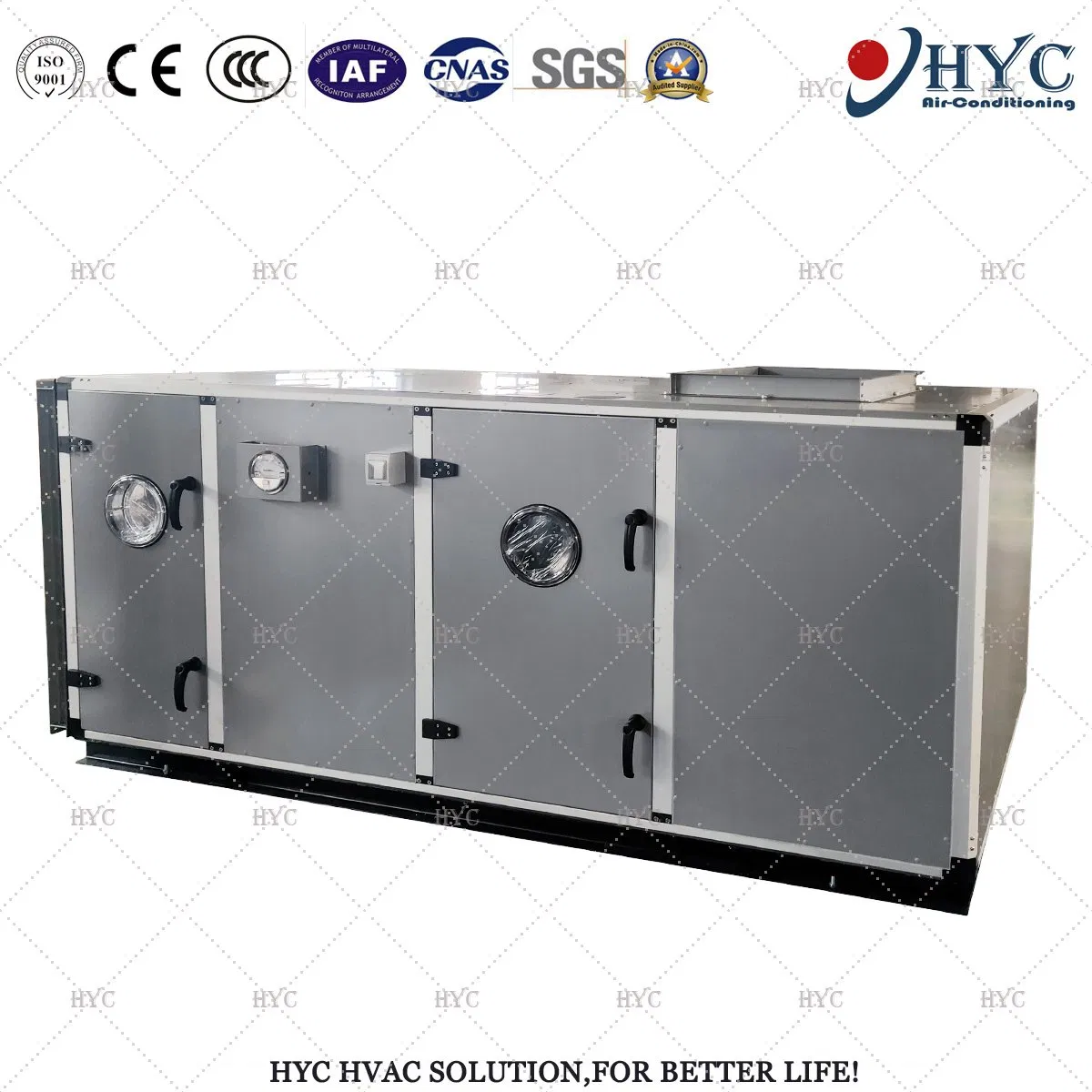

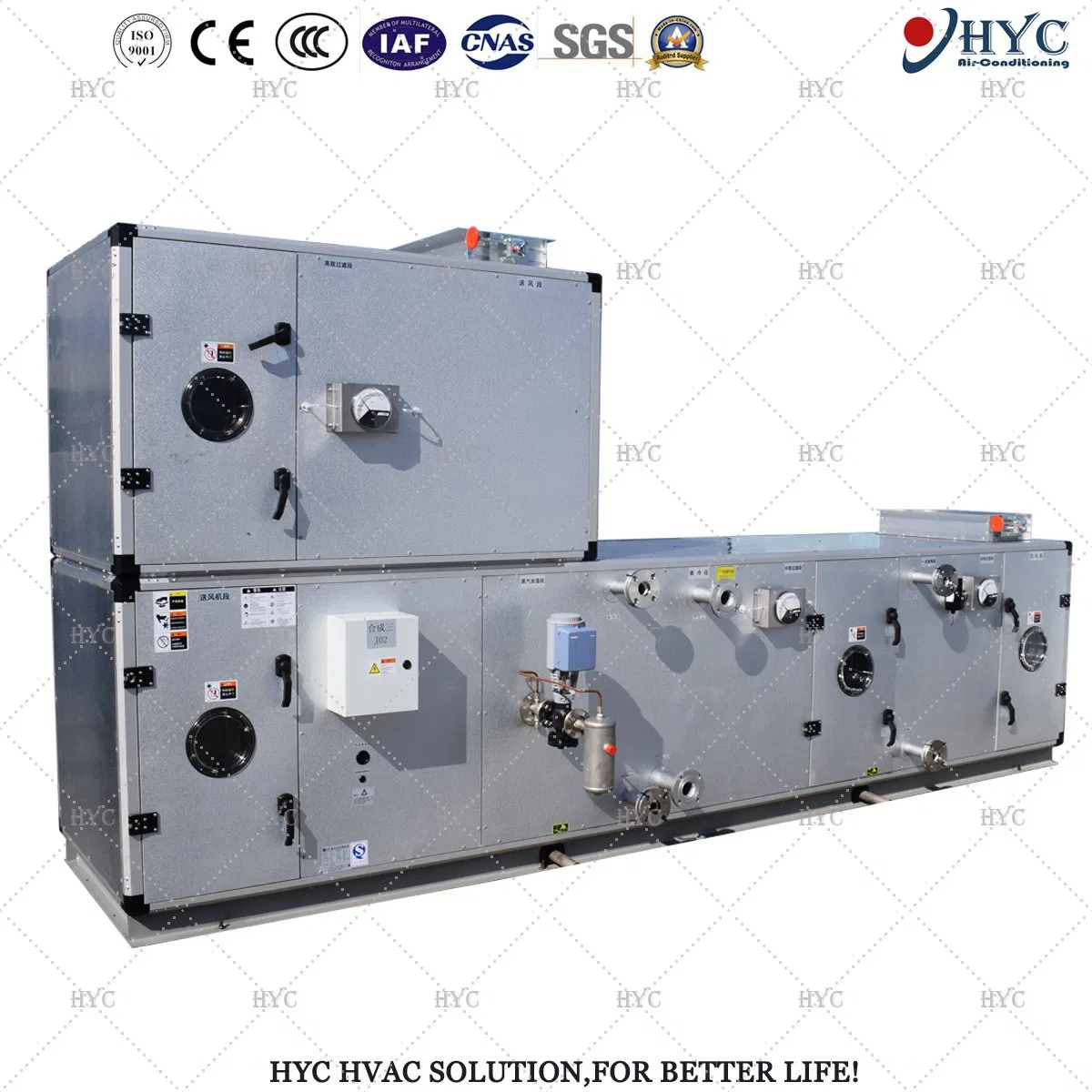

Hospital /Operating Room/Laboratory Modular Medical Ahu Clean Room Fresh Air Handling Unit (Heat Recovery)

1 / 5

Hospital /Operating Room/Laboratory Modular Medical Ahu Clean Room Fresh Air Handling Unit (Heat Recovery)

Customization:	Available
Type:	Air Handling Unit
Air Tube Material:	Galvanized Sheet

Send Inquiry

Product Description

1 Basic Information

Model NO.

HAH

Corrosion Durability

Higher

Operating Voltage

220V, 380-415V, 50/60Hz

Noise Level

Ultra Low

Application Fields

Apartment, Office Building, Villa, Industrial

Lifetime

>20 years

Certification

ISO, CE, CCC

Condition

New

Coil Material

Blue Hydrophilic Aluminum Fin/Copper

Delivery Time

25 days

Capacity

1500-60000 Cfm

Panel Material

Double Skin with Polyurethane Fitting

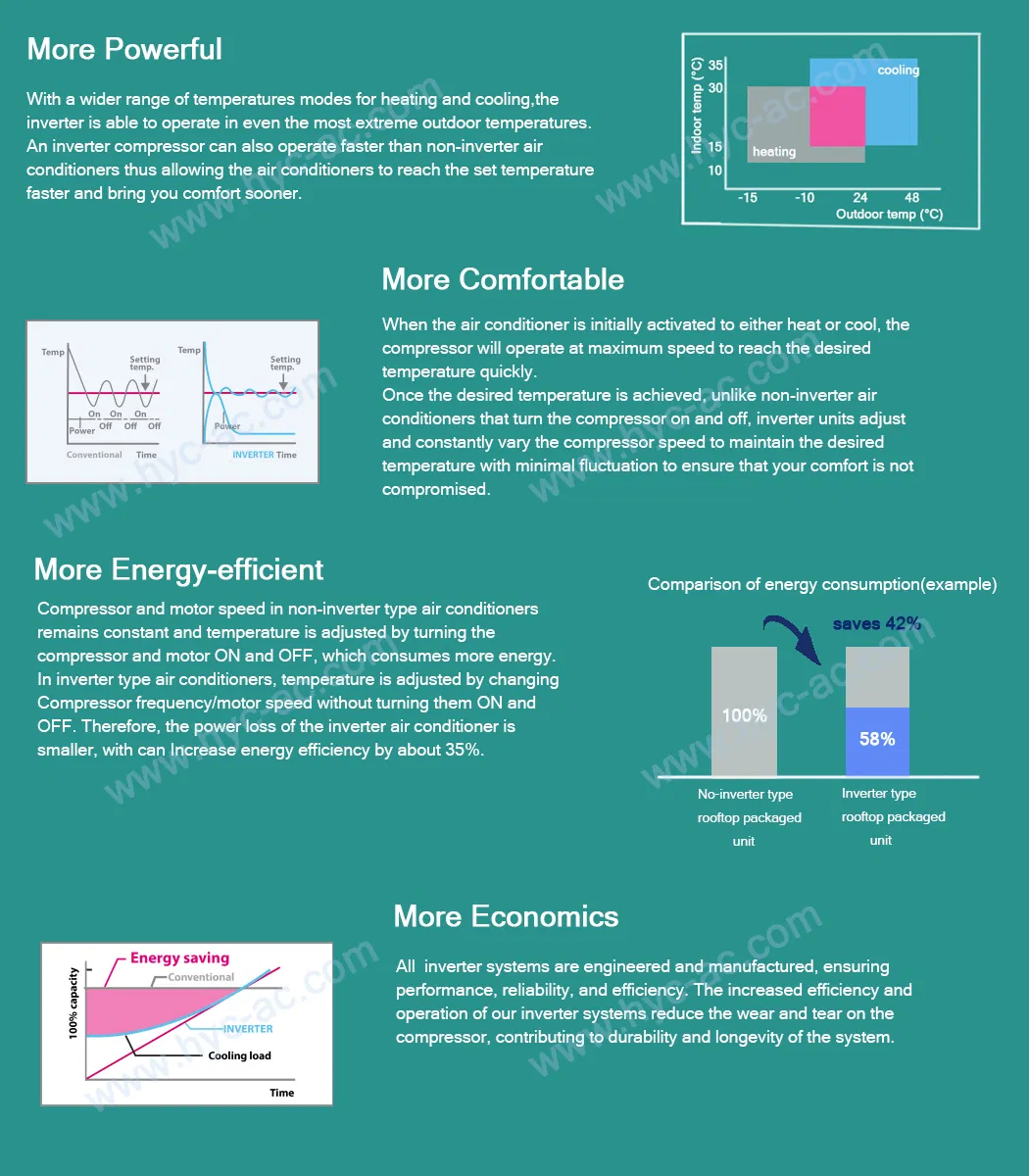

2 Inverter Air Handling Unit

Core Features

✓

Cooling Performance: -5~50ºC | Heating Performance: -20~24ºC

✓

Air Flow Range: 1500m³/h ~ 60000m³/h (up to 120000m³/h for specific requirements)

✓

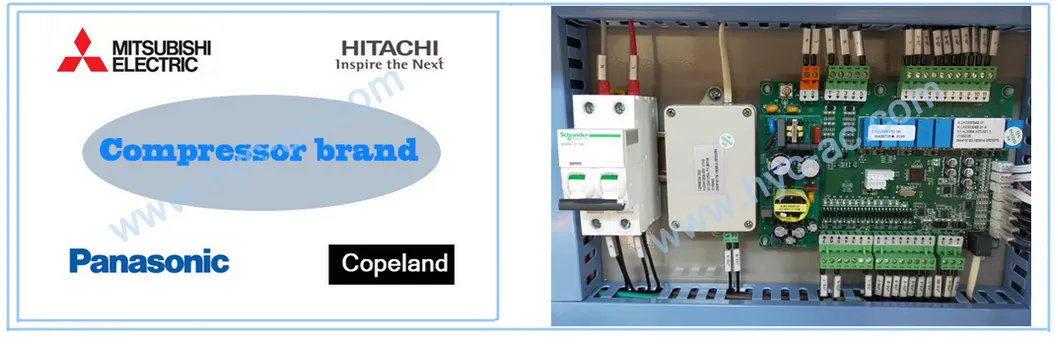

High Quality Components: DC inverter type compressor and world-known brand cooling parts.

3 Structure & Design

Panel Structure Design: Made of powder-coated double steel with high-pressure polyurethane foam fitting, offering a rigid and robust panel. The aluminum alloy frame ensures the unit is strong yet lightweight.

Low Air Leakage & Noise: Special insulation methods and dynamically balanced fan assemblies with spring isolators minimize energy loss, vibration, and noise.

Modular Design: Flexible and robust method to suit different site conditions. Easy assembly and installation on-site.

4 Function Sections

Cabinet
Mixing box section
Fresh/exhaust air section
Pre-Sec-Hepa filter section
Coil section
Fan section
Humidification section
Electrical heater section

5 Technical Parameters

Air Flow (m³/h)	4 ROW (kW)		6 ROW (kW)		8 ROW (kW)
Air Flow (m³/h)	TC	SC	TC	SC	TC	SC
2110	8.50	7.77	13.40	10.19	16.45	11.52
3640	19.43	15.32	26.65	18.83	31.19	20.85
5180	30.29	22.77	39.87	27.49	45.86	30.19
7990	46.08	34.70	61.01	42.04	63.69	63.51
10410	63.40	46.51	73.82	52.32	87.09	58.20
12820	79.63	57.84	94.23	65.74	110.10	72.83

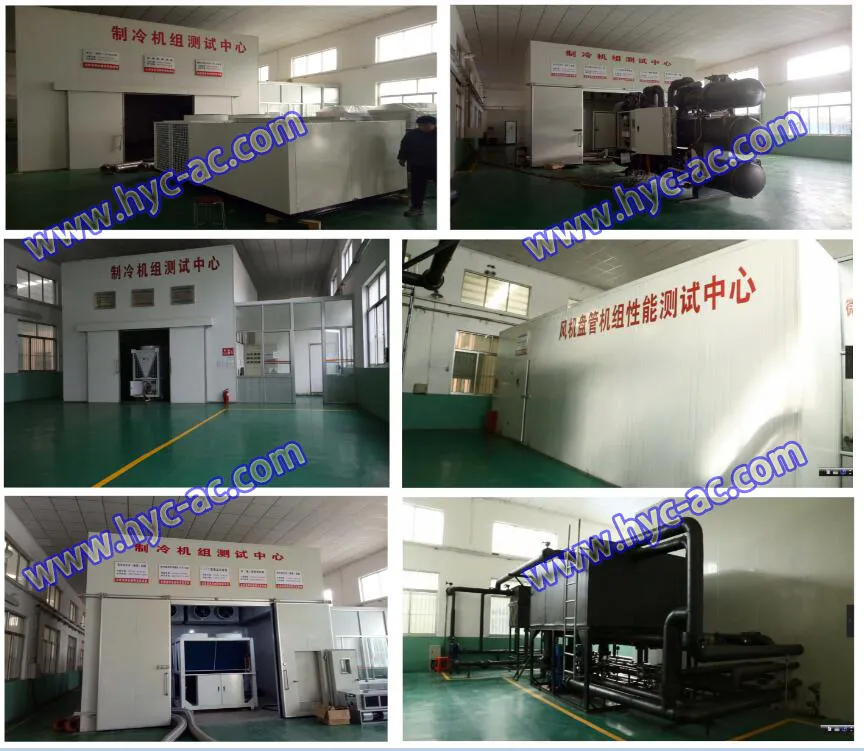

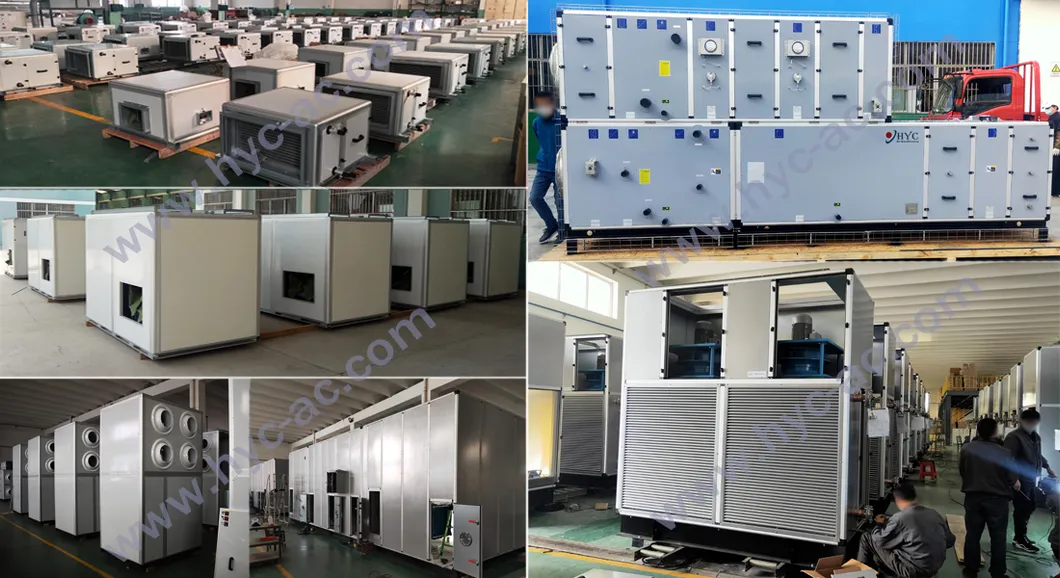

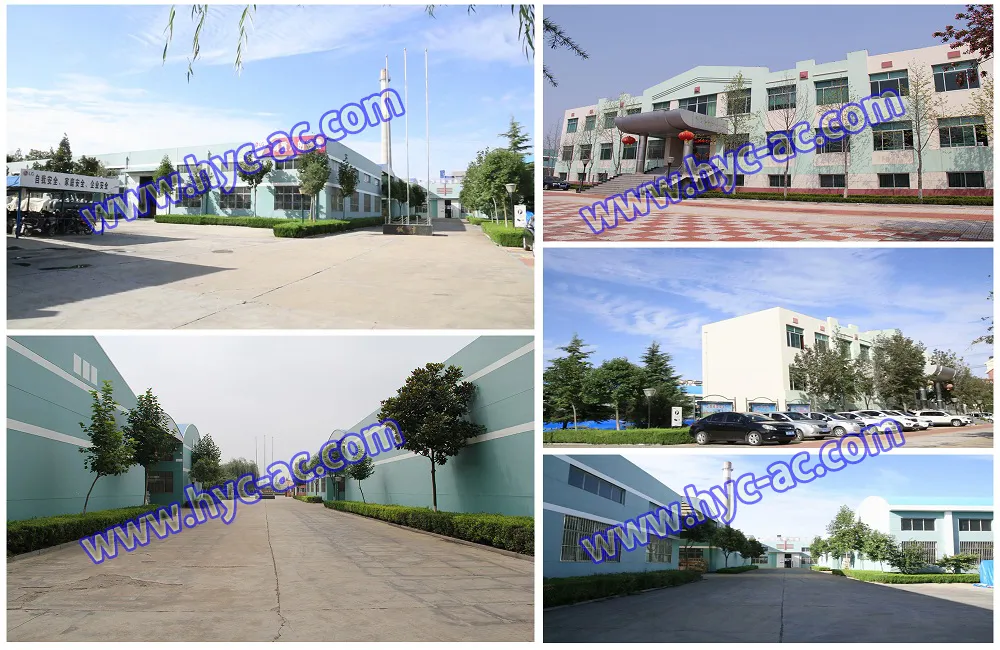

6 Production & Quality Control

Frequently Asked Questions

Q1: What is the typical airflow range for these units? A: The standard airflow range is between 1,500 m³/h and 60,000 m³/h, although modular designs can fulfill requirements up to 120,000 m³/h.

Q2: What materials are used for the panel construction? A: The panels are made of double-skin powder-coated steel with high-pressure polyurethane (PU) foam insulation for maximum thermal efficiency and low air leakage.

Q3: Are these units suitable for medical or laboratory environments? A: Yes, they are designed as modular medical AHUs suitable for operating rooms, laboratories, and clean room applications.

Q4: How does the unit maintain low noise levels? A: We use rigidly bolted panels, dynamically and statically balanced fan assemblies, and spring isolators to minimize vibration and operational noise.

Q5: What certifications do the products carry? A: Our air handling units are fully certified with ISO, CE, and CCC standards, ensuring international quality compliance.

Q6: Is customization available for specific site conditions? A: Yes, the modular design allows for tailor-made configurations to suit different site dimensions and functional requirements.
