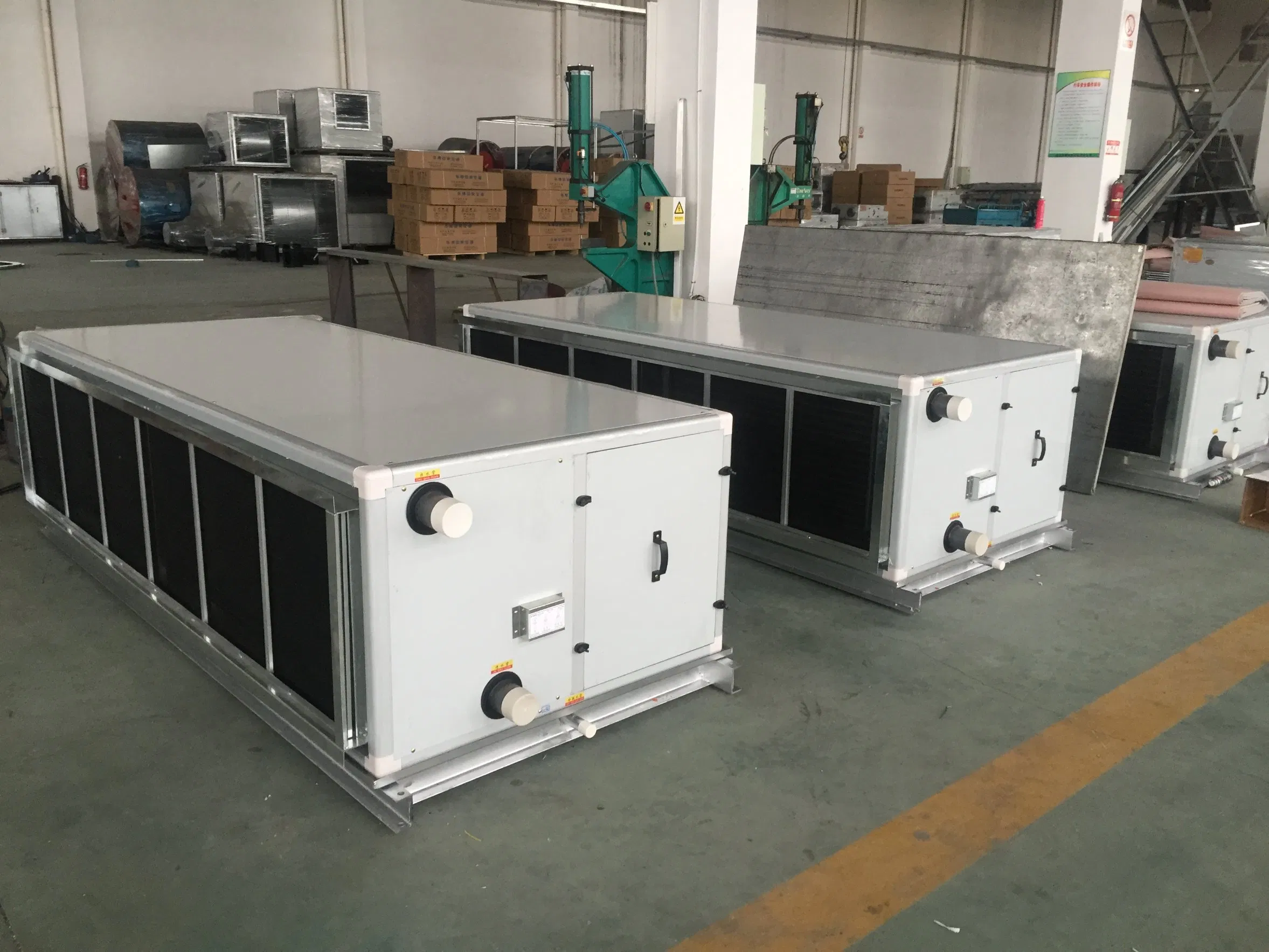

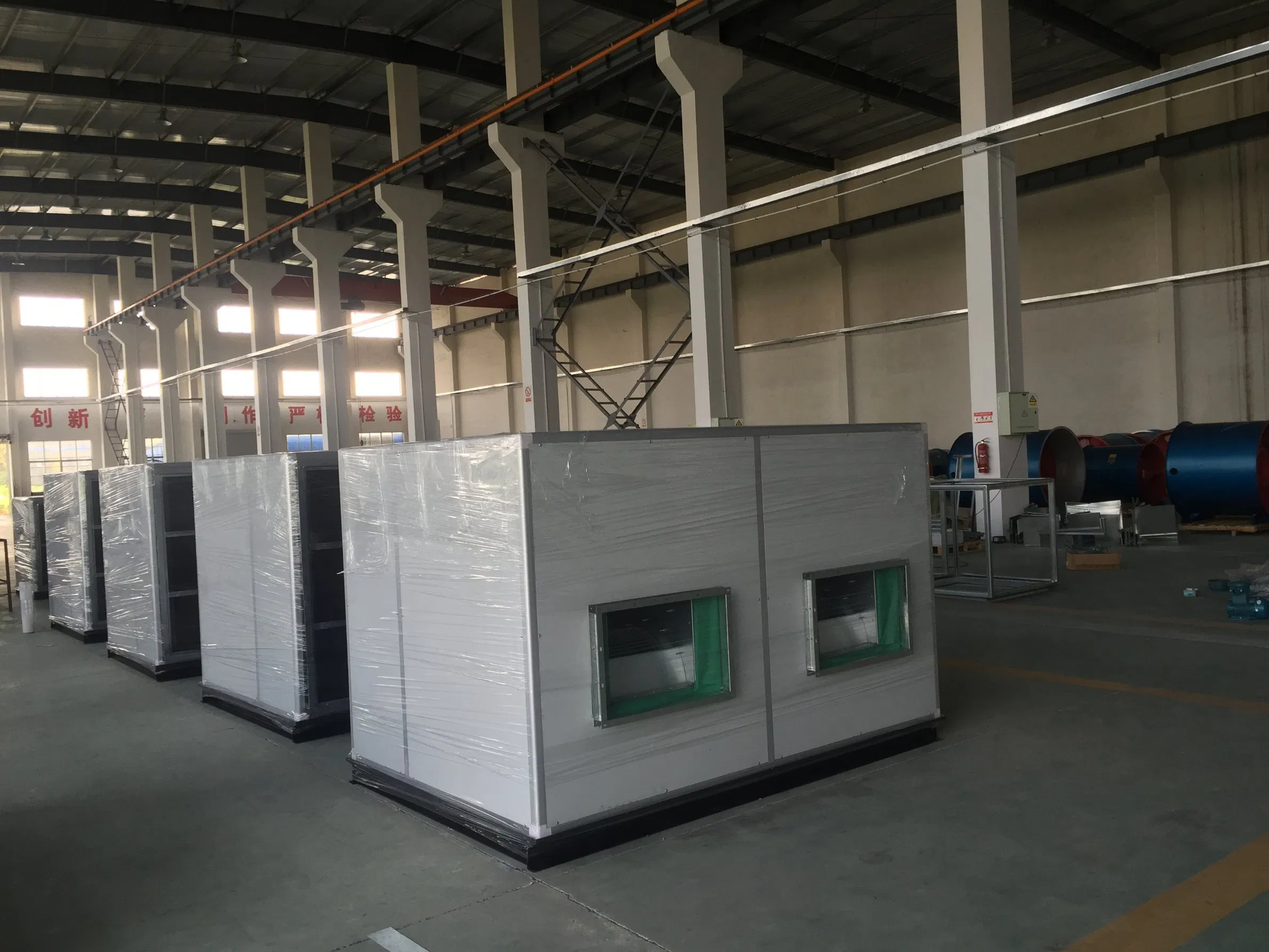

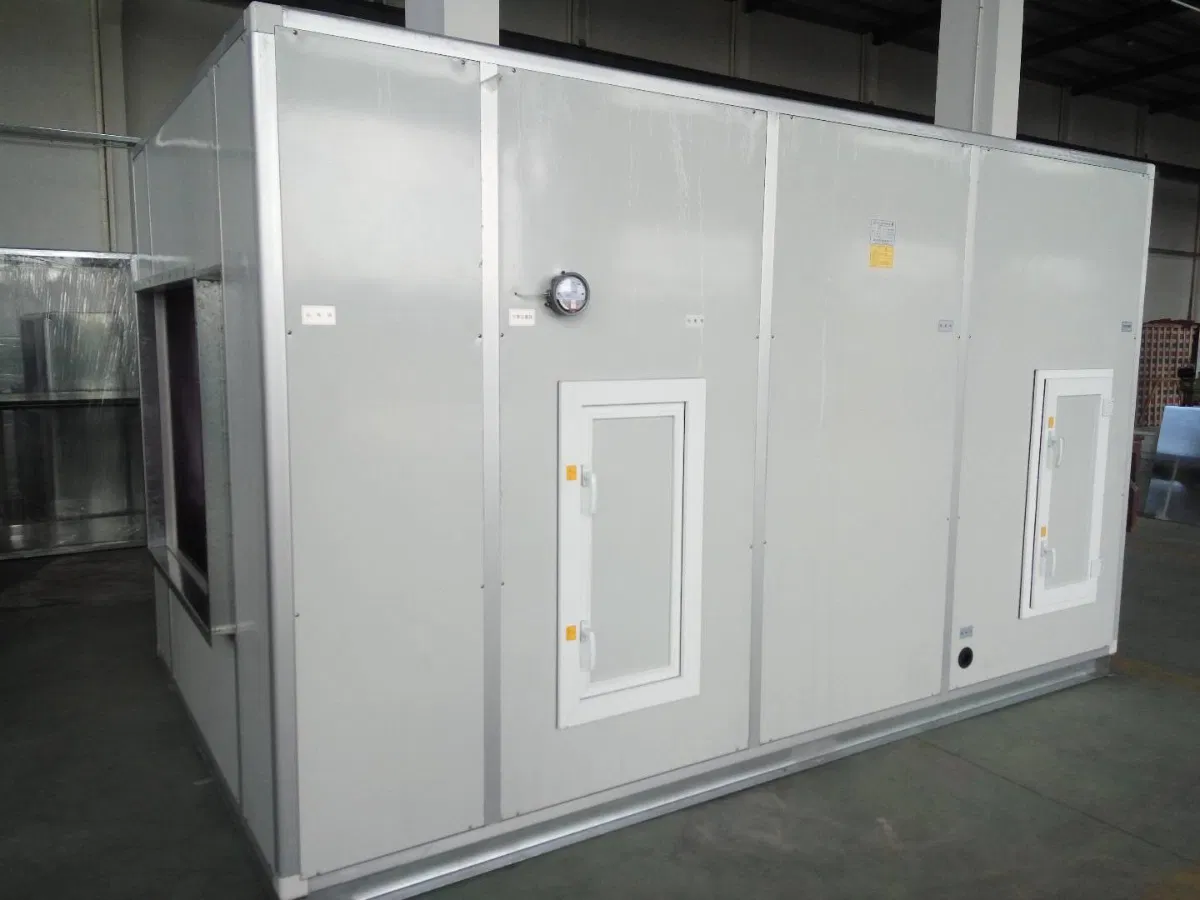

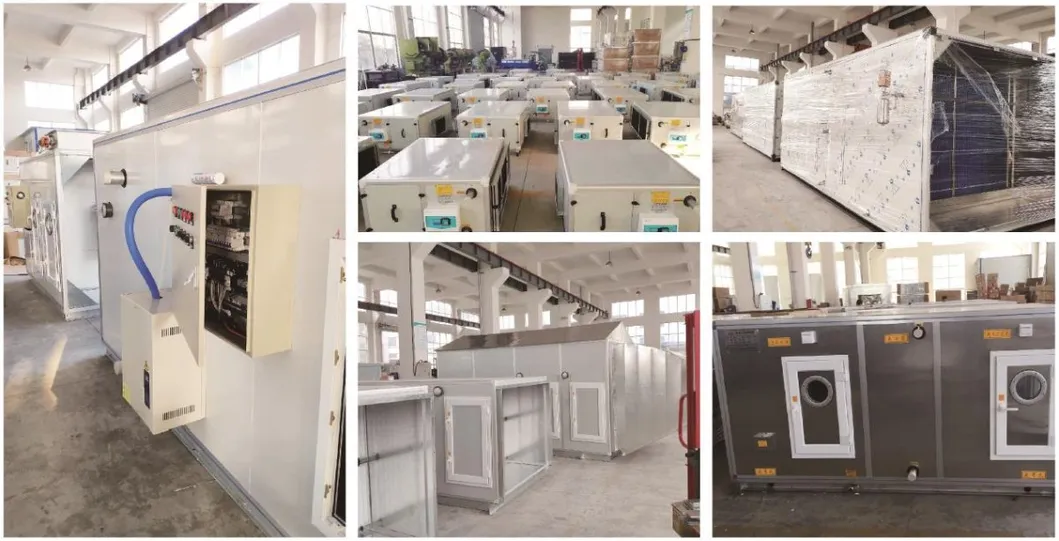

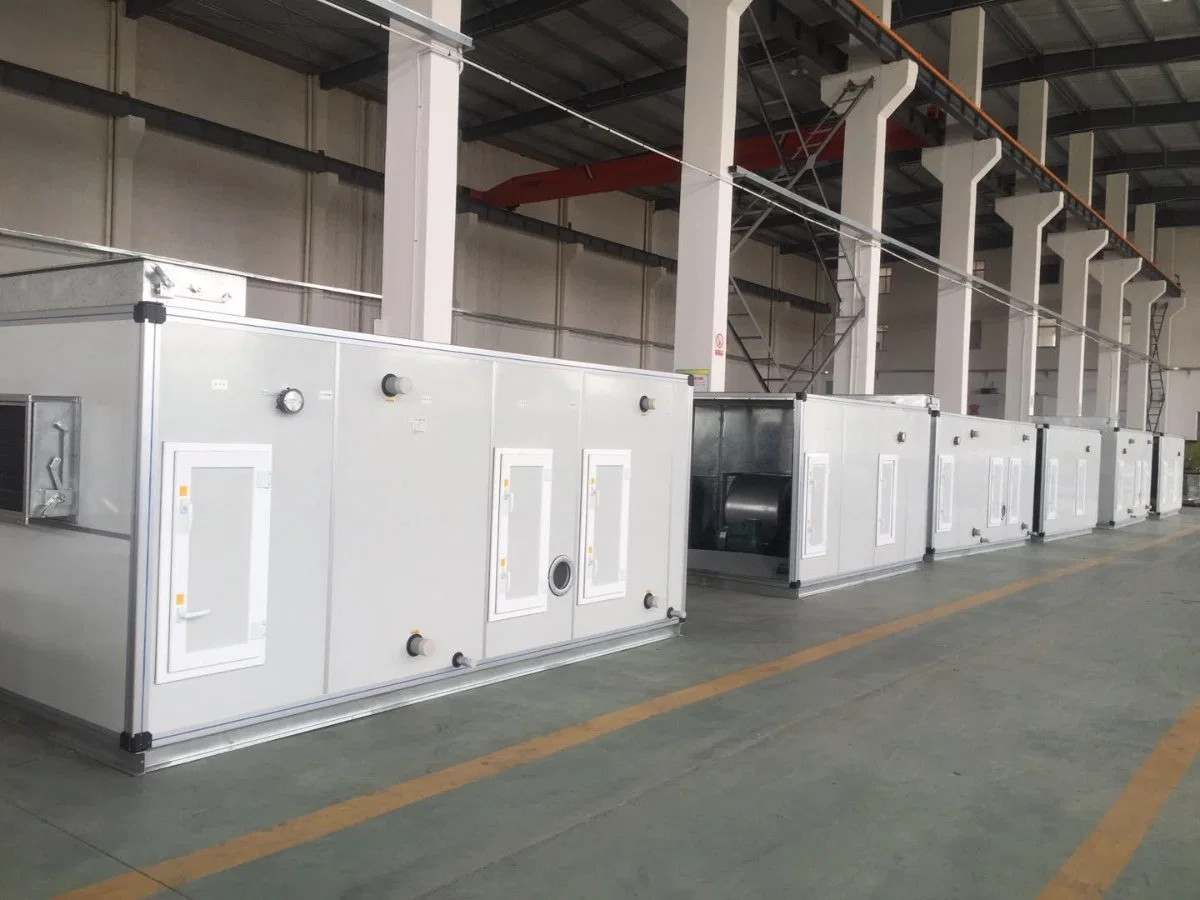

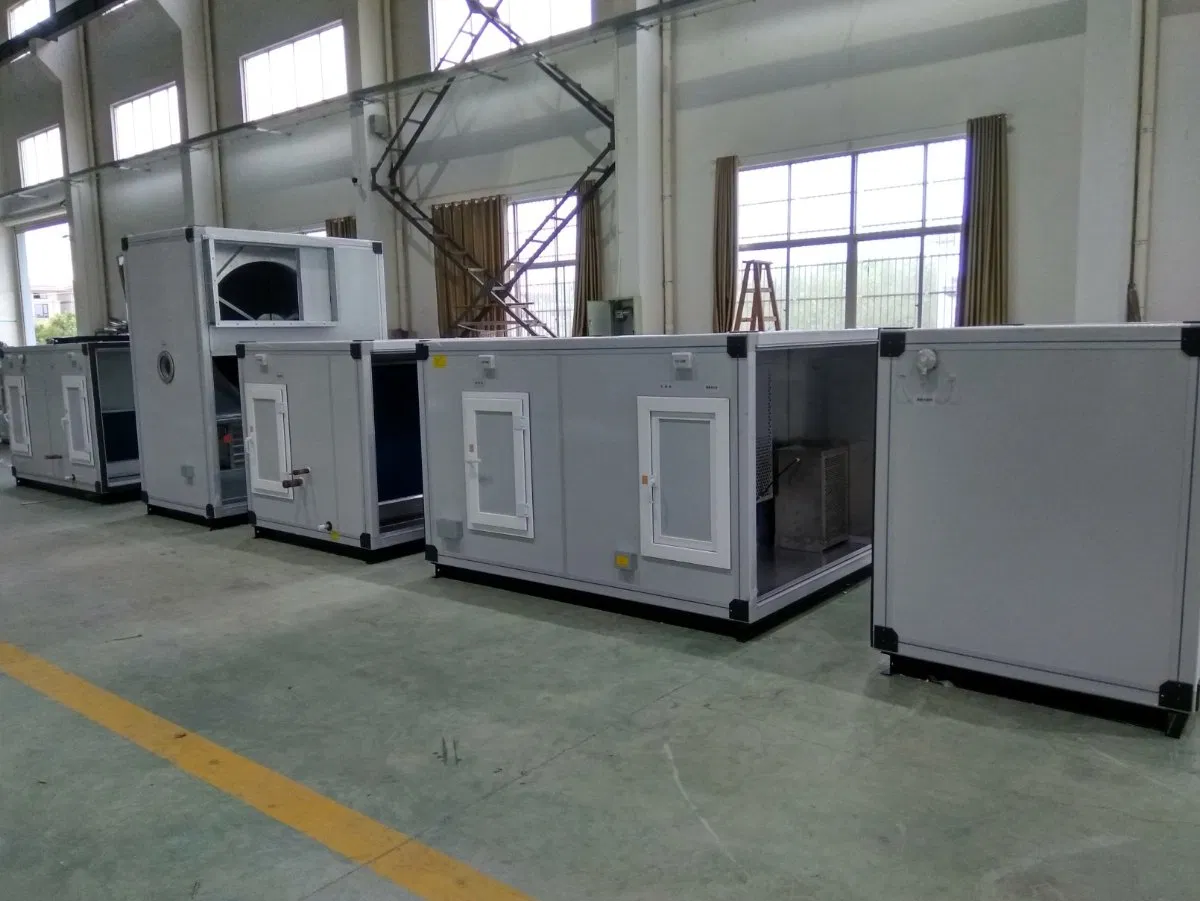

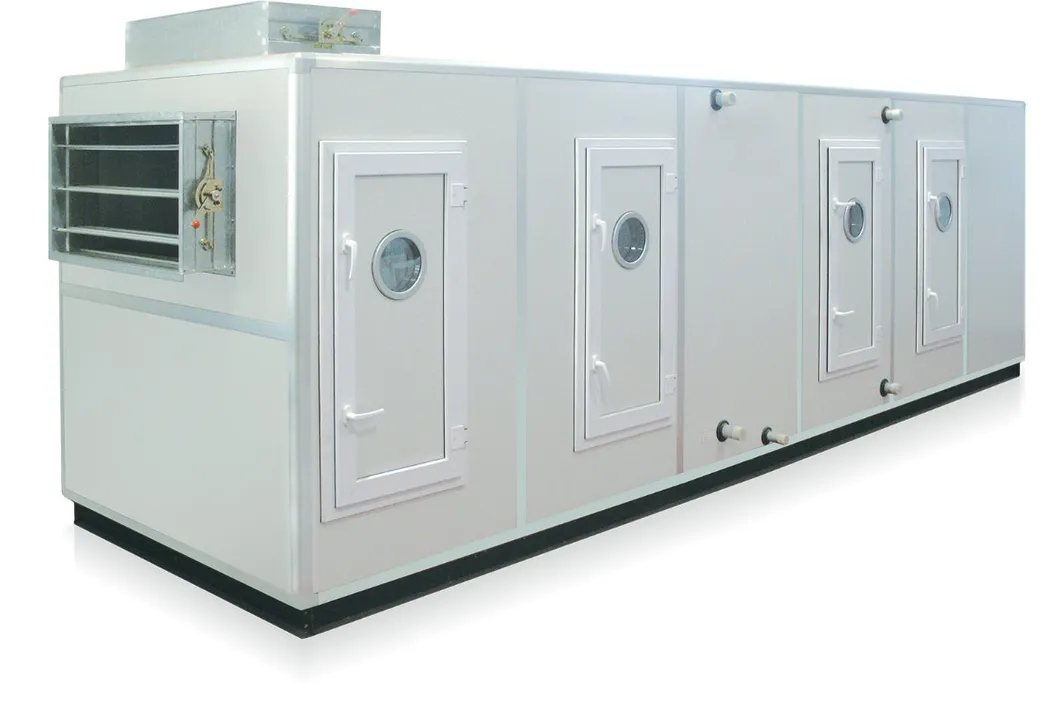

Air Handling Unit & Modular Air Handling Unit

• Air flow rate ranging from 1,000m³/h to 50,000m³/h;
• Three structure designs: horizontal type, vertical type, and suspended type;
• Two pipe connecting modes: right-handed and left-handed;
• ESP (External Static Pressure) can be fully customized.

Key Features of Modular AHU

The unitary structure design ensures outstanding cold-bridge-free performance, minimal air leakage, and an elegant professional appearance. It supports multiple functions including cooling, heating, humidification, dehumidification, air purification, and noise elimination.

High Reliability: Panels feature double-skin construction with high-density polyurethane injection. The external panel utilizes anti-corrosion color-coated steel, while the internal liner consists of 0.5mm galvanized steel sheet.

Advanced Insulation: Features a patented cold-bridge free design with a polyurethane injection density of 50kg/m³ (thermal conductivity factor K≤0.0201W/m²·K).

High Efficiency Components

• Copper pipe and aluminum fin type heat exchanger with optimized spacing.
• Optimal water circuits design to increase heat exchange efficiency and reduce resistance.
• High-performance centrifugal fans (Class F insulation, IP54 protection) with belt drive for easy maintenance.
• Optional inverter motors (Siemens/ABB) and EC technology availability.
