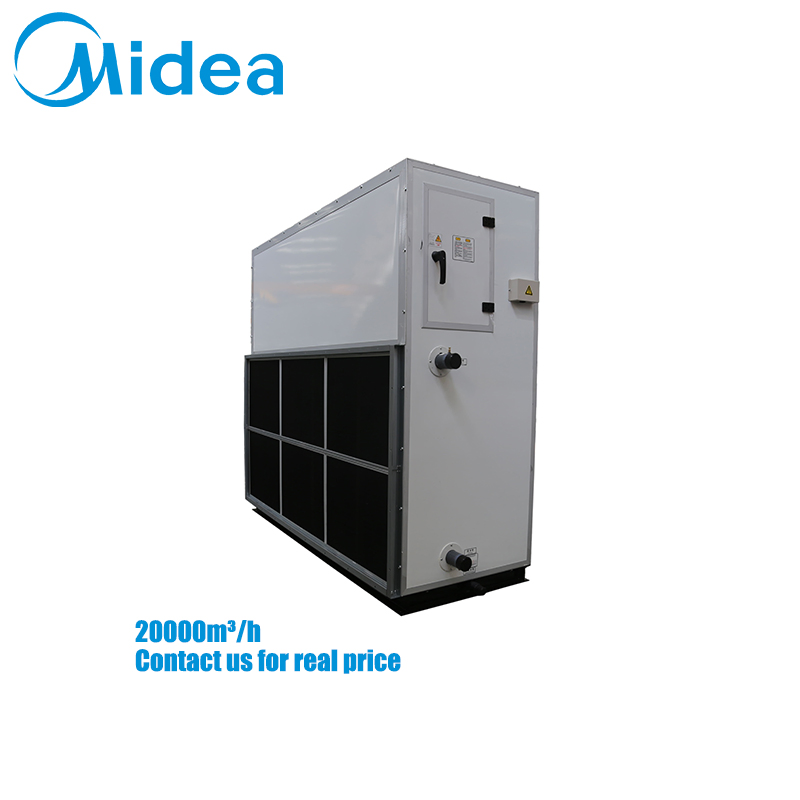

Product Overview

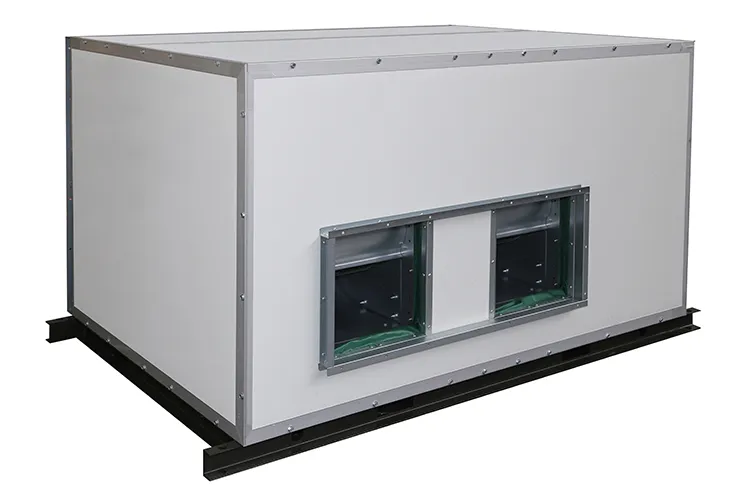

Horizontal Type Air Handling Unit adopts unitary structure design, offering outstanding cold-bridge free performance, lower air leakage, and an elegant appearance. Different external static pressure (ESP) can be customized to meet various application requirements.

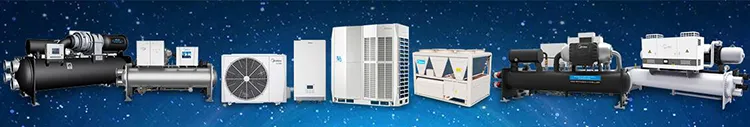

Product Portfolio
Key Advantages

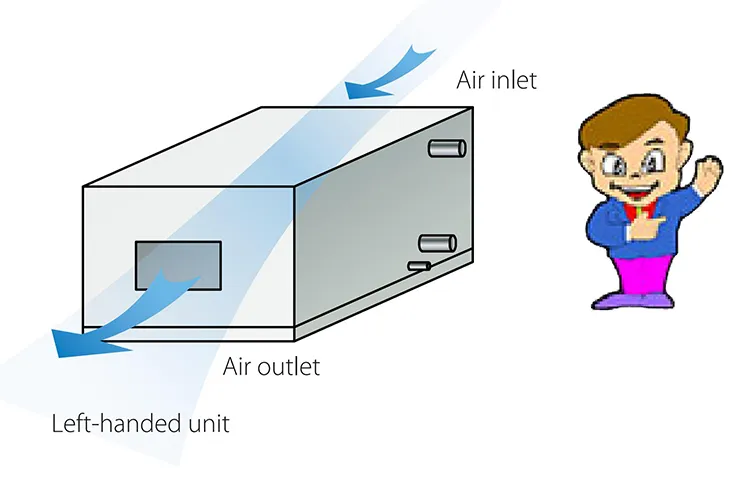

1. Orientation Flexibility
Unit handling orientation is determined by the location of pipe connection while facing the unit in the direction of air flow. Both left-handed and right-handed connections are available.
2. High Strength & Reliability
Panels are double-skin with high-density polyurethane injection. Outer skin is anti-corrosion color-coated steel; inner skin is galvanized steel. Secured with concealed bolts and aluminum alloy cards.

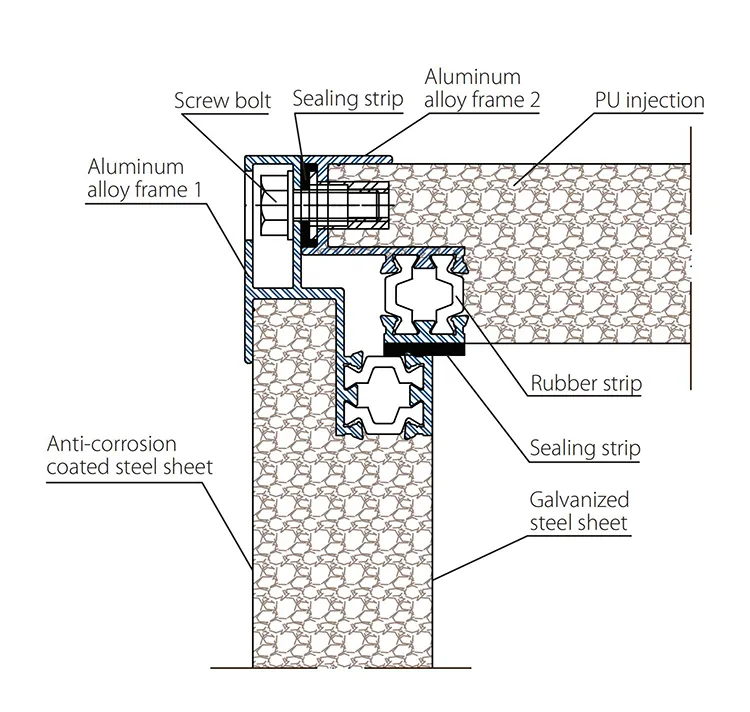

3. Cold-Bridge Free Structure
Polyurethane injection density of 50kg/m³ (thermal conductivity ≤0.0224W/m·K). Features plastic-steel frame service doors with rubber sealing strips to prevent thermal transfer.

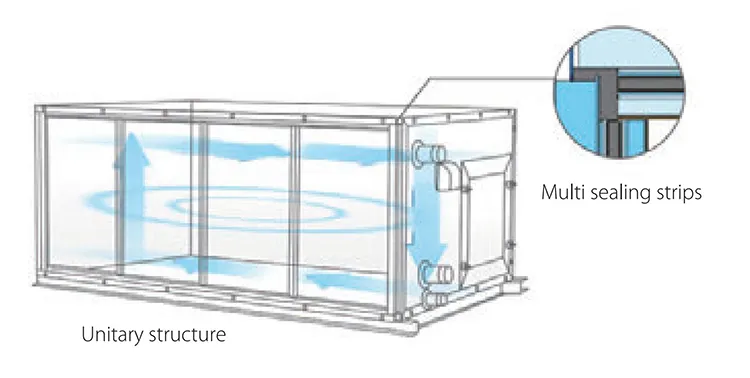

4. Low Air Leakage Rate
Unitary structure design with multi-sealing strips ensures an air leakage rate of less than 0.29%. The unit remains sweat-free even at 27°C with 90% relative humidity.

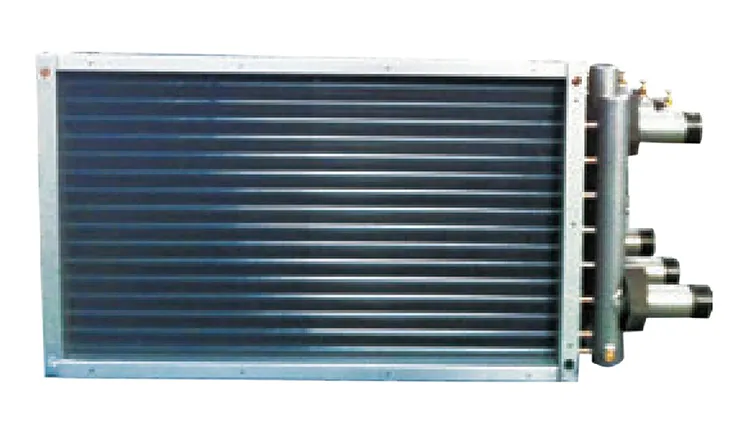

5. High Performance Heat Exchanger
Copper pipe and aluminum fin type with optimal fin spacing. Fins are coated with anti-corrosive layers for longer coil life and lower maintenance costs.
Frequently Asked Questions
What is the range of air volume for this AHU?
The Horizon type AHU supports a wide air volume range from 5,000 to 40,000 m³/h, making it suitable for various large-scale mechanical engineering applications.
Does the unit prevent condensation (sweating)?
Yes, thanks to its outstanding cold-bridge free structure and high-density polyurethane insulation, the unit will not sweat even when the exterior temperature is 27°C with 90% relative humidity.
What are the main construction materials?
The unit utilizes a double-skin panel design. The outer skin is anti-corrosion color-coated steel sheet, while the inner skin is galvanized steel, with high-density polyurethane injected in between.
How reliable is the air leakage control?
The air leakage rate is exceptionally low, specifically less than 0.29%, ensured by unitary structure design and multiple sealing strips on all contact surfaces.
What certifications does this product hold?
Our Air Handling Units are fully certified with RoHS, ISO, CE, and CCC, meeting international standards for safety and quality.
Can the external static pressure (ESP) be customized?
Yes, the external static pressure can be customized within the range of 96-405Pa to meet the specific requirements of different ductwork and applications.
