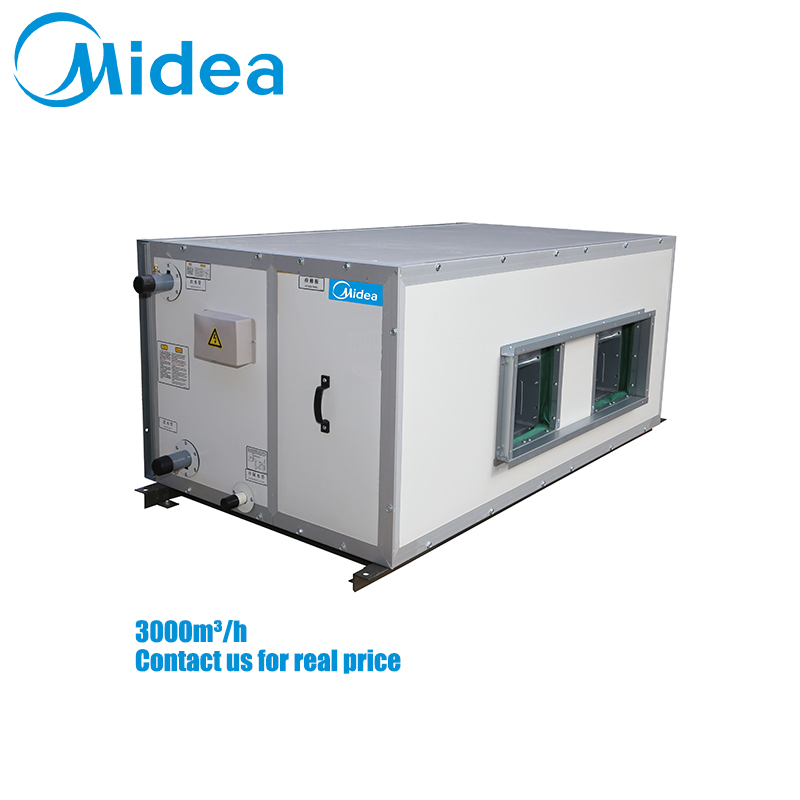

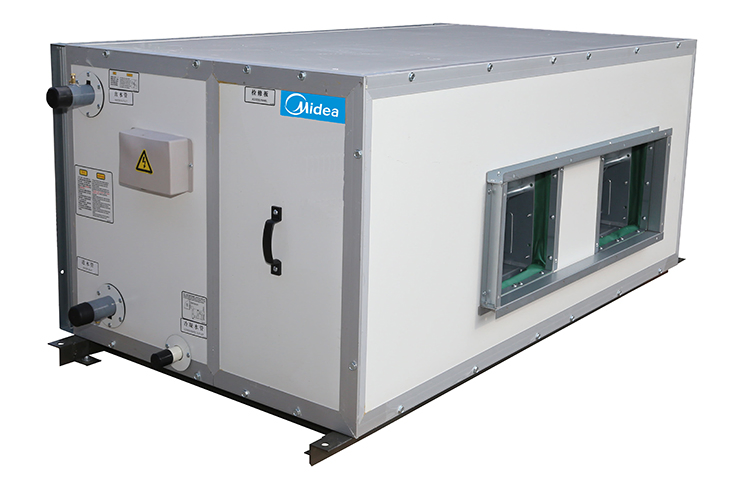

The DX AHU Air Handling Unit (380-415V-3Ph-50Hz) is a high-performance suspended type air condition solution designed for commercial and industrial environments. It features an outstanding cold-bridge free structure and high-strength reliability.
The unit adopts a unitary structure design, providing superior cold-bridge free performance, lower air leakage, and an elegant aesthetic appearance. External static pressure (ESP) can be customized to meet specific application requirements.
| Parameter | Specification Range |
|---|---|
| Air volume | 2000-15000m³/h |
| Rated cooling capacity | 11.2-107.0kw |
| Rated heating capacity | 18.6-169.0kw |
| External static pressure | 67-305Pa |
| Fan motor input | 0.37-5.50kw |
| Water pressure drop | 19-59kpa |
| Drain pipe | DN25 |
| Sound level | 58.0-71.8dB(A) |
| Power supply | 380-415V/3Ph/50Hz |

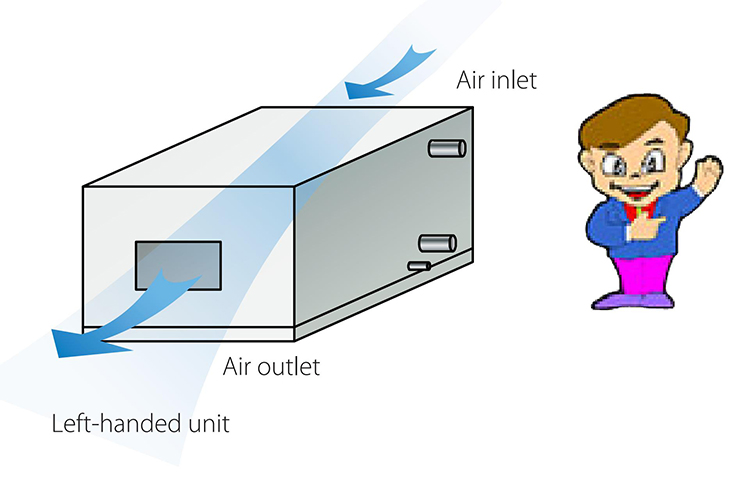

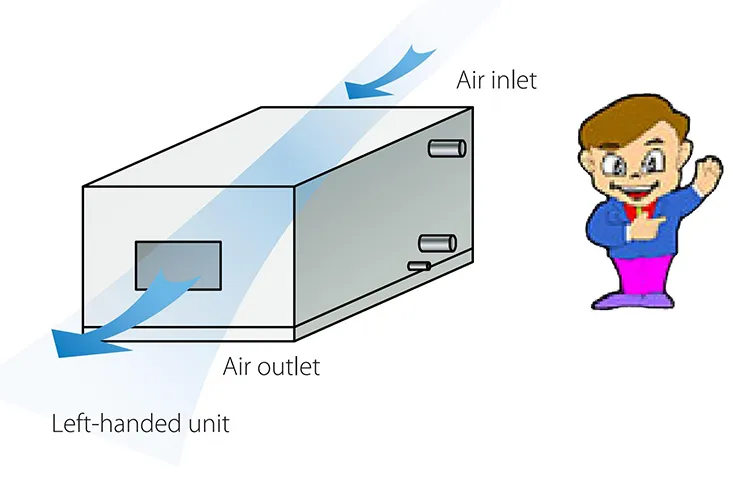

Handling orientation is determined by the location of pipe connections while facing the unit in the direction of air flow, available in both left-handed and right-handed configurations.

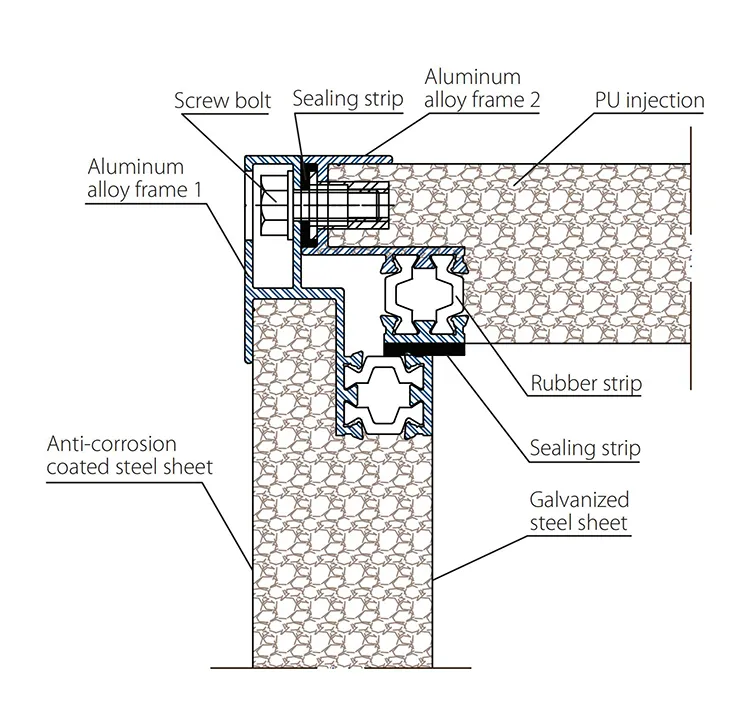

Panels are double-skin with high-density polyurethane injection. The outer skin is anti-corrosion color-coated steel, while the inner skin is galvanized steel, secured with concealed bolts and aluminum alloy cards.
Utilizing high-density polyurethane (50kg/m³), the cabinet ensures a thermal conductivity factor of K≤0.0224W/m·K. Rubber sealing strips and plastic-steel frames prevent thermal leakage.

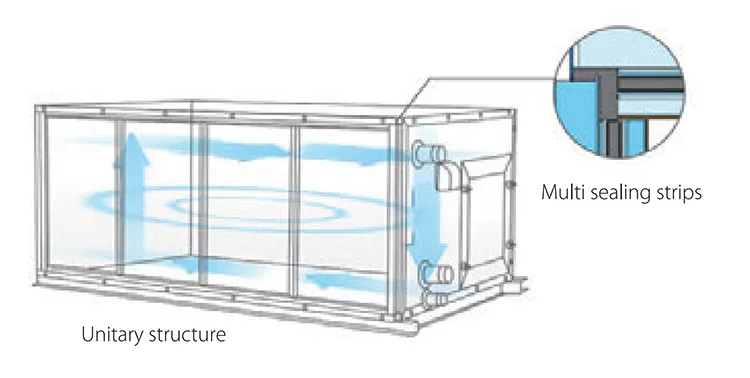

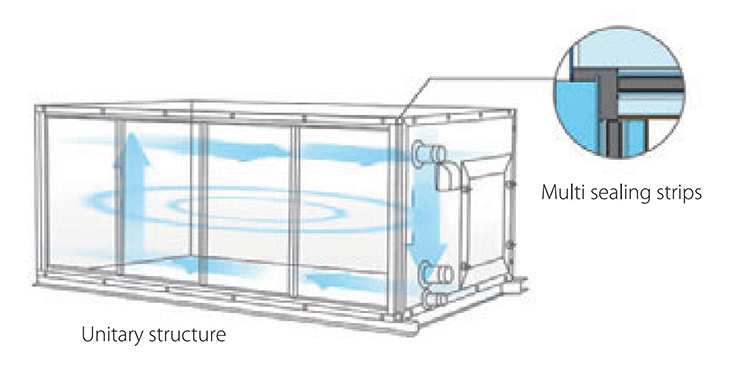

With an air leakage rate of less than 0.29%, the unit prevents sweating even at 90% relative humidity and 27°C room temperature. This ensures maximum air delivery to the conditioned space.

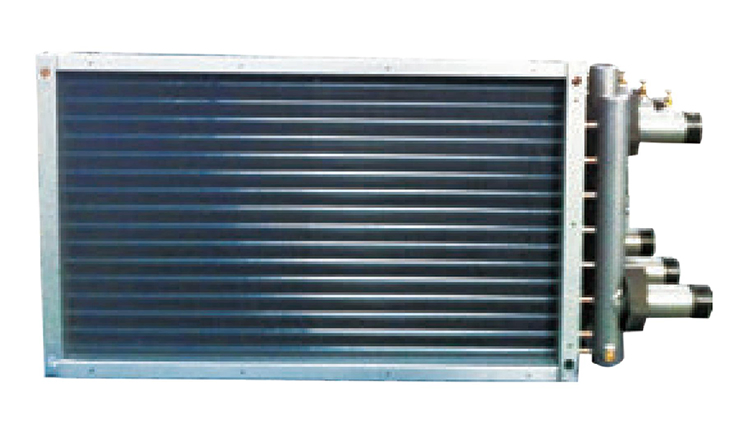

Equipped with copper pipes and aluminum fins with anti-corrosive coatings. Optimal water circuit design increases exchange efficiency while decreasing water resistance.
