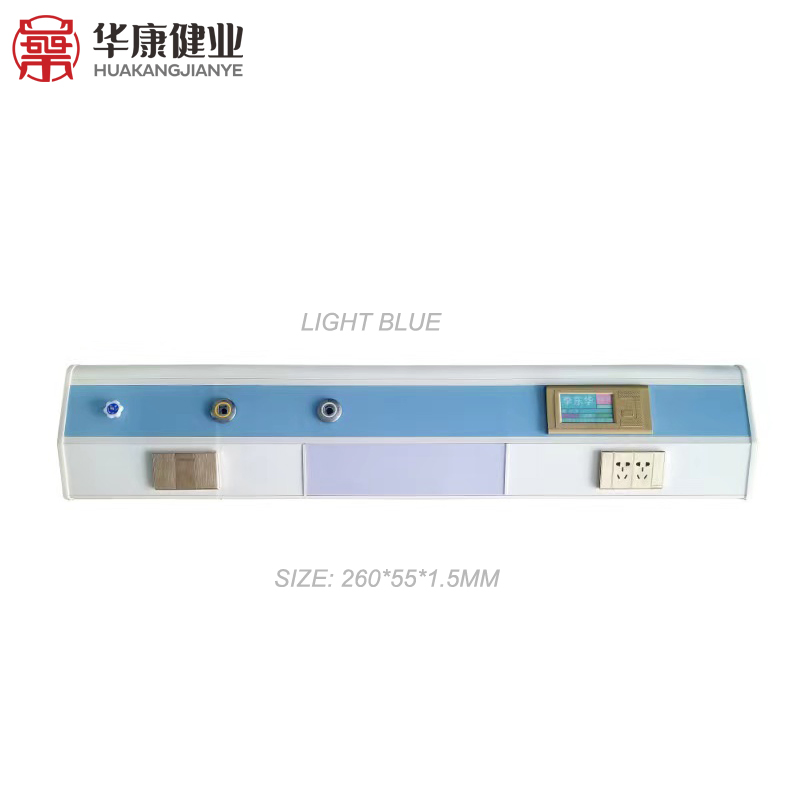

Medical Equipment Wall Type Units Modular Wall Panel Bed Head Unit System

Basic Information

Model NO.

HKBH-013

Scale

Large

Type

Devices Strip

Style

Modern

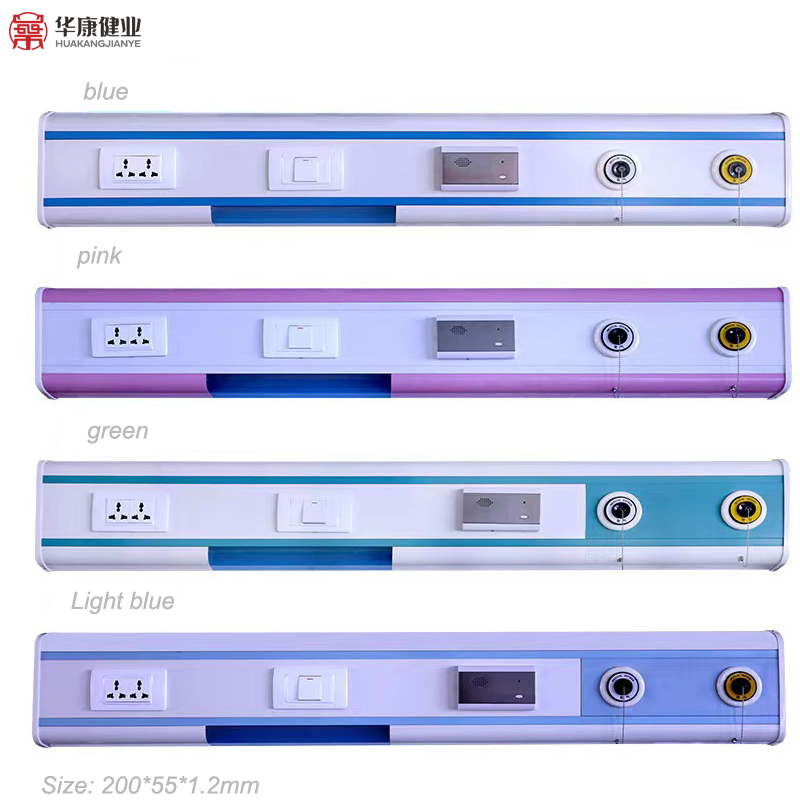

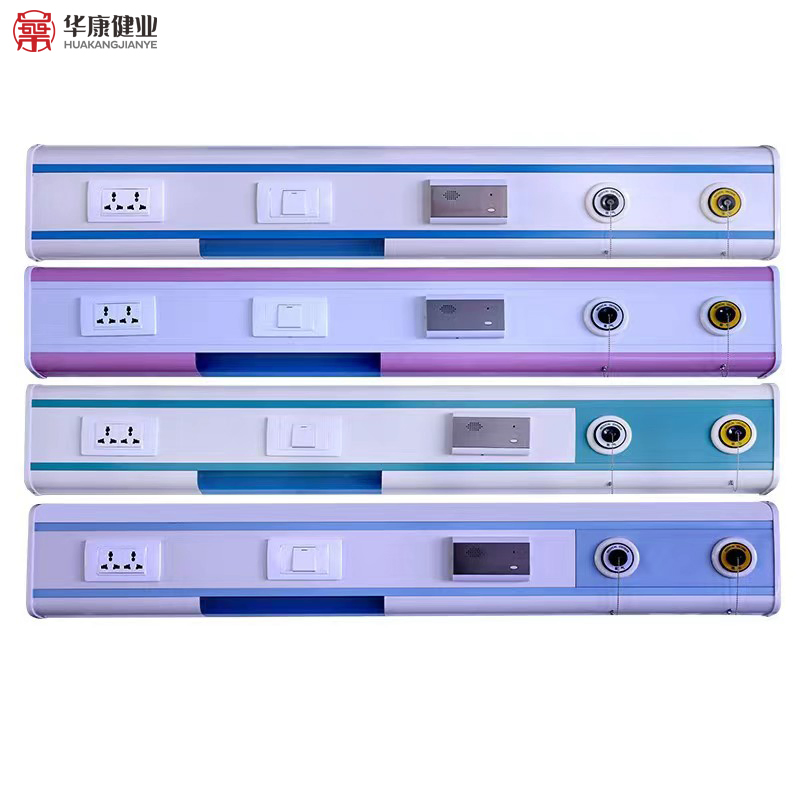

Color

White or Customized

Application

Hospital Clinic

Function

Emergency Care

Transport Package

Wooden Box

Specification

Customize

HS Code

76169990

Production Capacity

10000PCS/Month

Product Description

ICU Bed Head Unit Details

The ICU Bed Head Unit is made of heat treated extruded aluminum profiles to prevent scratching products, designed specifically to meet the needs of patient's ward. For ICU wards, it includes an increased slide rail for convenient installation of brackets and infusion racks. This unit integrates a variety of functions to facilitate hospital workflow.

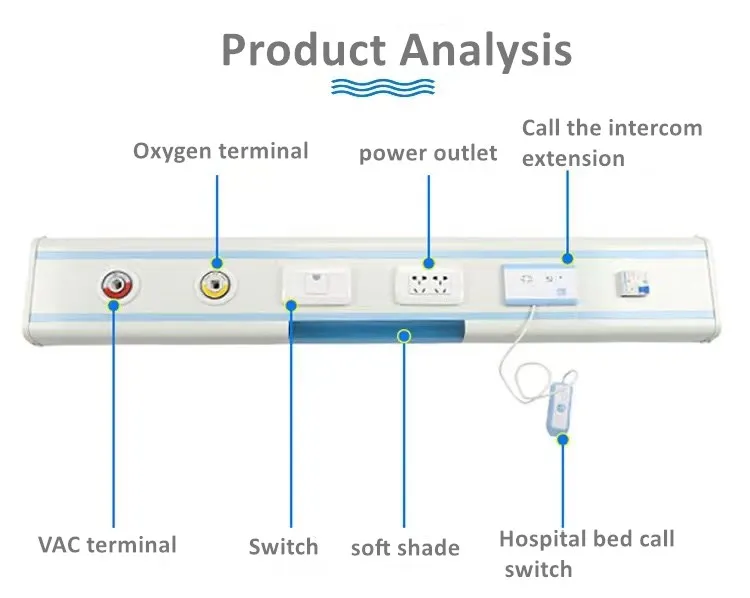

The bed head unit provides separate compartments for medical gases and electrical services. It is mounted to the wall by expansion screws. The gas compartment is ventilated to prevent buildup inside the unit. Modular accessories allow for full customization of the ward workflow.

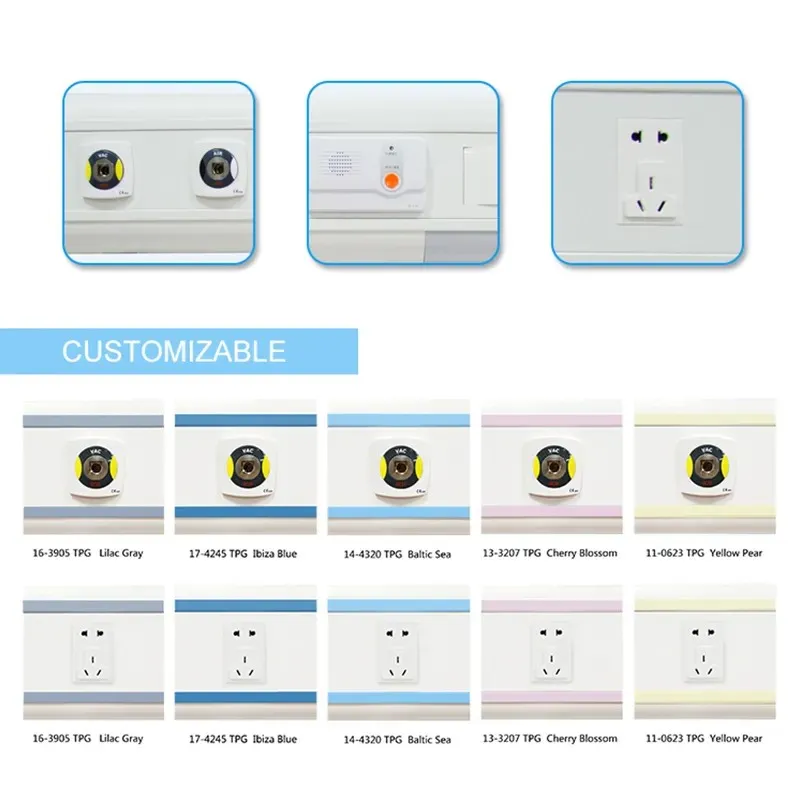

Customizable Options:

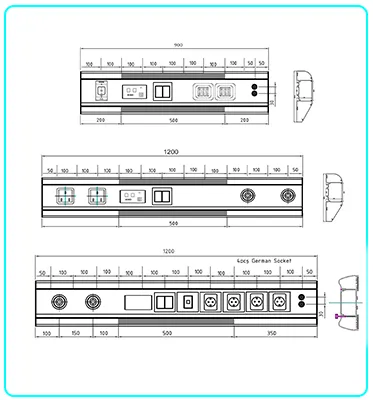

Number of beds and length according to request
Number and type of medical gas outlets
Number and type of power sockets
Communication plugs (Network port, phone, etc.)

Technical Specifications

Feature / Model	HKBH-001	HKBH-002	HKBH-003
Medical rails	Single rail	Double rail	No rail
Height * Depth	260mm*60mm	220mm*68mm	200mm*60mm
Lighting	Direct, indirect, night	Direct, indirect, night	Direct, indirect, night
Power supply	24V, 110V, 220~230V, 50~60Hz
Gas outlets	DIN, AFNOR, BS, JIS, DISS, OHMEDA, CHEMETRON

1.2mm to 2.0mm thickness aluminum profiles
Length designed according to request

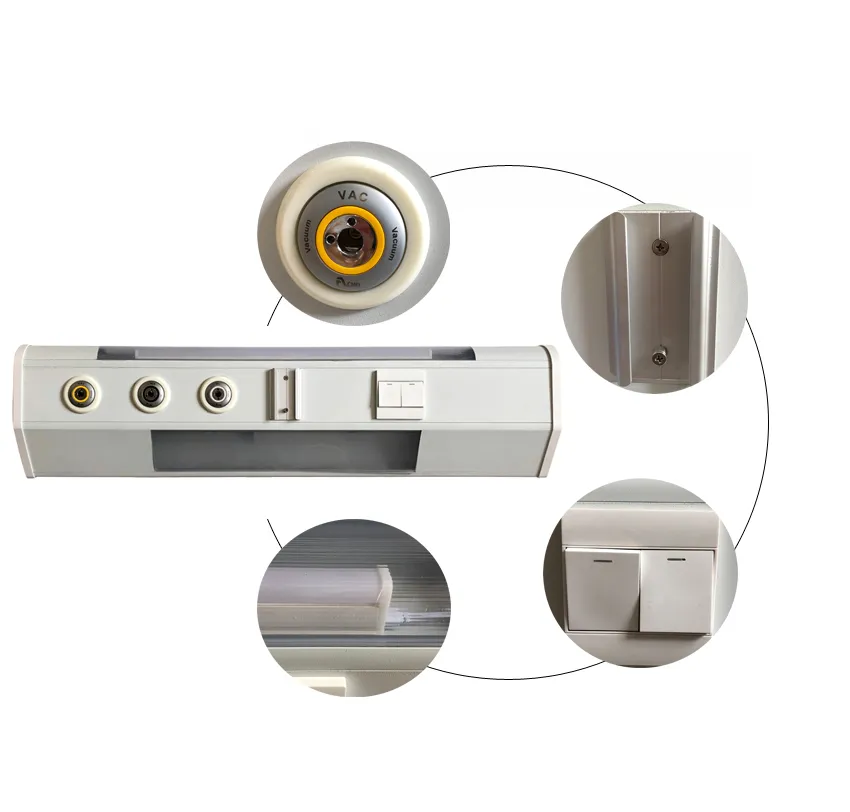

Integrated medical gas outlets, electric sockets, and lamps
LED or fluorescent lighting options available
Perfect optical design for lighting control

High strength aluminum alloy thickness 2mm for outstanding durability. Modular design allows for specific customizations such as different standard electrical outlets and gas terminal units.

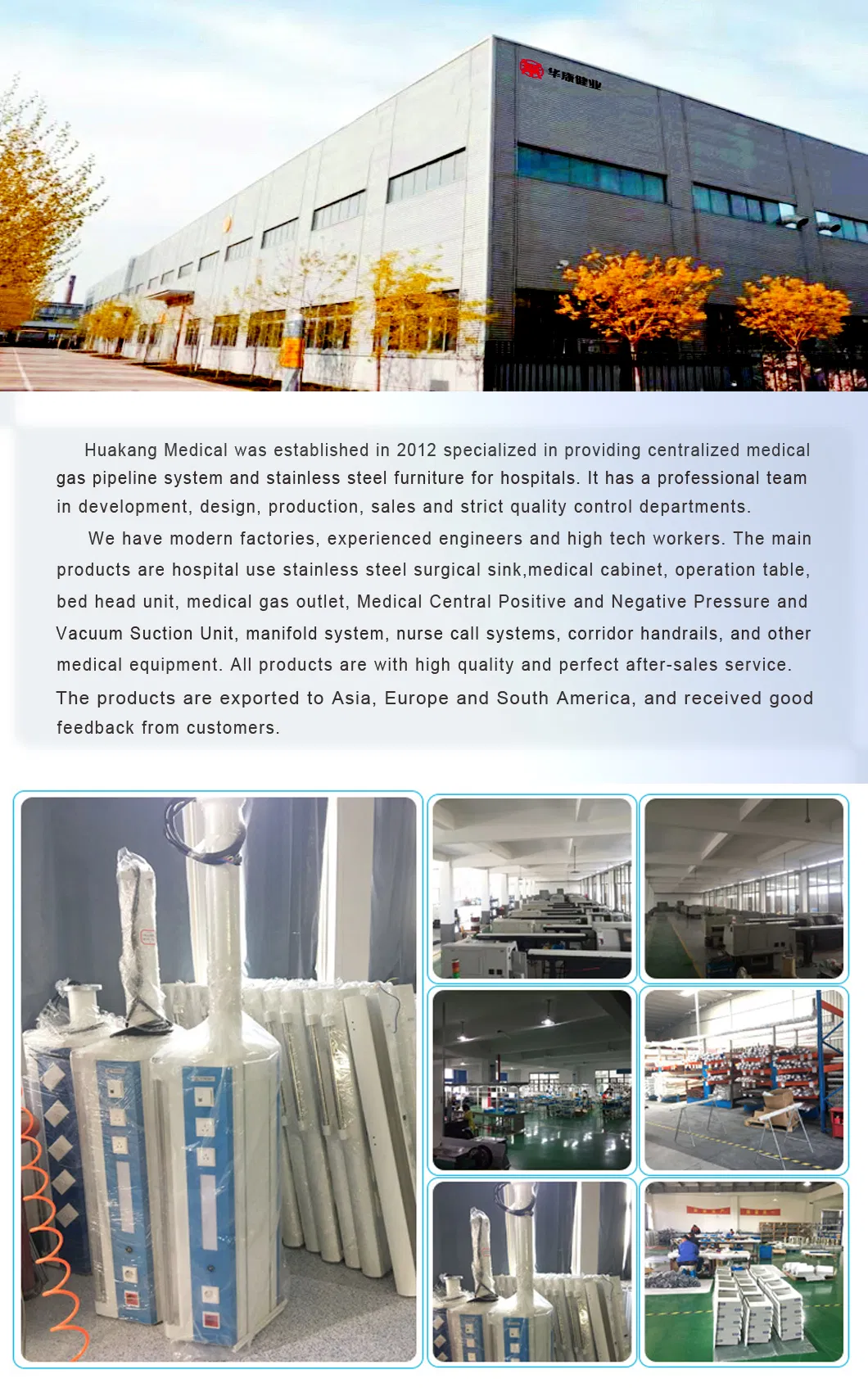

Manufacturing & Quality

Frequently Asked Questions

How do you ensure product quality?

We have a professional quality control department to inspect each product from components to the finished product.

What is the typical lead time for orders?

Production usually takes 20 to 30 days, depending on the order scale and specific customization requirements.

What kind of after-sales support do you offer?

We provide 24-hour online technical support via email, phone, and video to assist with any operational or installation queries.

What are the available payment and delivery terms?

We accept T/T, L/C, and Credit Cards. Delivery terms include EXW, FOB, CFR, CIF, and DDU.

In which regions are your products primarily used?

Our products are exported to over 50 countries. Key markets include Asia, Europe, and North America, with a growing presence in South America, the Middle East, and Africa.

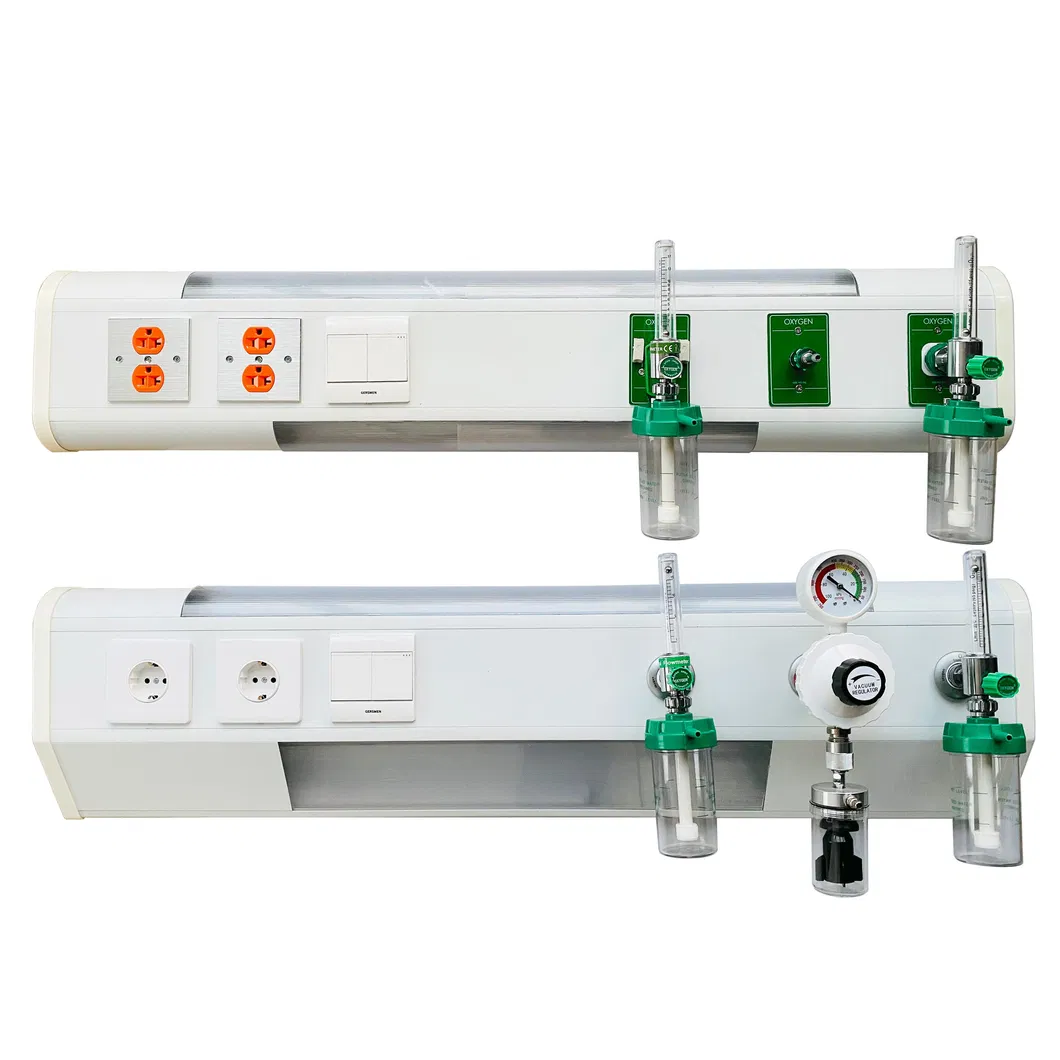

Can the gas outlets and electrical sockets be customized?

Yes, we provide gas outlets and electrical sockets according to various international standards, including British and American standards.
