| Model NO. | GK-100-AI4 | Mathematical Model | Data Collect |
| Signal | Continuous | Function | Data Transmission |
| Certification | RoHS, ISO: 9001, CE | Condition | New |
| Material | Engineering Plastics | Products Name | Analog Input Module |
| Channel No | 4 Channels | Voltage Input | ±10VDC/±5VDC/ 0~5VDC/0~10VDC |
| Current Input | 0~20mA/4~20mA | Resolution | 23 Bit |
| Sample Speed | 160sps | Work Temperature | -40~85℃ |
| Protection Class | IP20 | Specification | 120*15*75mm |

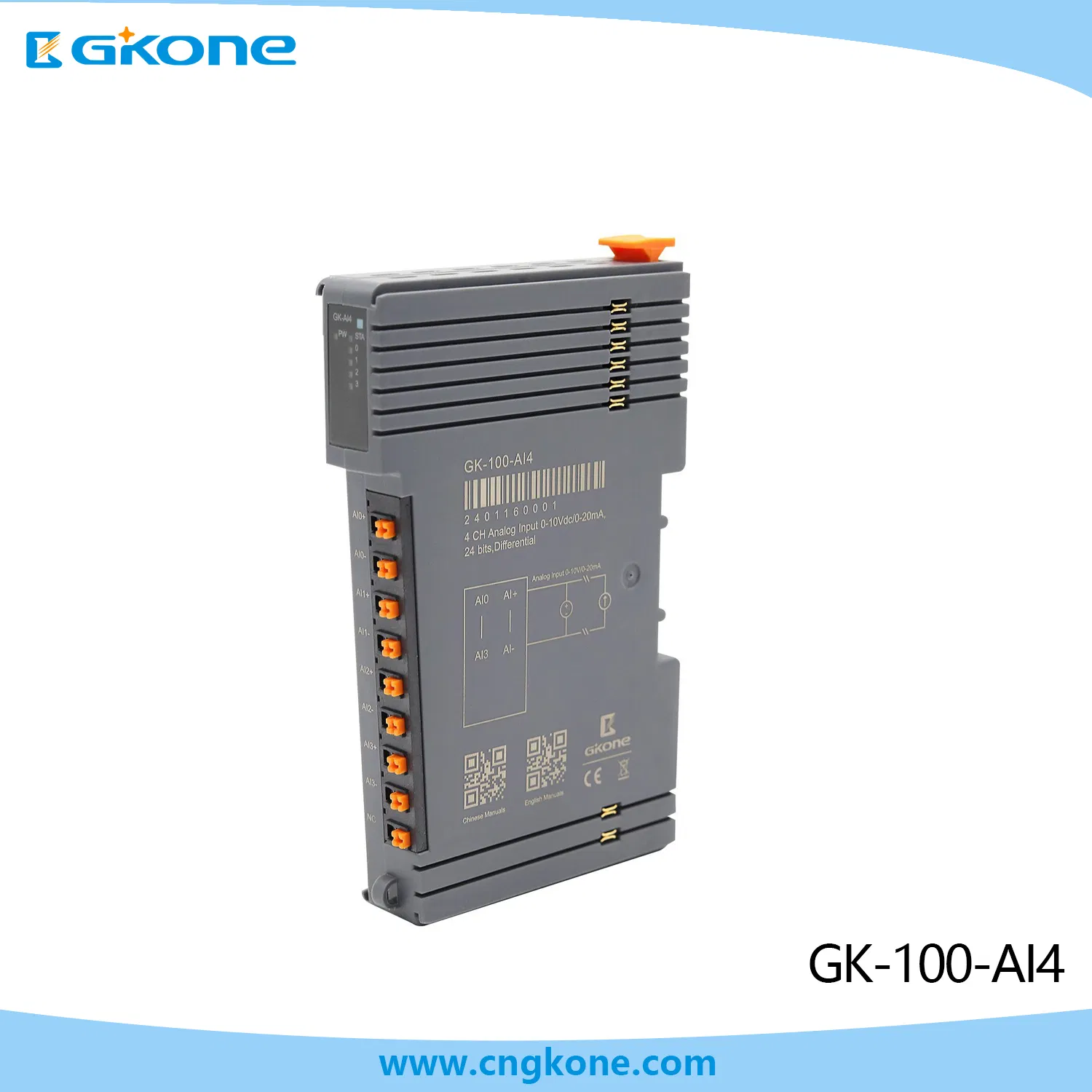

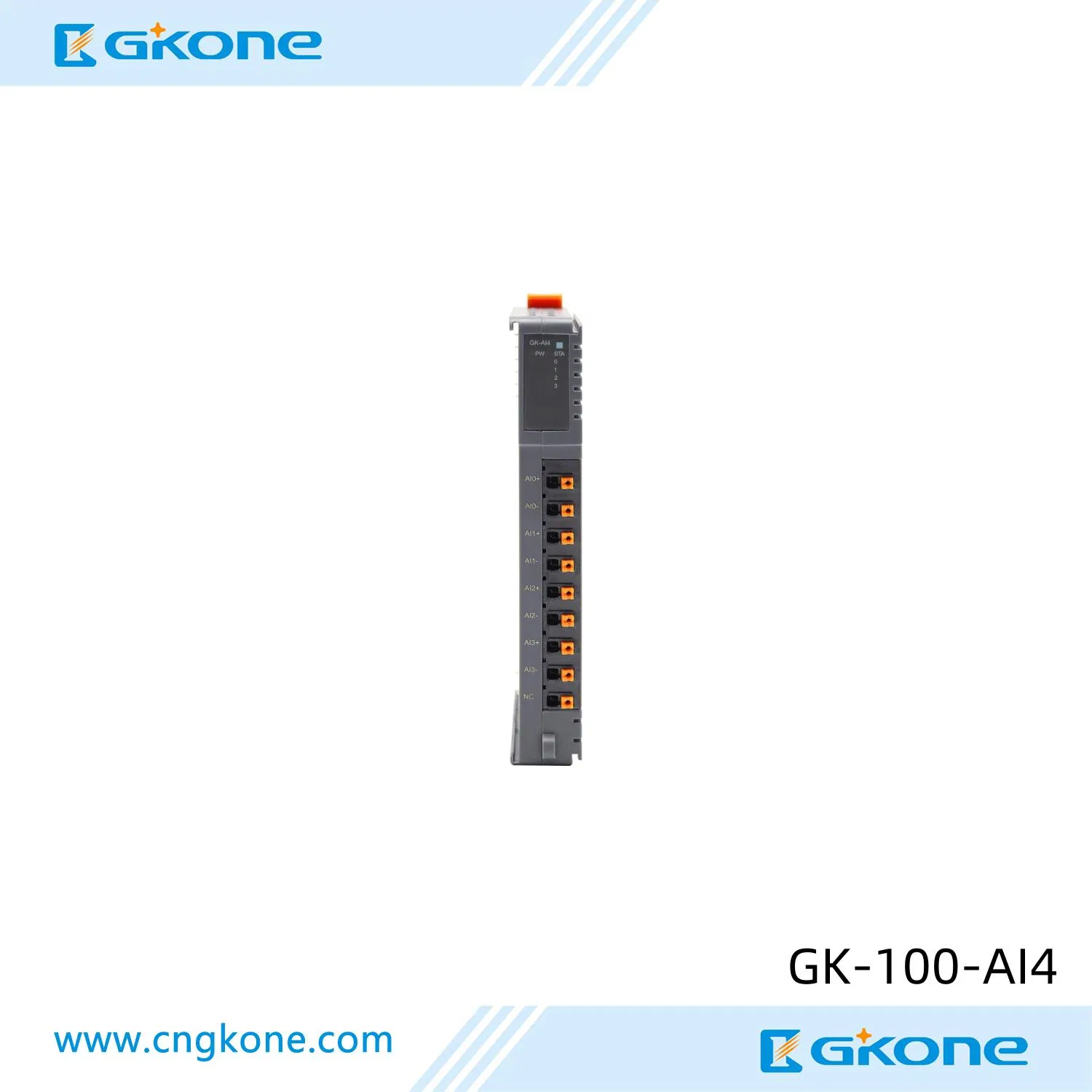

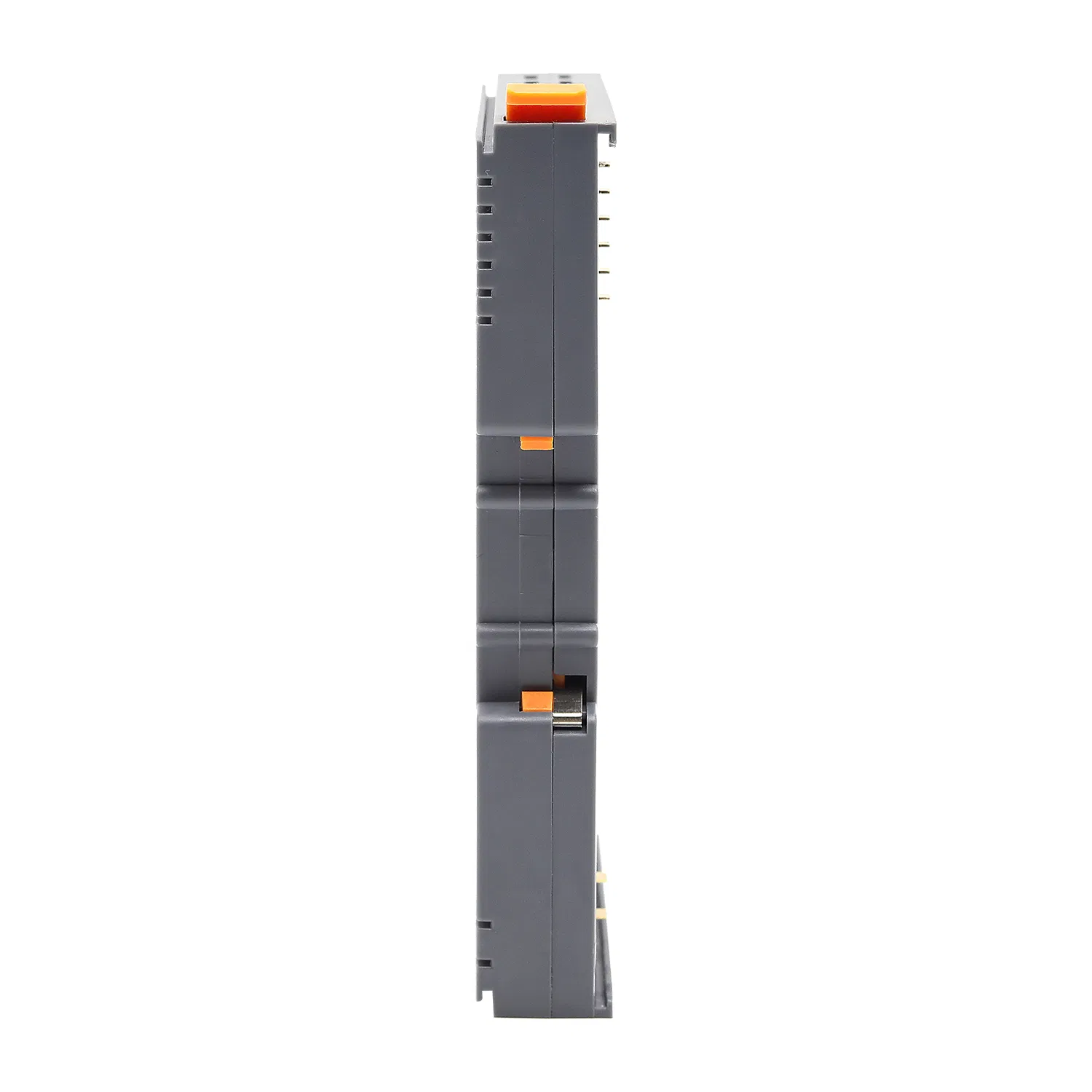

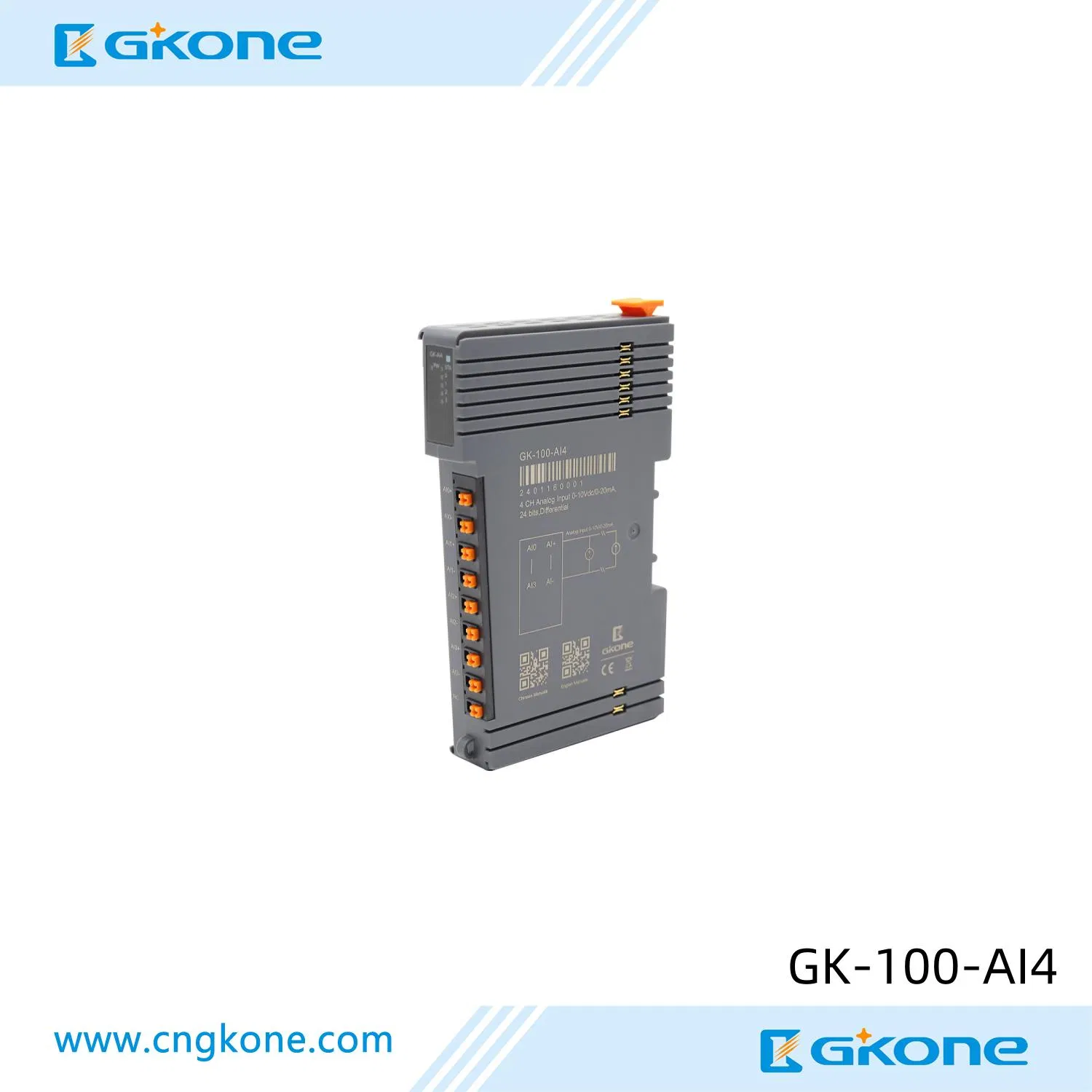

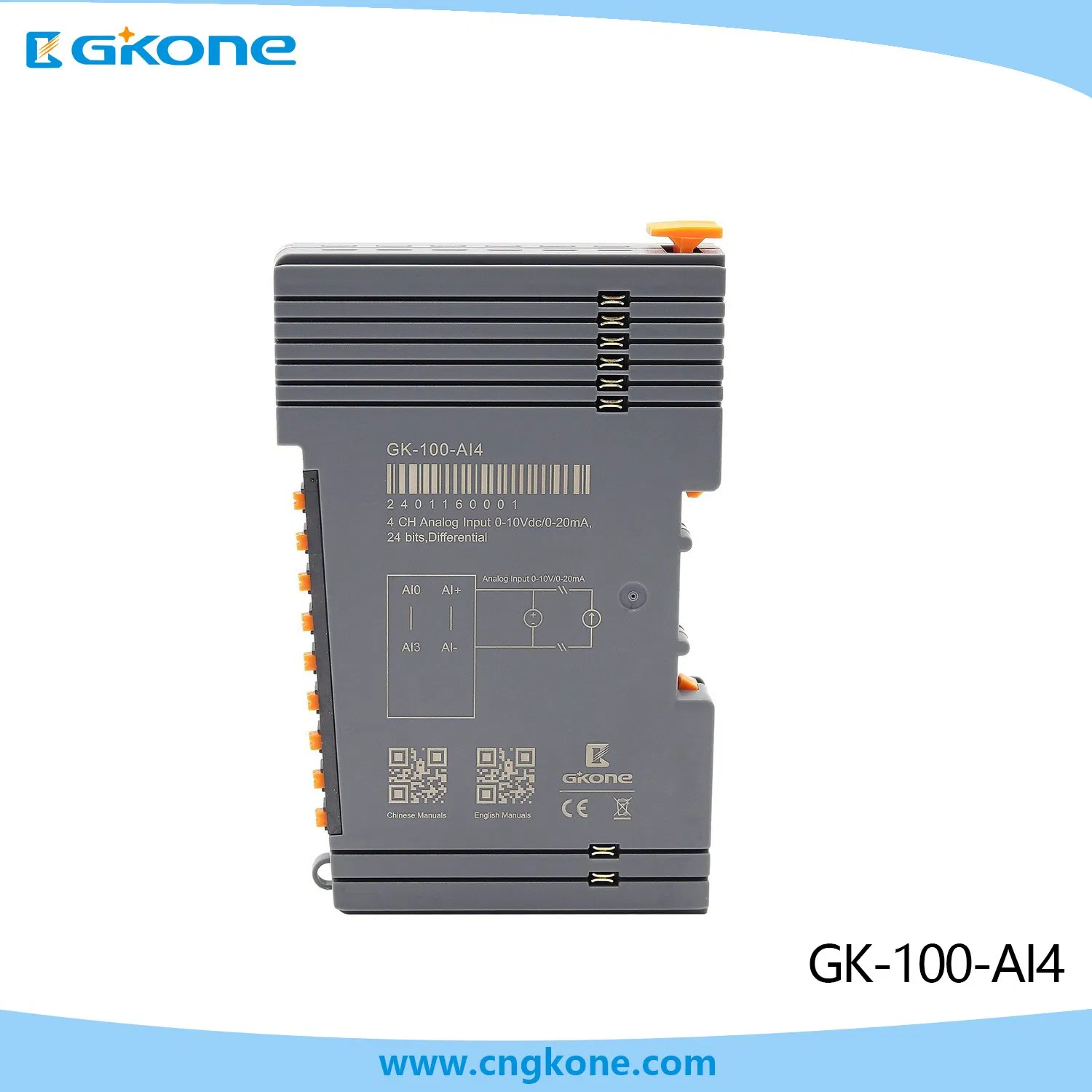

Advanced High-Performance 4 Channel Analog Input Module Solution GK-100-AI4
Industrial high-precision signal acquisition module with metal shielded housing and 24-bit high-resolution ADC chip. Supports synchronous acquisition of 4-channel analog signals, electrical isolation, and anti-interference processing, suitable for precise monitoring and system integration of process variables such as temperature and pressure.
1ms refresh rates and swift reaction times for unparalleled control and accuracy.
Wide temperature range and vibration resistance with IP20 rating for harsh environments.
Meticulously crafted for compatibility with STEP7 and WinPLC7. Effortless upgrades without CPU replacement.
Integrated fault LEDs and advanced backplane isolation to keep production lines running smoothly.
| Basic Parameters | |
| Isolate | I/O to internal bus: Isolation (3KVrms) Power isolation: DC-DC |
| Wiring | Max. 1.0mm² (AWG17) |

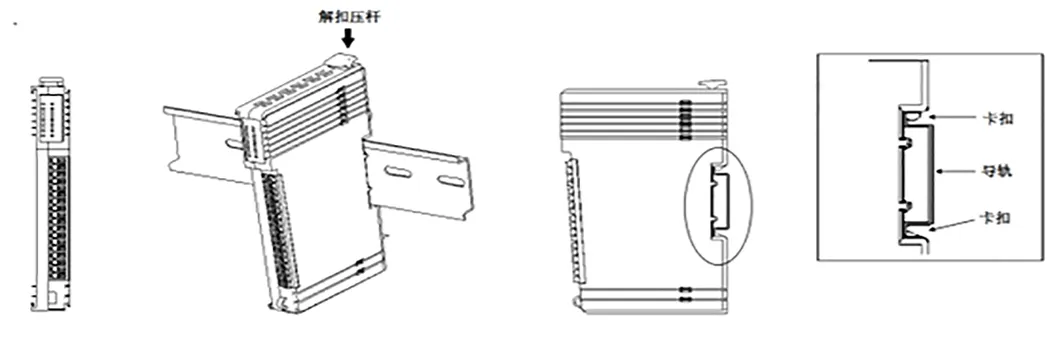

| Installation | 35mm DIN-rail mounting |
| Input Parameters | |

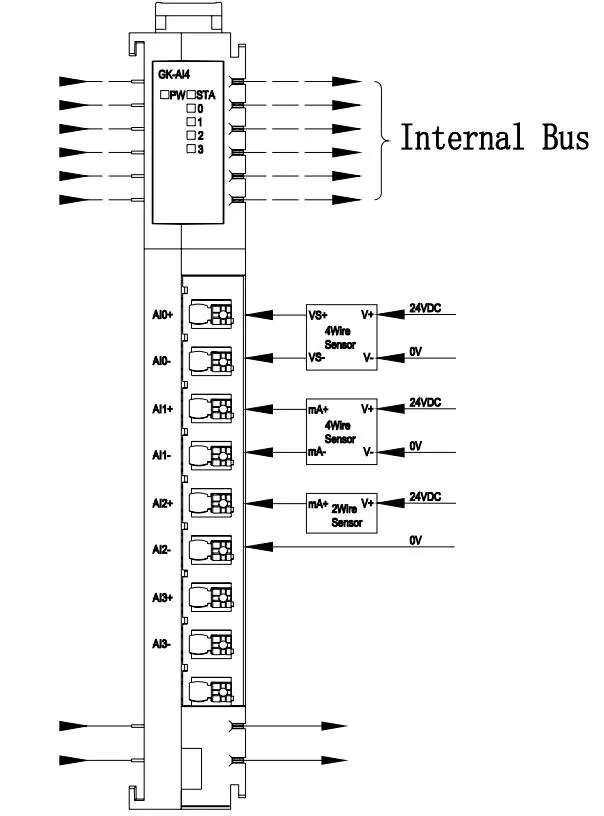

| Channels | 4 channels (voltage or current) |
| Input Range | ±10V/±5V/0~5V/0~10VDC, 0-20mA/4-20mA |
| Resolution | 24-bit |
| Accuracy | ±0.3% FS @25ºC | ±0.5% FS @-20~70ºC |
| Environmental | |
| Temp/Humidity | -40~85ºC | 5%-95% No Condensation |
| Serial | Description | Model |
|---|---|---|
| 1 | PROFINET adapter | GK-100-PNRT |
| 2 | EtherCAT adapter | GK-100-ECTRT |
| 3 | 8-channel digital input (PNP) | GK-100-08DIP |
| 5 | 16-channel digital input (PNP) | GK-100-16DIP |
| 7 | 16-channel digital output (PNP) | GK-100-16DOP |
Our facility is a beacon of technological prowess, excelling in providing revolutionary solutions in industrial automation systems. With ISO9001, ISO14001, and ISO45001 certifications, our production process meets stringent international standards.

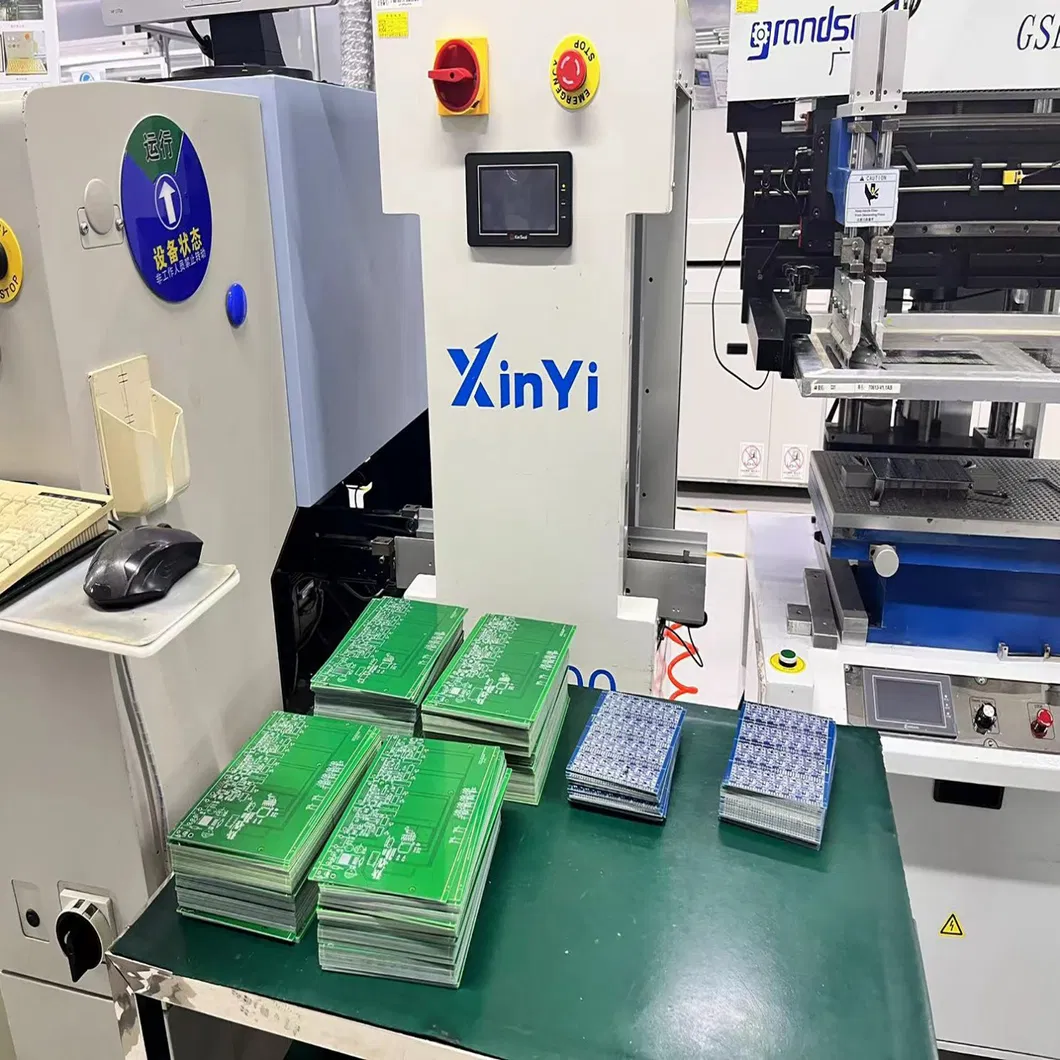

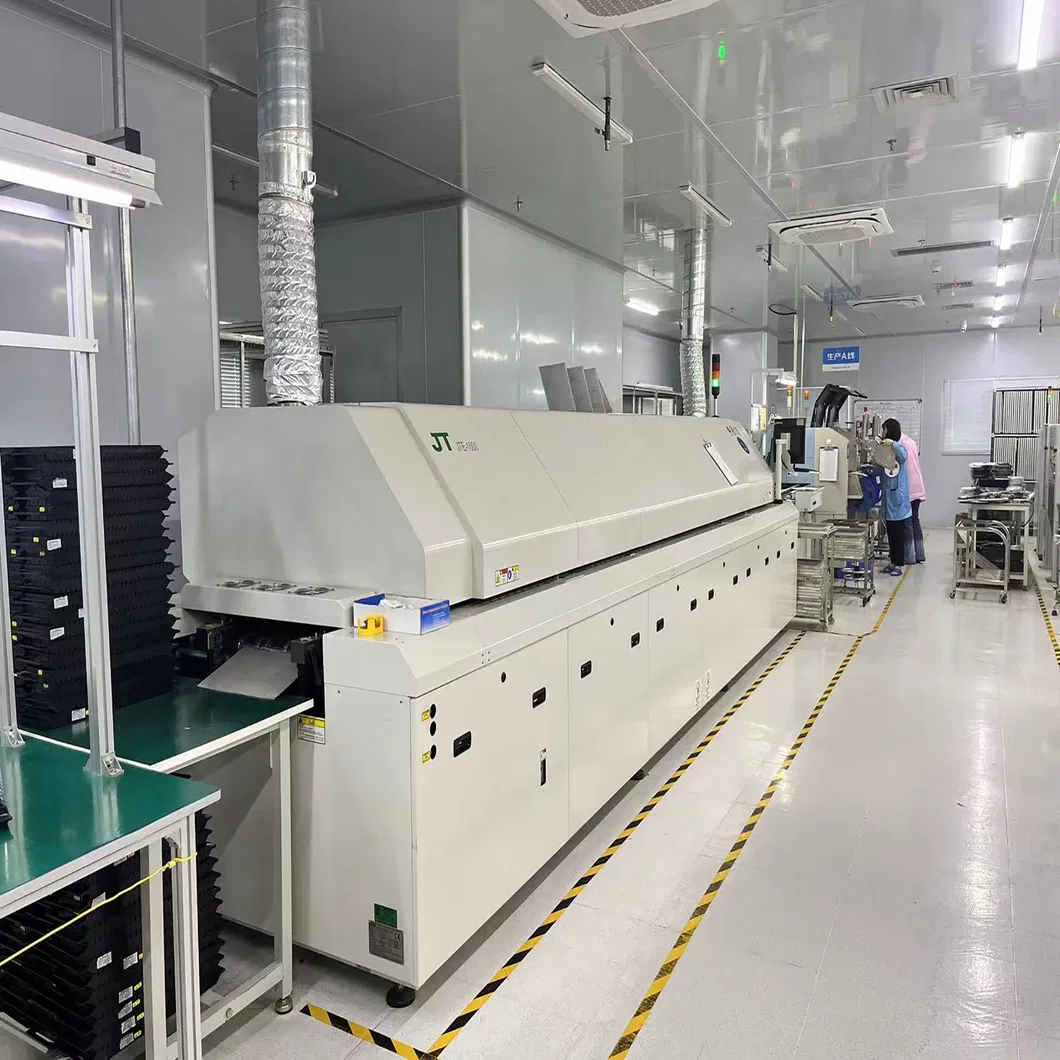

PCB Production & Assembly

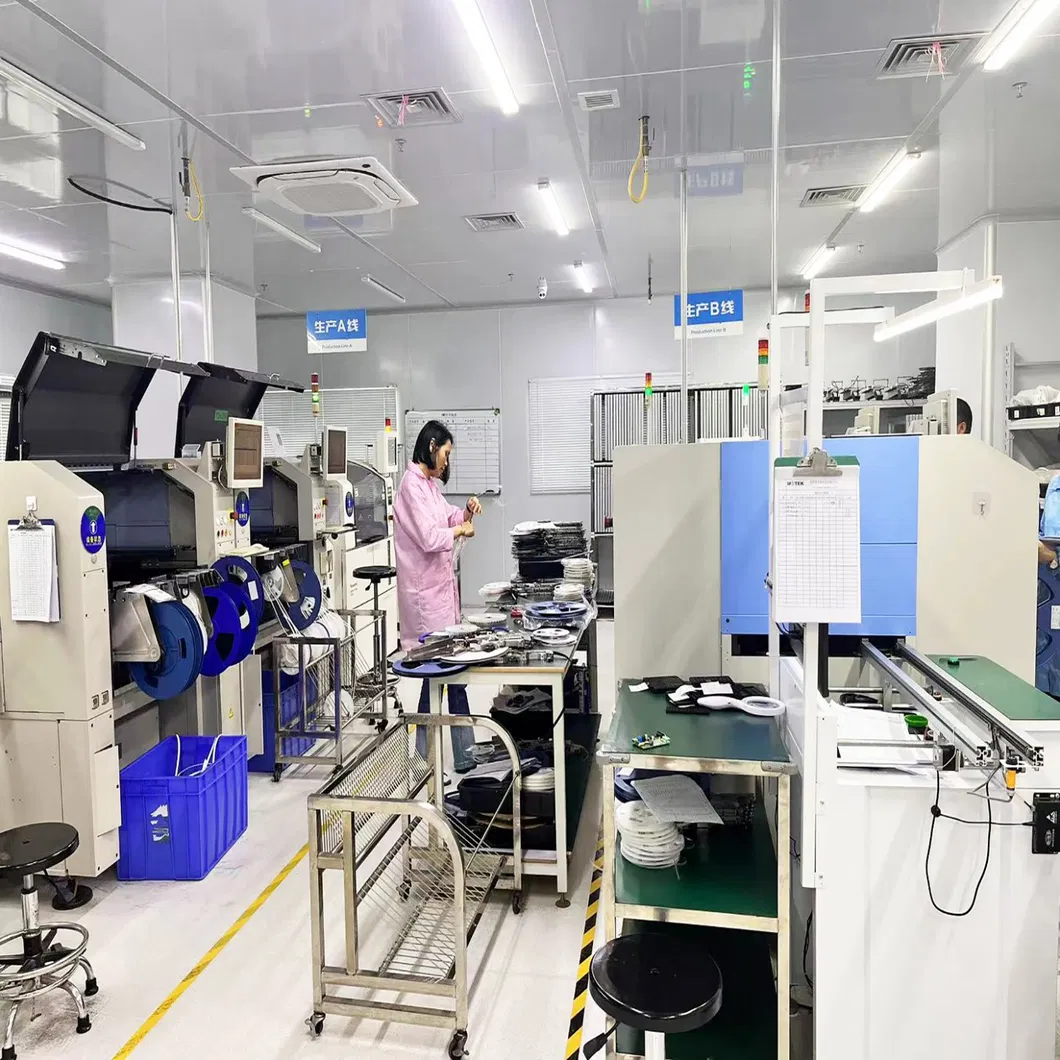

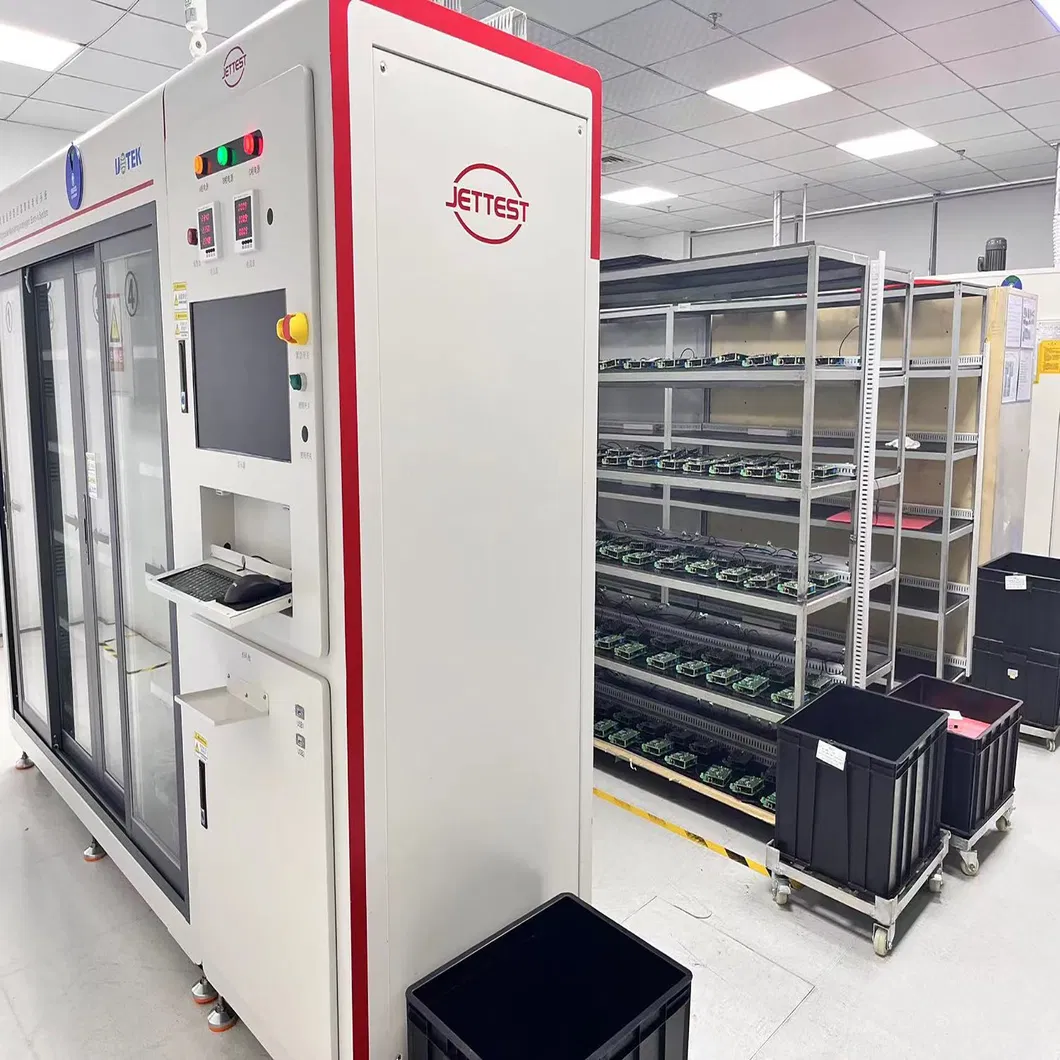

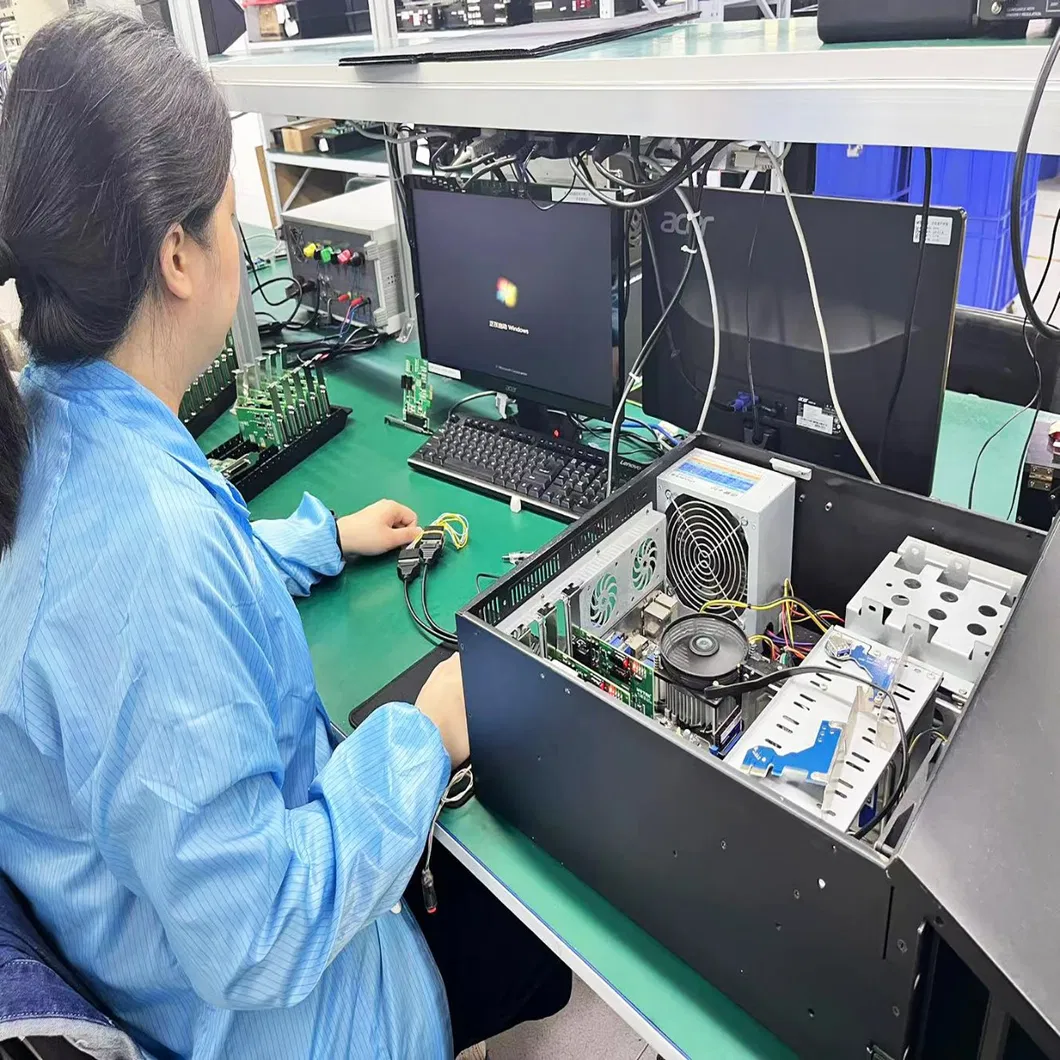

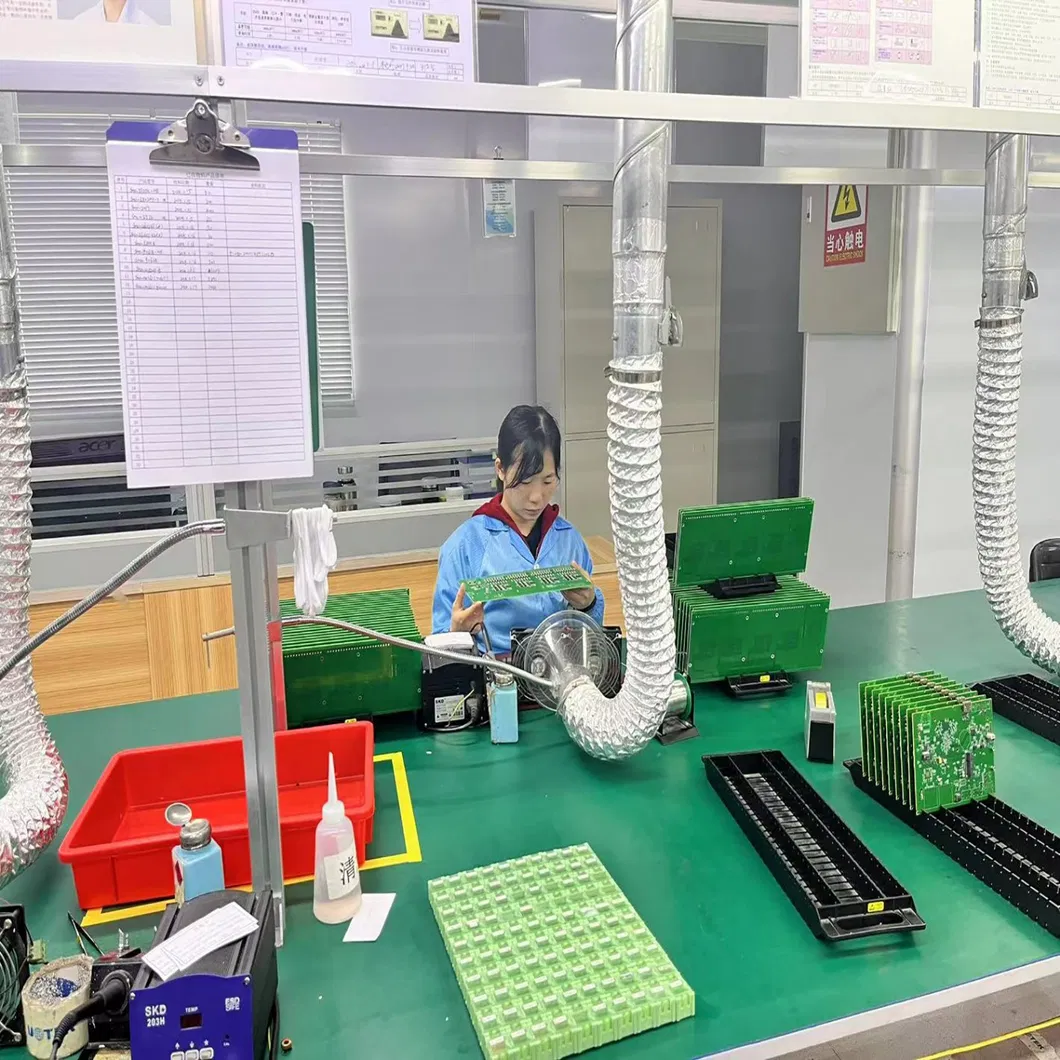

Quality Assurance
We implement a meticulous journey of visual inspections, cutting-edge computer testing, and comprehensive anti-aging evaluations post-production to guarantee unparalleled reliability.
